DX 148 BF (966664101) - Dixon 48" Zero-Turn Mower (2013-07) IGNITION SYSTEM Parts Diagram

48" Zero-Turn Mower

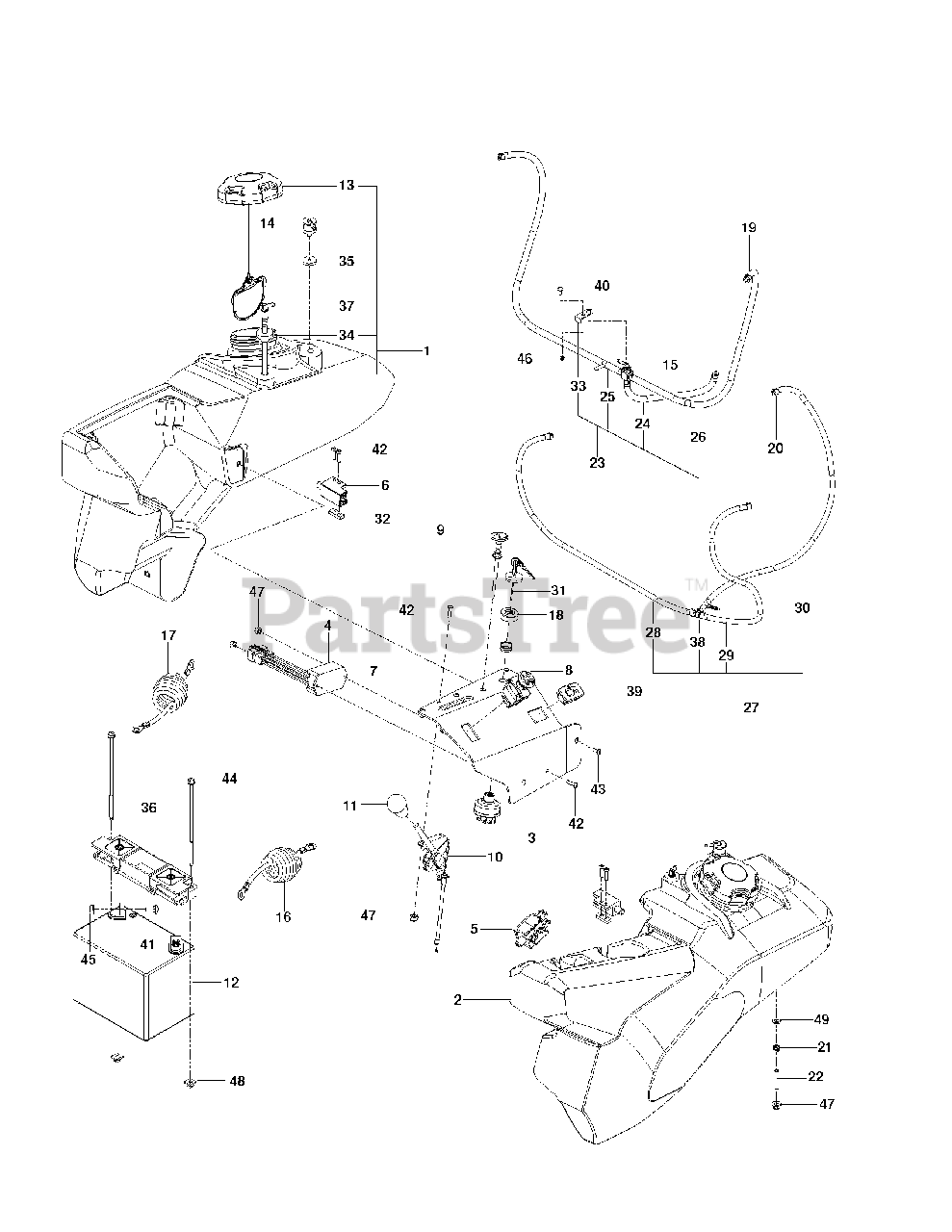

IGNITION SYSTEM Parts Diagram

  • Title

1

Dixon 584280402

No Description Available

$376.99

$

Usually ships in 3-10 days

0

2

Dixon 584280302

No Description Available
(Superseded to 589997302)

$423.99

$

Usually ships in 3-10 days

0

3

Dixon 529280203

PANEL, CONTROL GAS BLACK

$

$

Not available

4

Dixon 574514001

TIMER, SEAT

$120.99

$

In Stock, only 1 left!

0

5

Dixon 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

6

Dixon 532109553

No Description Available
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

7

Dixon 574455401

SWITCH, IGNITION, INDAK

$34.99

$

Usually ships in 3-10 days

0

8

Dixon 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

9

Dixon 574206903

CABLE, CHOKE, 38
(Superseded to 531077201)

$13.99

$

Usually ships in 3-10 days

0

10

Dixon 574207003

CABLE, THROTTLE, 38

$

$

Not available

11

Dixon 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

12

Dixon 539102436

OBSOLETE - BATTERY, 12 V 330 AMP TBR
(Superseded to 579411601)

$

$

Not available

13

Dixon 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

14

Dixon 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 13

0

15

Dixon 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

16

Dixon 539104974

POST.CABLE LONG

$

$

Not available

17

Dixon 539107645

NEG. CABLE, 28"

$40.99

$

Usually ships in 3-10 days

0

18

Dixon 539103178

OBSOLETE - CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

19

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

20

Dixon 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

21

Dixon 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

22

Dixon 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

23

577527701

No Description Available

$

$

Not available

24

Dixon 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

25

577103903

No Description Available

$

$

Not available

26

Dixon 539110424

FUEL LINE 24"
(Superseded to 539107765)

$7.99

$

In Stock, only 2 left!

0

27

576967801

No Description Available

$

$

Not available

28

Dixon 575437802

FUEL LINE 33"
(Superseded to 575437801)

$14.99

$

Usually ships in 3-10 days

0

29

Dixon 576660608

No Description Available
(Superseded to 587044527)

$4.99

$

Usually ships in 3-10 days

0

30

Dixon 576660609

No Description Available

$10.99

$

Usually ships in 3-10 days

0

31

Dixon 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

32

Dixon 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

33

Dixon 577104003

BRACKET FUEL VALVE

$

$

Not available

34

Dixon 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 12

0

35

Dixon 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 5

0

36

Dixon 539107628

BATTERY HOLD DOWN

$10.99

$

In Stock, only 1 left!

0

37

Dixon 525865401

No Description Available

$34.99

$

Usually ships in 3-10 days

0

38

Dixon 574206602

No Description Available

$3.49

$

In Stock, only 1 left!

0

39

Dixon 576179401

HOUR METER

$34.99

$

In Stock, Qty 6

0

40

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

41

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

42

Dixon 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

43

Dixon 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

44

Dixon 539107632

BOLT - 1/4-20 X 7.5

$

$

Not available

45

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

46

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

47

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

48

Dixon 539107629

PUSH NUT-NYLON

$4.99

$

In Stock, Qty 7

0

49

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

Dixon 575320901

HARNESS, MAIN

Note: NOT SHOWN

$206.99

$

In Stock, only 1 left!

0
