DX 148 BF (966664101) - Dixon 48" Zero-Turn Mower (2012-01) STEERING Parts Diagram

48" Zero-Turn Mower

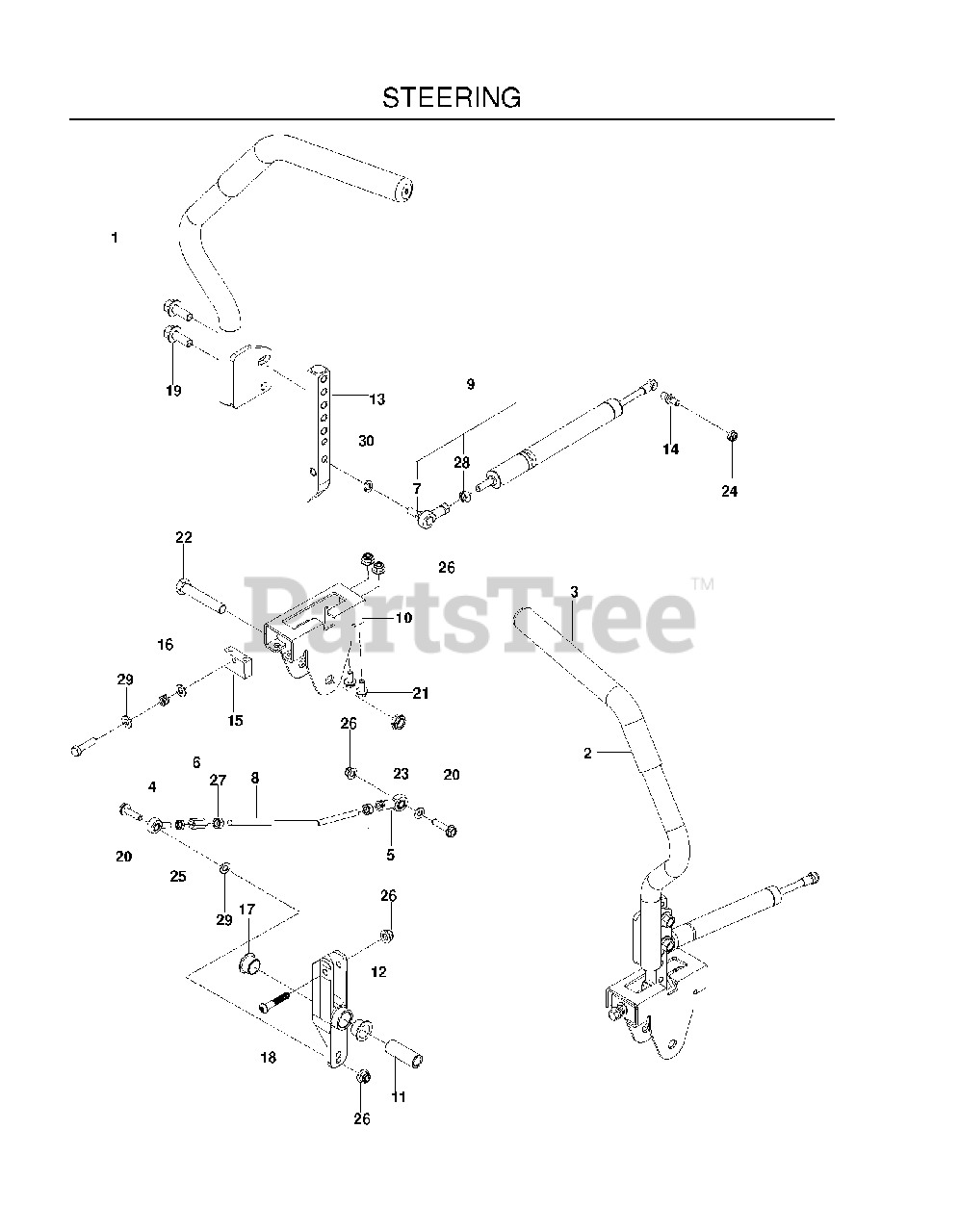

STEERING Parts Diagram

  • Title
1

Dixon 574262701

LEVER, W/GRIP, RT

Note: RT

$136.99

$

Usually ships in 3-10 days

0

2

Dixon 574262702

LEVER, W/GRIP, LT

Note: LT

$125.99

$

Usually ships in 3-10 days

0

3

Dixon 539130894

GRIP - DRIVE LEVER

$9.99

$

In Stock, only 3 left!

0

4

Dixon 539116690

ROD END LH
(Superseded to 588692502)

Note: LT

$10.99

$

Usually ships in 3-10 days

0

5

Dixon 539115729

RH ROD END
(Superseded to 579764601)

Note: RT

$9.49

$

Usually ships in 3-10 days

0

6

Dixon 539116689

ROD END COUPLER

$

$

Not available

7

Dixon 539131749

ROD END

$10.99

$

Usually ships in 3-10 days

0

8

Dixon 574811401

ROD, CONTROL

$14.99

$

Usually ships in 3-10 days

0

9

Dixon 516020301

ASSEMBLY, DAMPENER
(Superseded to 597084601)

$159.99

$

Usually ships in 3-10 days

0

10

Dixon 577251701

No Description Available
(Superseded to 586737202)

$26.99

$

In Stock, only 1 left!

0

11

Dixon 577252401

No Description Available
(Superseded to 584927201)

$5.99

$

In Stock, only 3 left!

0

12

Dixon 576140302

No Description Available

$78.99

$

Usually ships in 3-10 days

0

13

Dixon 574269401

LEVER, MOTION

$27.99

$

Usually ships in 3-10 days

0

14

Dixon 539110607

10MM BALL STUD

$4.99

$

Usually ships in 3-10 days

0

15

Dixon 577251801

No Description Available

$11.99

$

Usually ships in 3-10 days

0

16

$4.99

$

In Stock, only 3 left!

0

17

Dixon 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 6

0

18

Dixon 576850402

No Description Available

$4.99

$

In Stock, only 2 left!

0

19

Dixon 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

20

Dixon 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

22

Dixon 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

23

Dixon 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, only 3 left!

0

24

Dixon 539115617

5/16-18 THIN PROF NY

$

$

Not available

25

Dixon 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

26

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

27

Dixon 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539127046

NUT M8 X 1.25 STD HEX

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

30

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0
