DWOAS6PS (41BJS6PS938) - DeWALT Pole Saw Attachment General Assembly Parts Diagram

Pole Saw Attachment

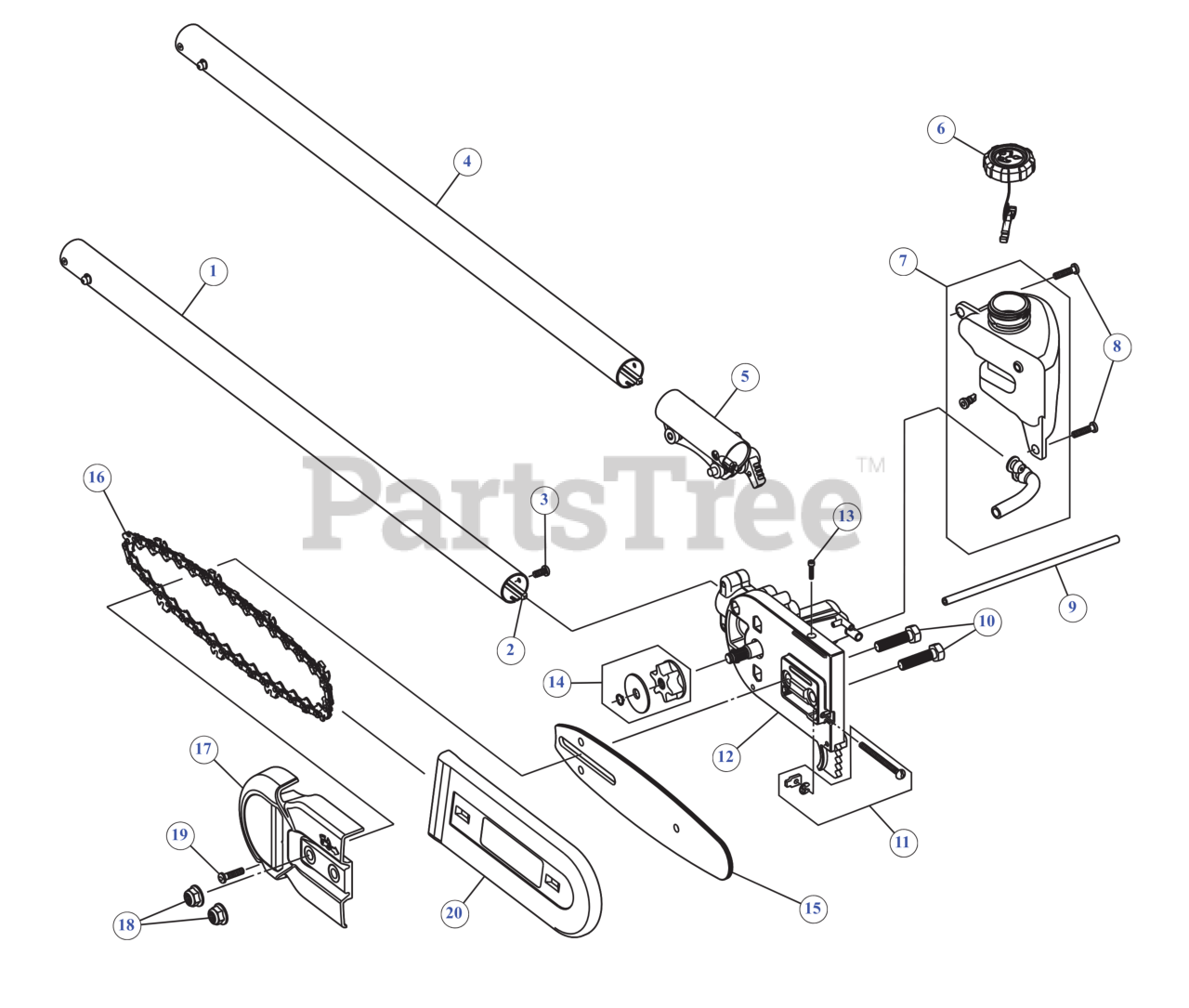

General Assembly Parts Diagram

  • Title

1

MTD 841-090508S

LOWER DRIVE SHAFT HOUSING

Note: (Incl. 2)

$36.99

$

In Stock, only 1 left!

0

2

MTD 753-11123

FLEXIBLE DRIVE SHAFT

$65.99

$

Usually ships in 3-6 days

0

3

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

4

MTD 841-090510S

BOOM ASSEMBLY

$66.99

$

Usually ships in 3-6 days

0

5

MTD 753-11124

CLAMP ASM DW BK

$19.99

$

Usually ships in 3-6 days

0

6

MTD 753-11375

OIL CAP

$7.99

$

Usually ships in 3-6 days

0

7

MTD 753-11360

OIL TANK

$28.99

$

Usually ships in 3-6 days

0

8

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

9

MTD 753-05588

OIL LINE

$9.99

$

Usually ships in 3-6 days

0

10

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

11

MTD 753-05597

CHAIN TENSION HDW

$10.99

$

In Stock, only 3 left!

0

12

MTD 753-05599

GEAR BOX ASSEMBLY

Note: (Incl. 13 & 14)

$106.99

$

In Stock, only 1 left!

0

13

MTD 710-04696

SCREW 4X40X.50

$3.99

$

In Stock, only 2 left!

0

14

MTD 753-05595

SPROCKET ASSEMBLY

$11.99

$

In Stock, Qty 20+

0

15

MTD 753-05594

BAR 8" SPROCKET NOSE

$54.99

$

In Stock, only 2 left!

0

16

MTD 753-05592

CHAIN 8" 34 LINK .043 GAUGE

$38.99

$

In Stock, Qty 13

0

17

MTD 753-05765

CHAIN GUARD

$11.99

$

In Stock, only 1 left!

0

18

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 17

0

19

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

20

MTD 731-25531

8" SCABBARD

$6.99

$

Usually ships in 3-6 days

0

MTD 731-08926

HANGER

$2.99

$

In Stock, only 3 left!

0

MTD 797-00056

ALLEN WRENCH

$10.99

$

Usually ships in 3-6 days

0

MTD 797-00828

TOOL WR 42CC CHAINSAW

$11.99

$

Usually ships in 3-6 days

0

MTD 4301A

SHOULDER STRAP CLAMP

$3.49

$

Usually ships in 3-6 days

0

MTD 5940A

Shoulder Strap

$

$

Currently unavailable
