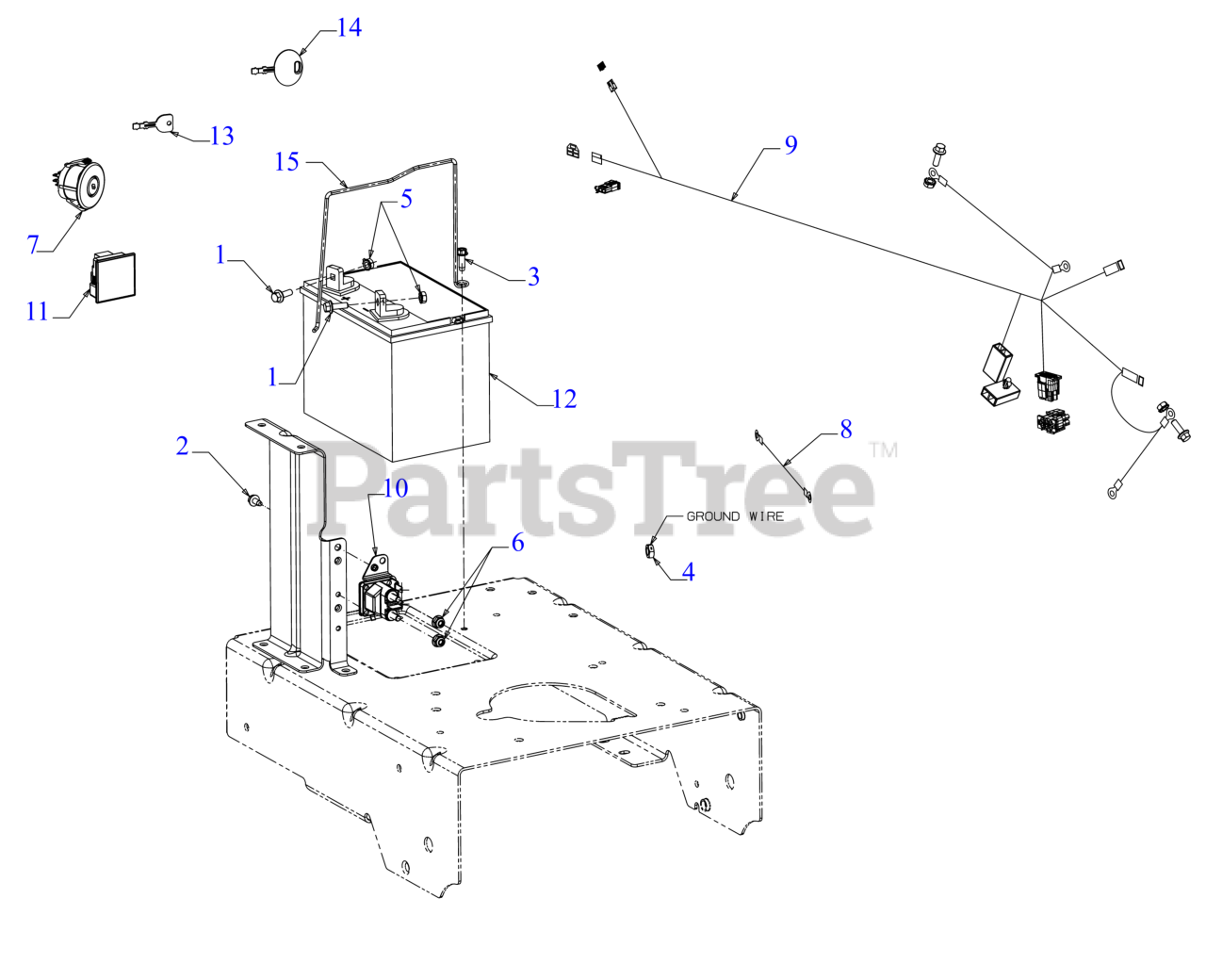

DW33 (DXGMW33344R) (12AE764B038) - DeWALT Walk-Behind Mower (2023) Electrical Parts Diagram

Walk-Behind Mower

Electrical Parts Diagram

  • Title

1

MTD 710-04666

SCREW 1/4-20 x .75 GR5

$6.99

$

In Stock, only 3 left!

0

2

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 20+

0

5

MTD 712-0271

SEMS NUT 1/4-20

$4.49

$

In Stock, Qty 19

0

6

MTD 712-0271

SEMS NUT 1/4-20

$4.49

$

In Stock, Qty 19

0

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

MTD 925-04228

KEY SWITCH 3 POS

$39.99

$

In Stock, Qty 20+

0

8

MTD 725-04478

STARTER HARNESS

$19.99

$

Usually ships in 3-6 days

0

9

MTD 925-05266

MAIN WIRE HARNESS

$80.99

$

Usually ships in 3-6 days

0

10

MTD 725-06153A

12V SOLENOID

$42.99

$

In Stock, Qty 13

0

11

MTD 925-06170B

HOUR METER/SERVICE MINDER

$70.99

$

Usually ships in 3-6 days

0

11

MTD 490-900-C075

Cub Cadet HOUR METER KIT

Note: Retail Packaged Part

$55.99

$

In Stock, only 3 left!

0

11

MTD 490-900-Y075

Troy-Bilt HOUR METER KIT

Note: Retail Packaged Part

$53.99

$

Usually ships in 3-6 days

0

12

Purchase Battery Locally

Note: Service Battery is No Longer Available

$

$

Not available

12

MTD 925-1707D

BATTERY

$

$

Not available

13

MTD 925-1745A

IGNITION KEY

$17.99

$

In Stock, Qty 20+

0

15

MTD 747-04657

BATTERY HOLD DOWN STRAP

$12.99

$

In Stock, only 2 left!

0
