DW33 (DXGMW33344R) (12AE764B038) - DeWALT Walk-Behind Mower (2023) Cover Parts Diagram

Walk-Behind Mower

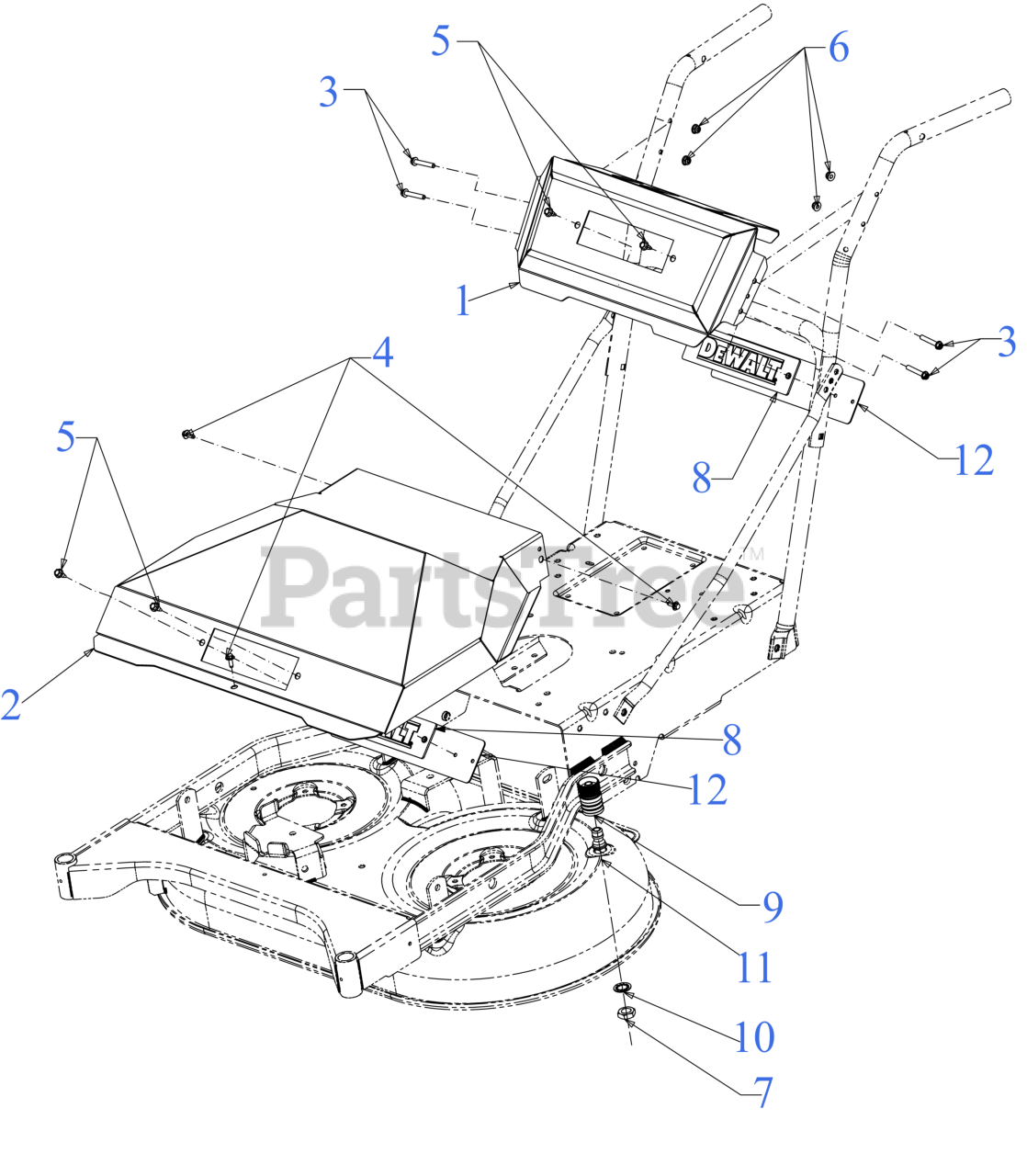

Cover Parts Diagram

  • Title
1

MTD 687-06039

HANDLE PANEL

Note: *CHOOSE COLOR WHEN ORDERING*

$194.99

$

Usually ships in 3-6 days

0

2

MTD 687-06040

BELT COVER

$350.99

$

Usually ships in 3-6 days

0

3

MTD 710-04860C

HEX FLANGE BOLT 1/4-20 x 1.5

$3.99

$

Usually ships in 3-6 days

0

4

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

5

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-0641

HEX NUT

$6.49

$

In Stock, Qty 7

0

8

MTD 719-07450

DEWALT LOGO (DIE CAST)

$28.99

$

Usually ships in 3-6 days

0

9

MTD 921-04041

WATER NOZZLE ADAPTER

$23.99

$

In Stock, Qty 20+

0

10

MTD 736-0225

LOCK WASHER 5/8

$4.49

$

In Stock, only 2 left!

0

11

MTD 737-04003D

DECK WASH NOZZLE

$23.99

$

In Stock, Qty 6

0

12

MTD 787-06317

LOGO BACK PLATE

$17.99

$

Usually ships in 3-6 days

0
