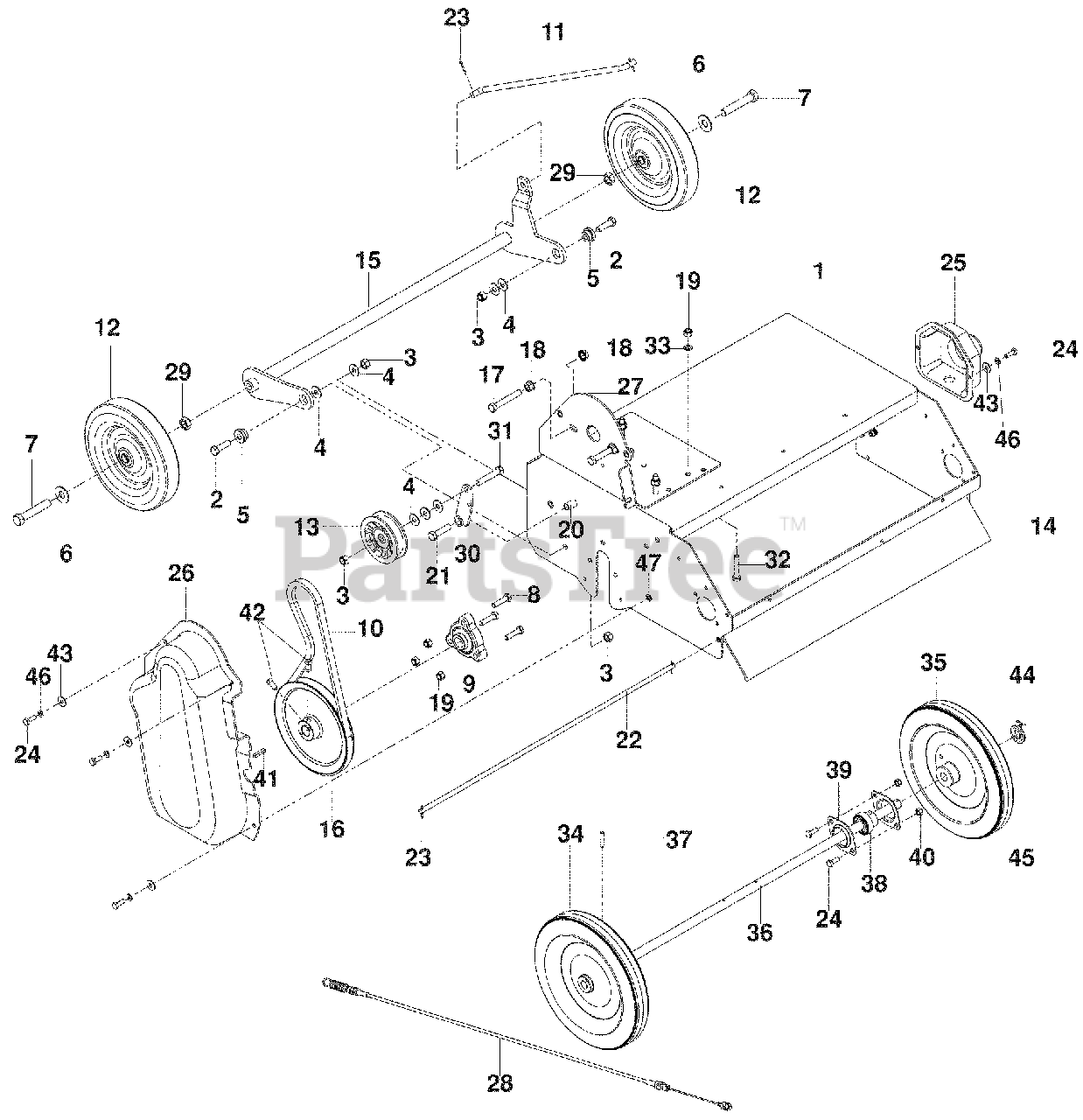

DTF 226 (966067101) - Husqvarna Dethatcher (2009-09) Frame Parts Diagram

Dethatcher

Frame Parts Diagram

  • Title

1

Husqvarna 525858501

BODY
(Superseded to 574640401)

$511.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539106847

BUSHING

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990550

WASHER, ½

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101332

HCS ½-13 x 2¾

$5.99

$

In Stock, only 3 left!

0

8

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 539100488

BEARING FLANGE C.I.

$74.99

$

In Stock, only 2 left!

0

10

Husqvarna 539100439

BELT

$42.99

$

In Stock, only 1 left!

0

11

Husqvarna 539106805

LINKAGE

$

$

Not available

12

Husqvarna 540075051

WHEEL, 8 x 1.75

$37.99

$

In Stock, only 1 left!

0

13

Husqvarna 539110311

IDLER PULLEY, HYDRO'S

$17.99

$

In Stock, Qty 20+

0

14

Husqvarna 539106643

REAR FLAP

$

$

Not available

15

Husqvarna 539106759

AXLE, FRONT

$

$

Not available

16

Husqvarna 539100511

PULLEY, 7"

$93.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990637

HCS 3/8-16 x 2½

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990613

NUT 3/8-16 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539100482

BUSHING

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 539106672

FLAP ROD

$15.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990037

PIN COTTER ¾

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990580

HCS ¼-20 x ¾

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539106754

SHAFT GUARD

$

$

Not available

26

Husqvarna 539108069

BELT GUARD
(Superseded to 539108070)

$145.99

$

In Stock, only 3 left!

0

27

Husqvarna 539106772

BACKING PLATE

$109.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539106849

CABLE

$37.99

$

In Stock, only 1 left!

0

29

Husqvarna 539990625

NUT ½-13 JAM
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

30

Husqvarna 539108067

IDLER, ARM
(Superseded to 522795001)

$74.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

32

Husqvarna 539990669

HCS 5/16-18 x 1¾
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

33

Husqvarna 539990187

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

34

Husqvarna 540000058

WHEEL, 10x1.75 DRILLED

$

$

Not available

35

Husqvarna 540053401

WHEEL, 10x1.75 w/ BUSHING

$66.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539106663

REAR AXLE

$

$

Not available

37

Husqvarna 539109273

PIN ROLL ¼ x 11/8

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539000319

BEARING 5/8 w/ COLLAR

$

$

Not available

39

Husqvarna 539000321

BRG FLANGETTE 5/8 2 BOLT

$

$

Not available

40

Husqvarna 539976978

NUT ¼-20, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

41

Husqvarna 539910061

KEY ¼ SQ x 11/8

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539102717

SCREW 5/16-18 x 5/8 SET

$3.99

$

In Stock, only 4 left!

0

43

Husqvarna 539990598

WASHER ¼

$

$

Not available

44

Husqvarna 539990297

COTTER PIN 1/8 x 1½

$

$

Not available

45

Husqvarna 539976982

WASHER 5/8 SAE

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990052

WASHER ¼ SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539108147

KNURLED INSERT ¼-20

$3.99

$

Usually ships in 3-10 days

0
