DT 22 NF (968999247) - Husqvarna 22" Dethatcher (2005-07) Bagger Assembly Parts Diagram

22" Dethatcher

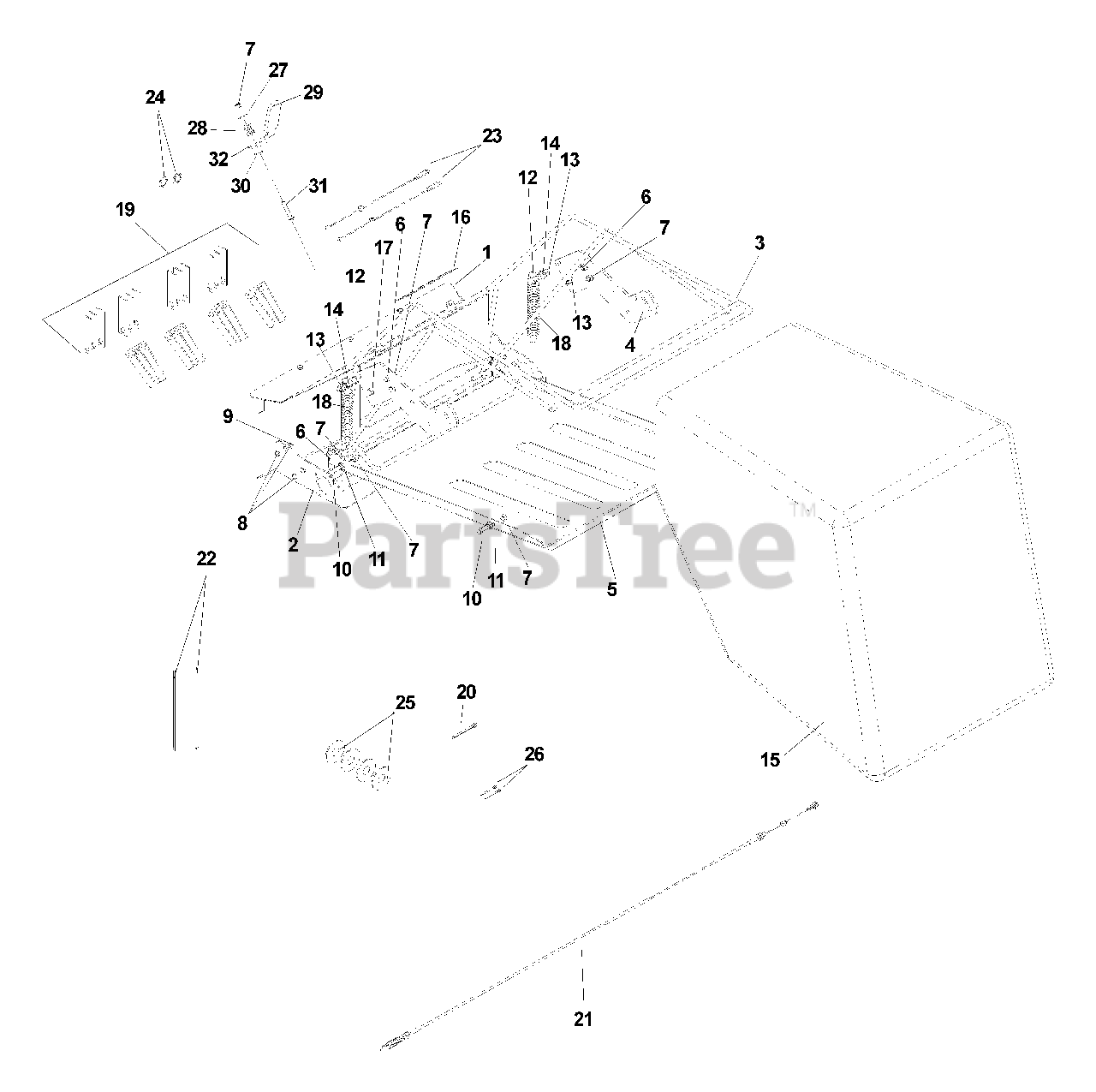

Bagger Assembly Parts Diagram

  • Title
1

Husqvarna 539106799

CHUTE
(Superseded to 539130841)

$

$

Not available

$133.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539107242

BAG FRAME, BLACK

$399.99

$

Usually ships in 3-10 days

0

4

$103.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539106835

SAFETY DOOR

$169.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990209

SCREW, 5/16 X 1

$1.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990717

NUT, 5/16, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539990580

SCREW, 1/4 X 3/4

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539976978

NUT, 1/4, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 539990669

SCREW, 5/16 X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 539990585

NUT, 5/16, SERRATED WASHER

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990588

SCREW, 3/8 X 2

$4.99

$

In Stock, Qty 10

0

13

Husqvarna 539976979

NUT, 3/8, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990613

NUT, 3/8, SERRATED WASHER

$3.99

$

Usually ships in 3-10 days

0

$205.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539976583

DECAL, WARNING

$

$

Not available

17

Husqvarna 539990563

SCREW, 3/8 X 1

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539107315

SPRING, BAGGER

$9.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539109771

BLADE SET (56)

$182.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990297

COTTER PIN 1/8 X 1 1/2 (FOR REAR AXLE)

$

$

Not available

21

Husqvarna 539106827

CABLE, BAGGER

$34.99

$

In Stock, only 2 left!

0

22

Husqvarna 539976856

WIRE TIE

Note: IS USED FOR ATTACHING CABLE TO EXTENDER.

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539102563

LANYARD

Note: IS USED FOR REATTACHING PIN TO EXTENDER.

$9.99

$

Usually ships in 3-10 days

0

24

Husqvarna 540053411

RETAINING RING

Note: IS USED FOR REINSTALLING TIRE TO AXLE.

$

$

Not available

25

Husqvarna 539000436

WASHER, 5/8, SAE (FOR REAR AXLE)
(Superseded to 539976982)

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539099037

COTTER PIN, 3/32 X 3/4

$

$

Not available

27

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990861

RHSNB, 5/16-18 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

32

$15.99

$

Usually ships in 3-10 days

0
