DT 18 C (968981005) - Husqvarna 18" Dethatcher (2000-12) Compact Dethatcher Parts Diagram

18" Dethatcher

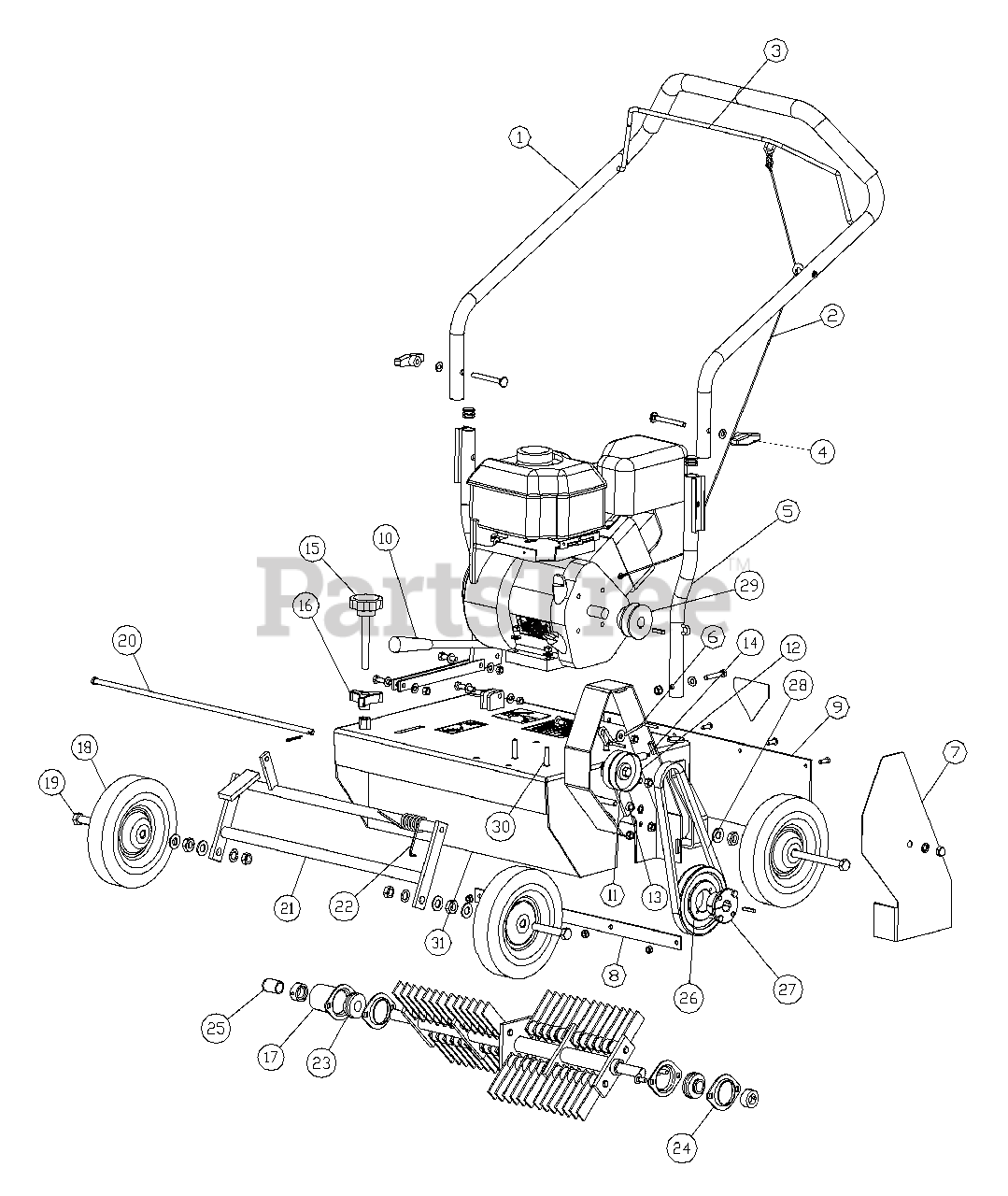

Compact Dethatcher Parts Diagram

  • Title

1

Husqvarna 540054001

Handle Assembly.

Note: Includes handle, bail, clutch cable, S-hook and handle grip, eye bolt and nut

$

$

Not available

2

Husqvarna 540054002

Clutch Cable Assembly.
(Superseded to 539923702)

Note: Includes clutch cable and S-hook

$

$

Not available

3

Husqvarna 540054003

Bail

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 540054004

Knob, Folding Handle Kit
(Superseded to 539054004)

Note: Includes knob washer and bolt

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 540054005

Lower Handle Assembly.

Note: Includes folding handle mount, 5/16-18 x 1 3/4" HCS, internal lockwasher and 5/16-18 hex nut

$25.99

$

Usually ships in 3-10 days

0

6

Husqvarna 540005140

Belt Keeper Kit
(Superseded to 539005140)

Note: Includes belt keeper, 5/16 washer, 5/16 hex lock nut, 5/16-18 x 3/4 carriage bolt

$74.99

$

Usually ships in 3-10 days

0

7

Husqvarna 540054006

Belt Guard Kit
(Superseded to 539054006)

Note: Includes shield, 3/8 internal lock washer and 3/8-16 acorn nut

$

$

Not available

8

Husqvarna 540054058

Deflector Kit

Note: Includes deflector strap, 1/4-20 x 3/4 slotted round screw (4 ea.), 1/4-20 hex keps nut (4 ea.)

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 540005161

Deflector, neoprene

$

$

Not available

10

Husqvarna 540054007

Depth Lever Assembly.
(Superseded to 539054007)

Note: Includes height adjustment link (2 ea.), adjustment lever, 5/16-18 x 1 1/4 hex head bolt (2 ea.), 5/16-18x1 1/2 hex head bolt, 5/16 flat washer (6 ea.), 5/16-18 hex lock nut (3 ea.)

$121.99

$

Usually ships in 3-10 days

0

11

Husqvarna 540005027

Idler Assembly Kit
(Superseded to 539005027)

Note: Includes 2 3/4 idler pulley, clutch spring, idler arm, idler tab, 3/8 washer, 3/8-16 hex jam nut, 3/8-16 hex lock nut, 3/8-16 x 4 hex screw

$

$

Not available

12

Husqvarna 540000343

Pulley, idler 2 3/4 OD
(Superseded to 539000343)

$44.99

$

Usually ships in 3-10 days

0

13

Husqvarna 540005121

Mounting Arm, idler pulley
(Superseded to 539005121)

$

$

Not available

14

Husqvarna 540005129

Spring, Clutch rod
(Superseded to 539005129)

$8.99

$

In Stock, only 4 left!

0

15

Husqvarna 540054008

Depth Adjustments Knob
(Superseded to 539054008)

$74.99

$

Usually ships in 3-10 days

0

16

Husqvarna 540054009

3 - pronged lock depth knob
(Superseded to 539054009)

$7.99

$

In Stock, only 4 left!

0

17

Husqvarna 540054010

Rotor guard
(Superseded to 539054010)

$

$

Not available

18

Husqvarna 540005051

Wheel, 8 x 1 3/4, ball bearing
(Superseded to 540075051)

$37.99

$

In Stock, only 1 left!

0

19

Husqvarna 540054011

Bolt kit for wheel
(Superseded to 539054011)

Note: Includes 1/2-13 x 3 1/4 hex bolt, 1/2 washer (2 ea.), 1/2-13 hex jam nut (2 ea.), 1/2 lock washer (1 ea.)

$56.99

$

Usually ships in 3-10 days

0

20

Husqvarna 540054012

Lift Arm Rod Kit
(Superseded to 539054012)

Note: Includes 1/4 cotter pin, 3/8 washer, plated rod

$12.99

$

Usually ships in 3-10 days

0

21

Husqvarna 540054013

Lift Arm Assembly Kit

Note: Includes lift arm weldment, torsion spring

$

$

Not available

22

Husqvarna 540054014

Torsion spring
(Superseded to 539054014)

$

$

Not available

23

Husqvarna 540000315

Bearing, 3/4 with locking collar
(Superseded to 539000315)

$37.99

$

In Stock, Qty 6

0

24

Husqvarna 540005185

Stamping Kit
(Superseded to 539005185)

Note: Includes 5/16-18 hex nut (2 ea.), 5/16-18x3/4 carriage bolt (2 ea.), bearing flanges (2 ea.), 5/16 lockwashers (2 ea.)

$17.99

$

In Stock, only 3 left!

0

25

Husqvarna 540005005

Rotor cap, 3/4 ID
(Superseded to 539005005)

$13.99

$

Usually ships in 3-10 days

0

26

Husqvarna 540054015

V - Pulley, B-5.0 OD, tapered bore
(Superseded to 539054015)

$121.99

$

Usually ships in 3-10 days

0

27

Husqvarna 540054016

Bushing kit

Note: Includes bushing 3/4 bore with screws, 3/16 square key

$

$

Not available

28

Husqvarna 540054017

V - Belt, B-33, special
(Superseded to 539054017)

$54.99

$

Usually ships in 3-10 days

0

29

Husqvarna 540054019

V - Pulley engine kit for 3/4 bore
(Superseded to 539054019)

Note: Includes V-pulley 2 1/2 OD x 3/4 bore, 3/16 square key

$182.99

$

Usually ships in 3-10 days

0

30

Husqvarna 540054021

Engine Bolt Kit
(Superseded to 539054021)

Note: Includes 5/16-18 x 1 1/2 carriage bolt (4 ea.), 5/16 washer (8 ea.), 5/16-18 hex lock nut (4 ea.)

$10.99

$

Usually ships in 3-10 days

0

31

Husqvarna 540054022

Deck, DT18C

$

$

Not available

32

Husqvarna 540054052

Kit, Decal DT18C Dethacher

Note: (Not shown)

$

$

Not available

33

Husqvarna 540005053

Rear wheel, 10 x 2 3/4 ball bearing
(Superseded to 539005053)

$136.99

$

Usually ships in 3-10 days

0
