DS 700 (504625401) - Husqvarna Drill Stand (2007-12) Vacuum Pump & Combo Base Parts Diagram

Drill Stand

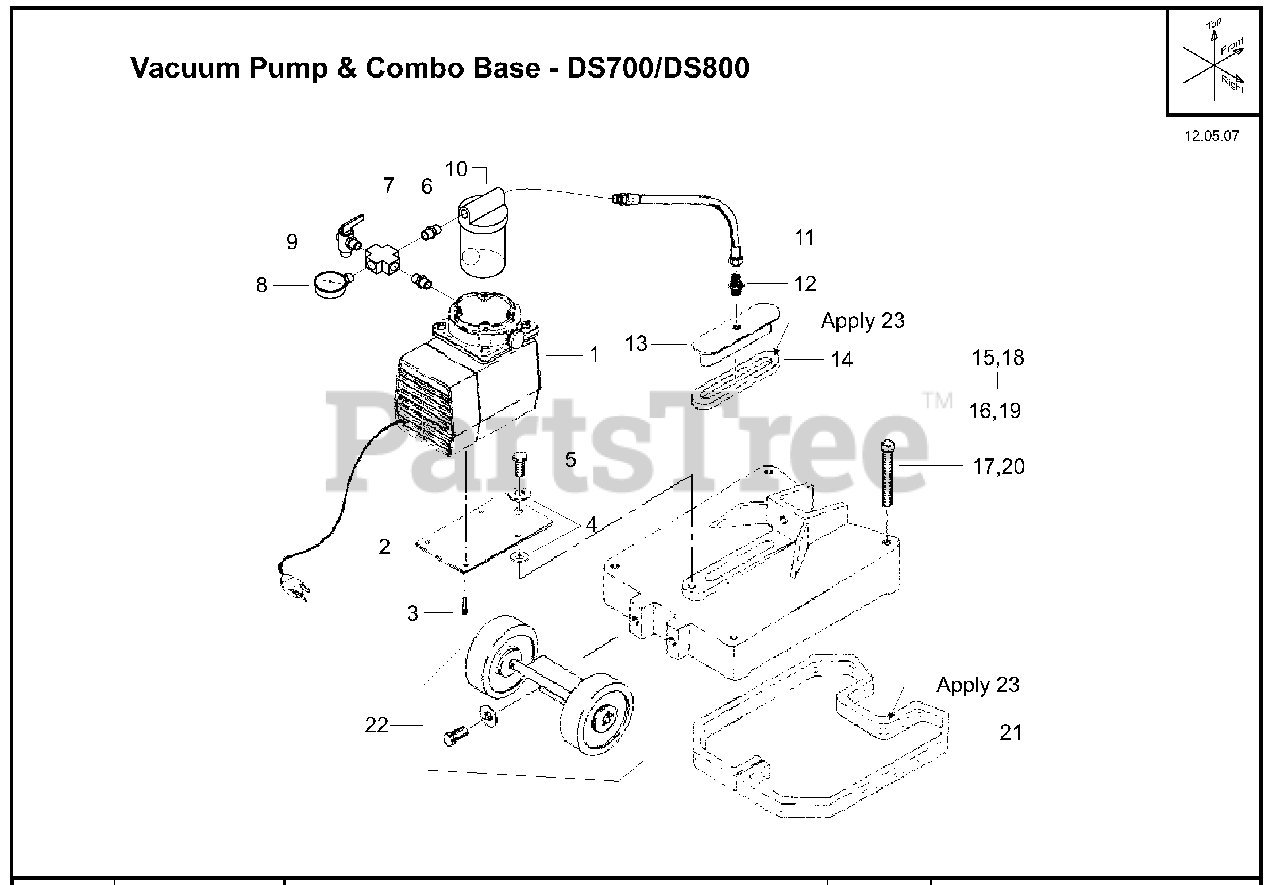

Vacuum Pump & Combo Base Parts Diagram

  • Title

Husqvarna 541400077

Vacuum Assy - Combo Base
(Superseded to 584620101)

Note: Incls. Items 1 - 14

$2135.99

$

Usually ships in 3-10 days

0

1

Husqvarna 505549502

Pump, Vacuum 115V/60/1

Note: Incls: Muffler

$702.99

$

Usually ships in 3-10 days

0

Husqvarna 162120

Muffler, Vacuum Pump
(Superseded to 917162120)

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 162119

Kit, Vacuum Pump Service
(Superseded to 917162119)

$35.99

$

Usually ships in 3-10 days

0

2

Husqvarna 541401640

Bracket, Pump Mounting

$59.99

$

Usually ships in 3-10 days

0

3

Husqvarna 020678

Capscrew, Soc Hd 10-32 x 3/4"

$

$

Currently unavailable

4

Husqvarna 541403798

Washer, Flat 1/2" SAE

$0.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539990646

Capscrew, Hex Hd 1/2-13 x 1"

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 090577

Pipe Fit., Hex Nipple 1/4 NPT - Brass

$

$

Not available

7

Husqvarna 174451

Pipe Fit., Female Cross 1/4 NPT - Brass

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 090662

Gauge, Vacuum

$

$

Not available

9

Husqvarna 162439

Valve, Vacuum Release

$

$

Currently unavailable

10

Husqvarna 162438

Trap, Water - compl

Note: Incls: Ball & Jar

$

$

Not available

Husqvarna 175308

Ball, Water Trap
(Superseded to 162438)

$

$

Not available

Husqvarna 175309

Jar, Water Trap

$111.99

$

Usually ships in 3-10 days

0

11

Husqvarna 162440

Hose, Vacuum Pump

$

$

Not available

12

Husqvarna 162441

Pipe Fit., Hex Nipple 1/4 NPT w/ 30 Deg Chamfer

$

$

Not available

13

Husqvarna 541401651

Cap, Slot

$32.99

$

Usually ships in 3-10 days

0

14

Husqvarna 541401981

Gasket, Slot Cap

$

$

Currently unavailable

15

Husqvarna 541401661

Base, Combo, DS700 - Compl

Note: Incls: Items 16 - 17 & 21

$

$

Not available

16

Husqvarna 541403896

Base, Large, DS700 - Husq Orange

$

$

Not available

17

Husqvarna 020219

Capscrew, Sq Hd 1/2-13 x 4"

$3.62

$

Usually ships in 3-10 days

0

18

Husqvarna 504539502

Base, Combo, DS800 - Compl

Note: Incls: Items 19 - 20 & 21

$1120.99

$

Usually ships in 3-10 days

0

19

Husqvarna 502494001

Base, Large, DS800 - Husq Orange

$1159.99

$

Usually ships in 3-10 days

0

20

Husqvarna 541403519

Capscrew, Sq Hd 3/4-10 x 4"

$9.99

$

Usually ships in 3-10 days

0

21

Husqvarna 541201985

Gasket, Combination Base

$34.99

$

In Stock, only 1 left!

0

22

Husqvarna 541401126

Axle & Wheels - compl

Note: See Diag F

$208.99

$

Usually ships in 3-10 days

0

23

Husqvarna 090249

Adhesive, Tube - 5 OZ

Note: Used on 14 & 21

$107.99

$

In Stock, only 1 left!

0
