DS 60 (59A40105727) - Cub Cadet Yanmar Tractor Mower Deck Attachment Mower Deck Parts Diagram

Tractor Mower Deck Attachment

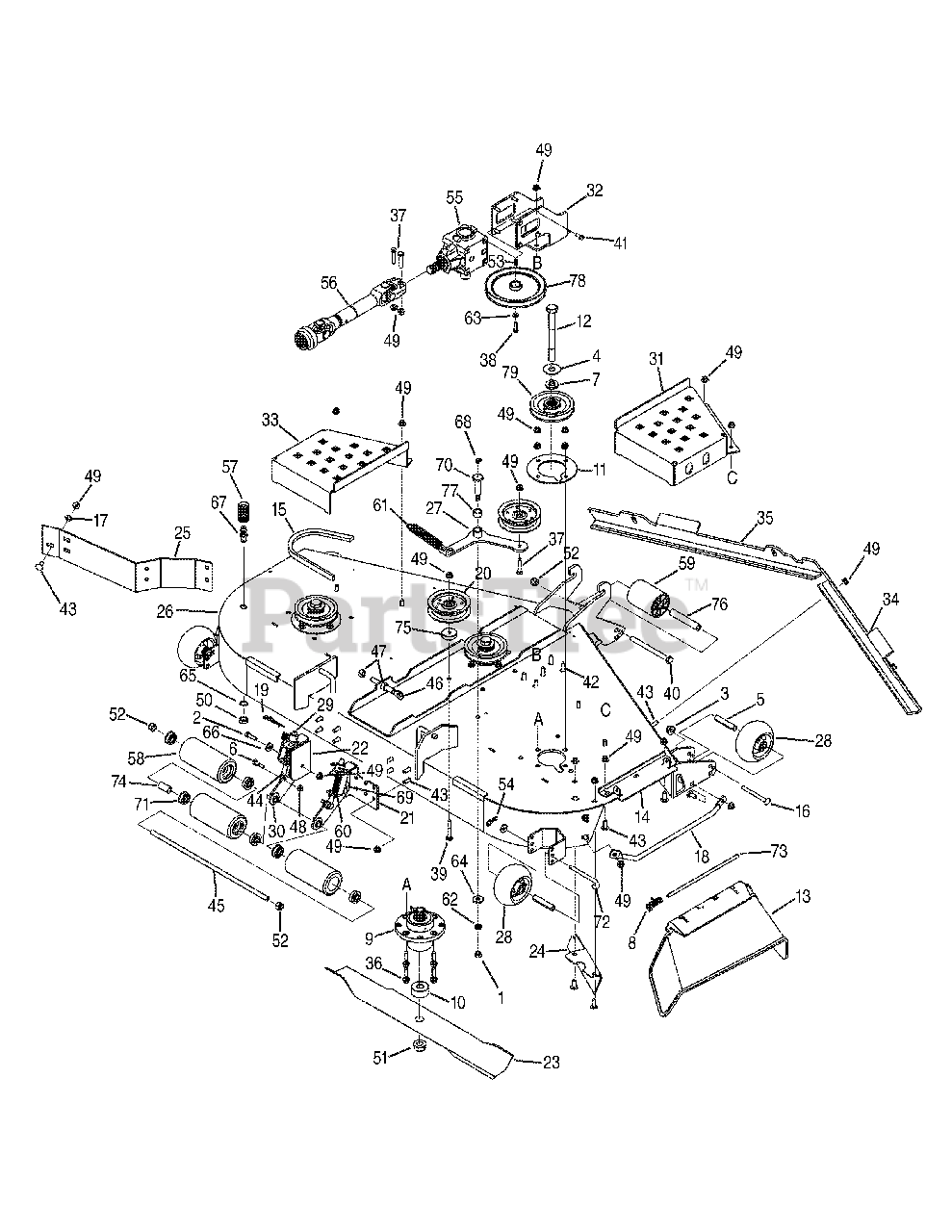

Mower Deck Parts Diagram

  • Title

1

Cub Cadet 912-3019

Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00011444

Hex Screw, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00022560

Flange Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 736-3014

Washer, .781 x 2.00 x .105

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 750-3193

Spacer, .390 x .620 x 3.04

$18.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01002988

Shoulder Bolt, .372 x .484 x 5
(Superseded to 738-05006)

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01003123

Spacer, .812 x 1.47 x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01003253

Torsion Spring, .639 x 2.16 x .1
(Superseded to 732-04797)

$11.99

$

In Stock, only 4 left!

0

9

Cub Cadet 01003532AP

Spindle Assembly
(Superseded to 918-05125)

$331.99

$

In Stock, Qty 11

0

10

Cub Cadet 01004415

Spacer, .760 x 2.00 x .925

$40.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01004478-0637

Support Plate
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01005213

Hex Screw, 3/4-16 x 7.00
(Superseded to 710-05387)

$14.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01006693

Chute Deflector
(Superseded to 01006693P)

$68.99

$

In Stock, Qty 8

0

14

Cub Cadet 01006748-0637

Chute Bracket

$35.99

$

In Stock, Qty 10

0

15

Cub Cadet 01007937

Deck Belt
(Superseded to 01007937P)

$102.99

$

In Stock, only 1 left!

0

16

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4
(Superseded to 710-05384)

$5.49

$

In Stock, Qty 19

0

17

Cub Cadet 01008225

Push Nut, .335 x .780 x .01
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 01008644

Finger Guard

$36.99

$

In Stock, only 1 left!

0

19

Cub Cadet 02003074

Hitch Pin, .120 x 3.00

$6.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 02004447

Idler Pulley, 4.88

$57.99

$

In Stock, Qty 20+

0

21

Cub Cadet 02004890-0637

RH Striper Mount Bracket

$

$

Not available

22

Cub Cadet 02004887-0637

LH Striper Mount Bracket

$40.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02005019

Blade, 21.0
(Superseded to 942-04415)

$35.99

$

In Stock, Qty 20+

0

24

Cub Cadet 02005195-0637

Chute Baffle, 10.0

$45.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02005694-0637

Adjustable Baffle, 60

$56.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 603-04716-0691

Deck

$

$

Not available

27

Cub Cadet 603-04762-0691

Idler Arm Assembly

$

$

Not available

28

Cub Cadet 634-3159

Wheel, 5.00

$34.99

$

In Stock, Qty 20+

0

29

Cub Cadet 680-00002-0637

Striper Adjustment Assembly

$32.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 680-00005-0637

Striper Bracket Assembly

$

$

Currently unavailable

31

Cub Cadet 703-07289-4021

RH Belt Cover

$

$

Not available

32

Cub Cadet 703-07291-0691

Mount Bracket

$

$

Not available

33

Cub Cadet 703-07415-4021

LH Belt Cover

$

$

Not available

34

Cub Cadet 703-07522-4021

RH Skirt

$

$

Not available

35

Cub Cadet 703-07523-4021

LH Skirt

$

$

Not available

36

Cub Cadet 710-04829

Hex Flange Bolt, 3/8-16 x 1.5

$6.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

38

Cub Cadet 710-0376

Hex Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-04886

Carriage Bolt, 3/8-16 x 2.50

$3.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 710-05060

Hex Screw, 1/2-13 x 6.0

$6.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-1880

Hex Screw, 5/16-18 x .75

$4.99

$

In Stock, Qty 11

0

42

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

43

Cub Cadet 710-3097

Carriage Bolt, 3/8-16 x 1.0

$6.99

$

In Stock, Qty 5

0

44

Cub Cadet 711-05289

Striper Height Rod

$

$

Not available

45

Cub Cadet 711-05334

Striper Roller Shaft

$

$

Not available

46

Cub Cadet 911-0817

Adjustable Eyebolt Link

$14.99

$

In Stock, only 4 left!

0

47

Cub Cadet 912-0206

Hex Nut, 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

51

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

52

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 914-0119

Square Key, 1/4 x .75
(Superseded to 714-0119)

$8.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 914-0149B

Internal Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

55

Cub Cadet 917-04532

Gearbox

$

$

Not available

56

Cub Cadet 917-04738

Drive Shaft

$

$

Not available

57

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

58

Cub Cadet 731-06723

Roller, 6.5

$76.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 731-3305

Deck Roller

$32.99

$

In Stock, Qty 20+

0

60

Cub Cadet 732-04553

Compression Spring

$13.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 932-0850

Extension Spring

$24.99

$

In Stock, Qty 5

0

62

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

63

Cub Cadet 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

64

Cub Cadet 736-0322

Flat Washer, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 8

0

65

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

66

Cub Cadet 736-3052

Flat Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

68

Cub Cadet 737-04091

Grease Fitting, 3/16

$7.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 738-04372

Shoulder Spacer, .6250 x .190

$7.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 738-3172

Shoulder Spacer, 7/16-14 x .68 x 2.11

$20.99

$

In Stock, only 2 left!

0

71

Cub Cadet 741-04362

Roller Bearing, .5

$30.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 747-05219

Roller Pin Rod

$

$

Not available

73

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0

74

Cub Cadet 750-05310

Spacer, .75 x .53 x 1.5

$

$

Not available

75

Cub Cadet 750-05360

Idler Spacer

$

$

Not available

76

Cub Cadet 750-05382

Spacer, .510 x .75 x 4.375

$

$

Not available

77

Cub Cadet 750-05389

Idler Spacer

$

$

Not available

78

Cub Cadet 756-04292

Drive Pulley

$

$

Not available

79

Cub Cadet 756-04413

Spindle Pulley, 4.6

$

$

Not available
