DS 60 (59A40105727) - Cub Cadet Yanmar Tractor Mower Deck Attachment Deck Lift Parts Diagram

Tractor Mower Deck Attachment

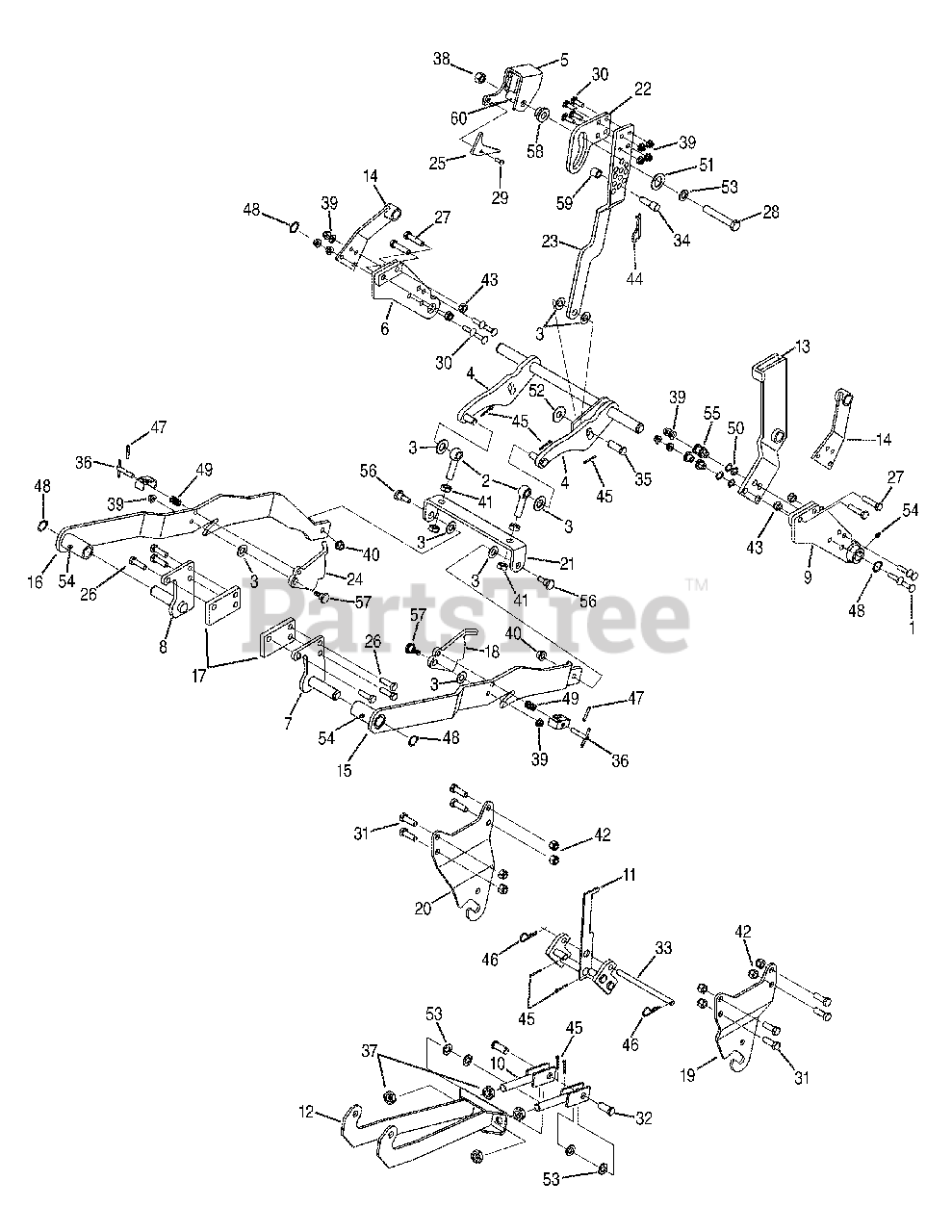

Deck Lift Parts Diagram

  • Title

1

Cub Cadet 00030276

Carriage Bolt, 3/8-16 x 1.50
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 01001744

Eye Bolt, 5/8-16 x 2.63
(Superseded to 710-05355)

$17.99

$

In Stock, only 2 left!

0

3

Cub Cadet 01004003

Flat Washer, 5/8
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 8

0

4

Cub Cadet 603-04722

Rock Shaft Assembly

$

$

Not available

5

Cub Cadet 603-04724-0691

Lift Arm Bracket

$

$

Not available

6

Cub Cadet 603-04726-0691

RH Rock Shaft Mount Assembly

$

$

Not available

7

Cub Cadet 603-04727-0691

LH Deck Hanger Mount Assembly

$

$

Not available

8

Cub Cadet 603-04728-0691

RH Front Hanger Bracket

$

$

Not available

9

Cub Cadet 603-04732-0691

LH Rock Shaft Mount Assembly

$

$

Not available

10

Cub Cadet 603-04734

Tension Rod Assembly Hanger

$

$

Not available

11

Cub Cadet 603-04735-0691

Tension Shaft Assembly

$

$

Not available

12

Cub Cadet 603-04738-0691

Front Tension Hanger Assembly

$

$

Not available

13

Cub Cadet 603-04742-0691

Height Stop Bracket

$

$

Not available

14

Cub Cadet 603-04749-0691

RH Shaft Stop Bracket

$

$

Not available

15

Cub Cadet 603-04782-0691

Left Rear Deck Hanger

$

$

Not available

16

Cub Cadet 603-04783-0691

Right Rear Deck Hanger

$

$

Not available

17

Cub Cadet 703-07404-0691

Bracket Hanger Spacer

$

$

Not available

18

Cub Cadet 703-07413

LH Deck Latch

$

$

Not available

19

Cub Cadet 703-07431-0691

LH Front Hanger Bracket

$

$

Not available

20

Cub Cadet 703-07432-0691

RH Front Hanger Bracket

$

$

Not available

21

Cub Cadet 703-07444-0691

Lift Adjustment Link

$

$

Not available

22

Cub Cadet 703-07460-0691

Top Height Adjustment Link

$

$

Not available

23

Cub Cadet 703-07461

Bottom Height Adjustment Link

$

$

Not available

24

Cub Cadet 703-07578

RH Deck Latch

$

$

Not available

25

Cub Cadet 703-07665-0691

3-Point Bracket

$

$

Not available

26

Cub Cadet 710-04959

Hex Screw, M12-1.75 x 40.0

$

$

Not available

27

Cub Cadet 710-04975

Hex Screw, M12-1.75 x 50.0

$

$

Not available

28

Cub Cadet 710-1143A

Hex Screw, 5/8-18 x 4.0

$11.99

$

In Stock, only 2 left!

0

29

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

31

Cub Cadet 710-3181

Hex Screw, 1/2-13 x 1.50

$6.99

$

In Stock, only 1 left!

0

32

Cub Cadet 711-04715

Clevis Pin, .625 x 1.50

$

$

Not available

33

Cub Cadet 711-04879

Front Hanger Pin

$

$

Not available

34

Cub Cadet 711-05243

Height Adjustment Pin

$

$

Not available

35

Cub Cadet 711-05250

Clevis Pin, .625 x 1.75

$

$

Not available

36

Cub Cadet 711-05269

Latch Lock Pin

$

$

Not available

37

Cub Cadet 712-0301

Jam Nut, 3/4-10

$7.99

$

In Stock, only 1 left!

0

38

Cub Cadet 712-0337

Hex Nut, 5/8-18

$4.49

$

In Stock, only 4 left!

0

39

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 912-3015

Jam Nut, 5/8-11
(Superseded to 712-3015)

$4.99

$

In Stock, only 2 left!

0

42

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 712-3103

Flange Lock Nut, M12-1.75

$4.49

$

In Stock, only 2 left!

0

44

Cub Cadet 714-0117

Internal Cotter Pin, .148 x 3.00

$4.49

$

In Stock, Qty 6

0

45

Cub Cadet 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 714-3020

Internal Cotter Pin

$4.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 715-0105

Spring Roll Pin, 3/16 x 1.5

$

$

Not available

48

Cub Cadet 916-0102

Snap Ring, 1.0
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

49

Cub Cadet 732-04557

Compression Spring, 0.63 x 1.00

$

$

Not available

50

Cub Cadet 736-0174

Wave Washer, .625 x .885 x .015

$6.99

$

In Stock, only 2 left!

0

51

Cub Cadet 736-0250

Flat Washer, 1.00 x 1.75 x .107

$4.49

$

In Stock, only 2 left!

0

52

Cub Cadet 736-0285

Flat Washer, .635 x 1.589 x .060

$4.49

$

In Stock, Qty 9

0

53

Cub Cadet 736-0366

Flat Washer, .640 x 1.12 x .125

$4.49

$

In Stock, only 2 left!

0

54

Cub Cadet 937-0146

Grease Fitting

$5.49

$

In Stock, only 2 left!

0

55

Cub Cadet 738-04058

Shoulder Spacer, .38 x 1.0 x.70

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 738-1020

Shoulder Spacer, 7/16-20 x .625 x .500

$7.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 738-1127

Shoulder Screw, 3/8-16 x .625 x .442
(Superseded to 738-1127B)

$7.49

$

In Stock, Qty 11

0

58

Cub Cadet 750-05293

Shoulder Spacer, 1.0 x .75

$

$

Not available

59

Cub Cadet 750-05294

Spacer, .813 x .595 x .75

$

$

Not available

60

Cub Cadet 950-0932A

Spacer, .635 x .88 x 1.72

$20.99

$

In Stock, Qty 11

0
