DRT 900 LS (960930015-00) - Husqvarna Rear-Tine Tiller (2009-11) Handle Assembly Parts Diagram

Rear-Tine Tiller

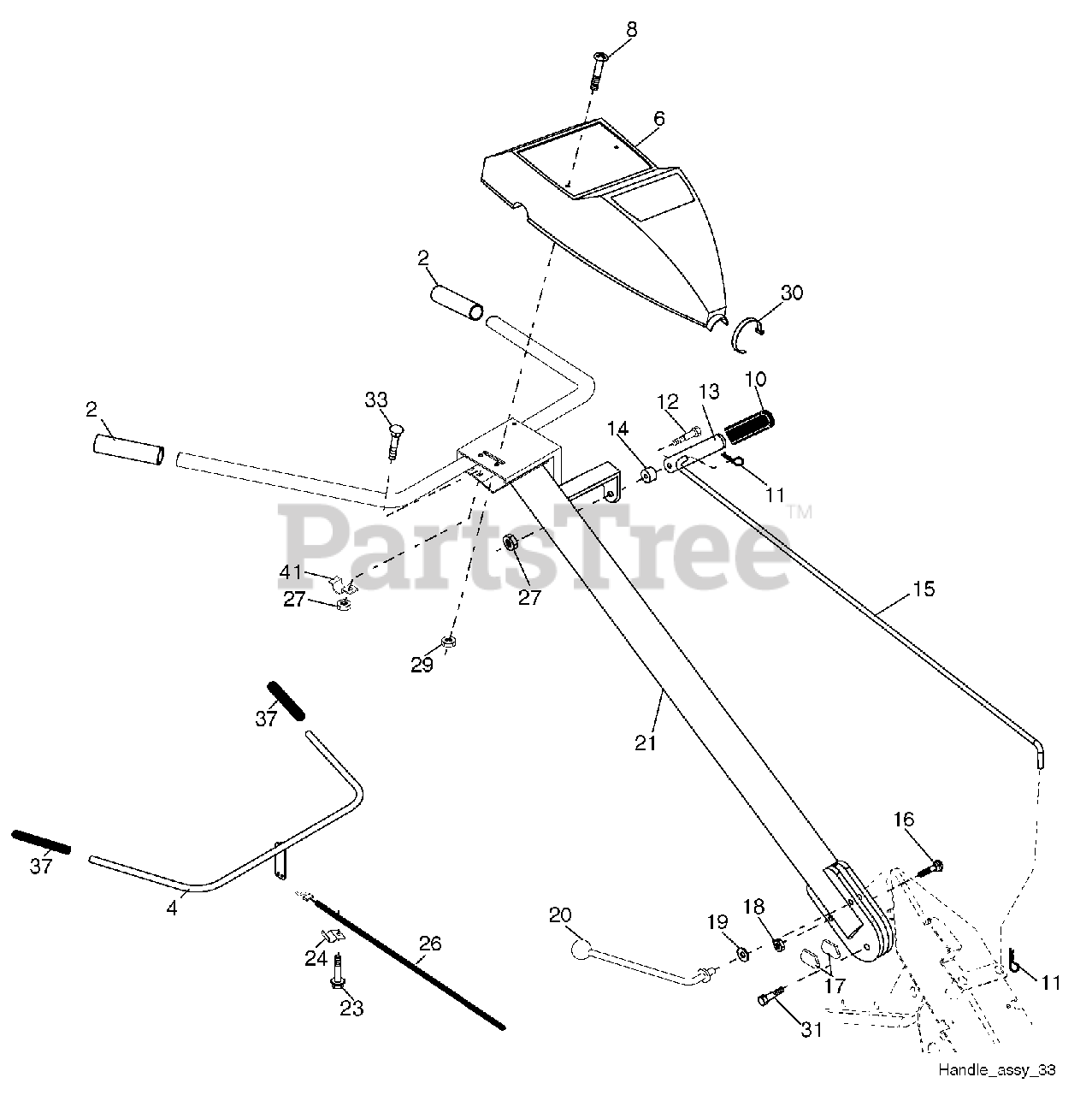

Handle Assembly Parts Diagram

  • Title
2

Husqvarna 532427643

Grip, Handle
(Superseded to 532165787)

$6.99

$

In Stock, only 2 left!

0

4

Husqvarna 532159228

Bar Assembly, Control
(Superseded to 584370701)

$

$

Not available

6

Husqvarna 532180685

Panel, Control
(Superseded to 532440324)

$

$

Not available

8

Husqvarna 871191008

Screw, Truss Hd. #10-24 unc x 1/2

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532124797

Grip, Handle
(Superseded to 532008206)

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

12

Husqvarna 532081328

Bolt, Shoulder

$6.49

$

In Stock, only 1 left!

0

13

Husqvarna 532187497

Handle, Shift
(Superseded to 584462101)

$

$

Not available

14

Husqvarna 532109313

Grommet, Rubber

$7.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532109337

Rod, Shift

$37.99

$

Usually ships in 3-10 days

0

16

Husqvarna 872110608

Bolt, Carriage 3/8-16 x 1 Gr. 5
(Superseded to 596728201)

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 532109229

Lock, Handle

$7.49

$

In Stock, only 3 left!

0

18

Husqvarna 873680600

Nut, Crownlock 3/8-16 unc

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819131611

Washer 13/32 x 1 x 11 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532109228

Lever, Lock, Handle

$13.99

$

In Stock, only 1 left!

0

21

Husqvarna 532181127

Handle
(Superseded to 532440884)

$113.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532086777

Screw, Hex Washer SLT #10-24 x .50
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

$6.49

$

In Stock, only 4 left!

0

26

Husqvarna 532159231

Cable, Clutch

$31.99

$

In Stock, Qty 6

0

27

Husqvarna 873900400

Nut, Hex Flange 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

29

Husqvarna 873731000

Nut, Keps #10-24 unc
(Superseded to 873271000)

$2.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532104164

Tie, Cable

$6.49

$

In Stock, only 1 left!

0

31

Husqvarna 532150696

Bolt, Pivot

$7.49

$

In Stock, only 3 left!

0

33

Husqvarna 872140404

Bolt, Carriage 1/4-20 unc x 1/2

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532102604

Grip, Bar, Control

$6.49

$

Usually ships in 3-10 days

0

41

Husqvarna 532102744

Clamp, Bar, Control

$

$

Not available
