DRT 900 H (960930012-03) - Husqvarna Rear-Tine Tiller (2013-03) TINE SHIELD Parts Diagram

Rear-Tine Tiller

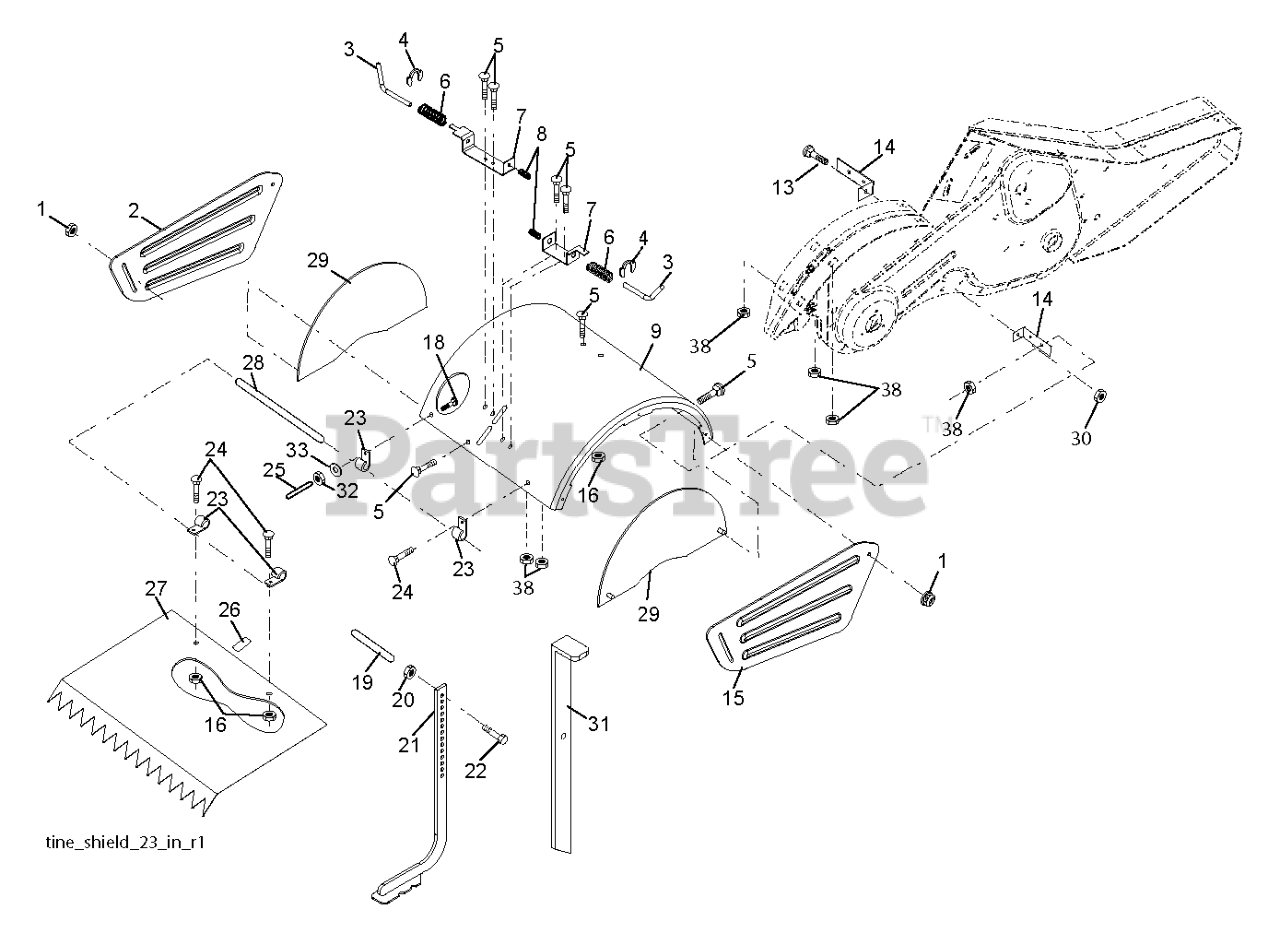

TINE SHIELD Parts Diagram

  • Title
31

Husqvarna 581826201

STAKE.DEPTH.DRAG.BLACK.TILLER

$26.99

$

Usually ships in 3-10 days

0

6

$9.49

$

In Stock, only 1 left!

0

16

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

8

Husqvarna 532109230

SPRING CRT

$6.49

$

In Stock, Qty 11

0

30

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532440452

SHIELD.PNT.SIDE.OUTER.LH.ORANG

Note: LH

$20.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532120588

PIN.HINGE.TILLER

$7.99

$

Usually ships in 3-10 days

0

32

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 532440450

SHIELD.SIDE OUTER.RH.ORANGE

Note: RH

$20.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 812000035

RING, KLIP

$7.49

$

In Stock, Qty 10

0

9

Husqvarna 532440444

SHIELD.TINE.DRT17.TILLER.ORANG

$56.99

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532125000

REPL BY 532 10 21-56
(Superseded to 532102156)

$28.99

$

Usually ships in 3-10 days

0

14

Husqvarna 581848801

BRACKET.TINE.SHIELD.BLACK
(Superseded to 584459301)

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532180847

BOLT, RDHD SQNK 5/16-18 X 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 581850801

BRACKET
(Superseded to 532008392)

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532440449

SHIELD.TINE.SIDE.ORANGE.TILLER
(Superseded to 585414301)

$

$

Not available

22

Husqvarna 874930632

BOLT.375-16

$6.99

$

In Stock, only 2 left!

0

13

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

1

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532124717

VINYL CAP TI
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

19

$

$

Not available

20

Husqvarna 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

27

Husqvarna 532440448

SHIELD.LEVELING.17".ORANGE

$79.99

$

Usually ships in 3-10 days

0

23

$6.49

$

In Stock, only 1 left!

0

3

Husqvarna 532008393

STAKE PIN TI

$31.99

$

In Stock, only 1 left!

0

26

Husqvarna 532109227

PAD IDLER TI

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0
