DRT 900 H (960930012-00) - Husqvarna Rear-Tine Tiller (2009-12) Transmission Parts Diagram

Rear-Tine Tiller

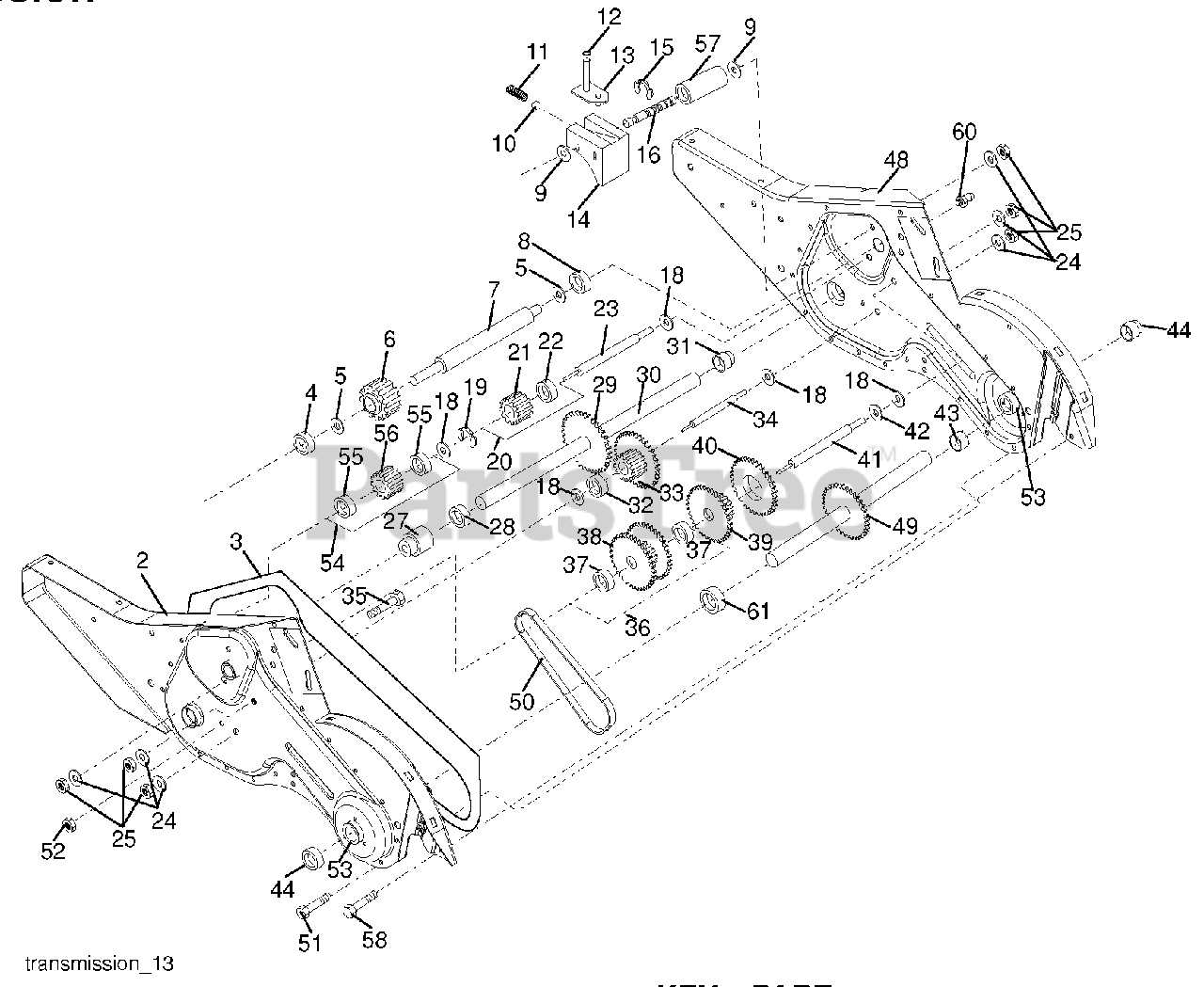

Transmission Parts Diagram

  • Title
1

Husqvarna 532188240

Trans mis sion Assembly
(Superseded to 532181104)

Note: (Includes Key Nos. 2-52)

$

$

Not available

2

Husqvarna 532188220

Gearcase, L.H. w/Bearing

Note: (Includes Key No. 4)

$157.99

$

In Stock, only 1 left!

0

3

Husqvarna 532431022

Gasket, Gearcase

$24.99

$

In Stock, Qty 8

0

4

Husqvarna 532005020

Bearing, Needle

$17.99

$

In Stock, Qty 5

0

5

Husqvarna 532001370

Washer, Thrust 5/8 x 1.10 x 1/32

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 532161520

Pinion, Input
(Superseded to 586196201)

$45.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532161518

Shaft, In put

$78.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532004895

Bearing, Needle

$17.99

$

In Stock, Qty 14

0

9

Husqvarna 532154467

Washer, Seal

$7.49

$

In Stock, only 2 left!

0

10

Husqvarna 532007392

Ball, Steel
(Superseded to 532100482)

$7.49

$

In Stock, only 1 left!

0

11

Husqvarna 532100371

Spring, Shift, Fork

$7.49

$

In Stock, only 4 left!

0

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532142145

Arm, Shift

$

$

Not available

14

Husqvarna 532008353

Fork, Shift

$34.99

$

In Stock, Qty 7

0

15

Husqvarna 812000039

Ring, Klip

$6.49

$

In Stock, Qty 7

0

16

Husqvarna 532161516

Shaft, Shift

$9.99

$

In Stock, only 1 left!

0

$7.49

$

In Stock, only 3 left!

0

19

Husqvarna 812000040

Ring, Klip

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532102114

Gear, As sem bly, Reverse Idler

Note: (Includes Key Nos. 21 and 22)

$

$

Not available

21

Husqvarna 532102115

Gear, Re verse Idler

$26.99

$

In Stock, only 1 left!

0

22

Husqvarna 532006803

Bearing, Needle

$10.99

$

In Stock, Qty 5

0

23

Husqvarna 532161527

Shaft, Re verse Idler

$24.99

$

In Stock, only 2 left!

0

24

Husqvarna 810040700

Washer, Lock 7/16
(Superseded to 539990247)

$

$

Not available

25

Husqvarna 873610700

Nut, Hex 7/16-20

$7.49

$

In Stock, only 4 left!

0

27

Husqvarna 523143009

Bearing, Shaft, Ground Drive L.H.
(Superseded to 532431219)

$

$

Not available

28

Husqvarna 532106390

Spacer 0.765 x 1.125 x 1.23

$5.99

$

In Stock, only 1 left!

0

29

Husqvarna 532102134

Chain #35-50 Pitch

$31.99

$

In Stock, only 2 left!

0

30

Husqvarna 532150737

Ground Shaft Assembly

$

$

Not available

31

Husqvarna 532143008

Bearing, Shaft, Ground Drive R.H.

$

$

Not available

32

Husqvarna 532106388

Spacer 0.70 x 1.00 x 1.150

$6.99

$

In Stock, only 1 left!

0

33

Husqvarna 532102121

Sprocket and Gear Assembly

$

$

Not available

34

Husqvarna 532102112

Shaft, Re duc tion (2nd)

$43.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532102101

Screw, Whiz, Lock 5/16-18 x 3-1/2

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532161524

Sprocket Assembly w/Bearing

Note: Includes Key Nos. 37 and 38)

$206.99

$

In Stock, only 2 left!

0

37

Husqvarna 532100413

Bearing, Needle
(Superseded to 585695501)

$24.99

$

In Stock, only 2 left!

0

38

Husqvarna 532161525

Sprocket, Tine
(Superseded to 532161524)

$206.99

$

In Stock, only 2 left!

0

39

Husqvarna 532161526

Gear, Clus ter, Red 1st & 2nd

$

$

Not available

40

Husqvarna 532105346

Gear, Re verse

$45.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532161523

Shaft, Re duc tion (1st)

$

$

Not available

42

Husqvarna 532004220

Washer, Thrust

$5.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532106146

Spacer 1.01 x 1.75 x 0.760

$34.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532155236

Seal Asm. OIl

$7.49

$

In Stock, only 3 left!

0

48

Husqvarna 532188235

Gearcase, R.H. w/Bearing
(Superseded to 532181104)

Note: (Includes Key No. 8)

$

$

Not available

49

Husqvarna 532431485

Shaft, Tine

$

$

Not available

50

Husqvarna 532106147

Chain, Roller #50-50 Pitch

$66.99

$

Usually ships in 3-10 days

0

51

Husqvarna 817720408

Screw 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532165140

Bearing Kit, Tine Shaft

$93.99

$

In Stock, only 1 left!

0

54

Husqvarna 532161528

Gear, DRT Idler w/Bearing

Note: (Includes Key No. 55)

$

$

Not available

55

Husqvarna 532003400

Bearing, Needle
(Superseded to 580755701)

$10.99

$

In Stock, only 2 left!

0

56

Husqvarna 532161529

Gear, DRT Idler
(Superseded to 532161528)

$

$

Not available

57

Husqvarna 532165889

Spacer, Split .52 x .64 x 1.04

$7.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532179520

Screw 1/4-20 x .875

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532183226

Fitting Grease

$7.49

$

In Stock, only 2 left!

0

61

Husqvarna 532431015

Spacer 1.015 x 1.50 x .656

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 532006066

Grease, Plastilube #1
(Superseded to 585517301)

$

$

Not available
