DRT 900 (960930011-00) - Husqvarna Rear-Tine Tiller (2009-10) "MAINFRAME, RIGHT SIDE" Parts Diagram

Rear-Tine Tiller

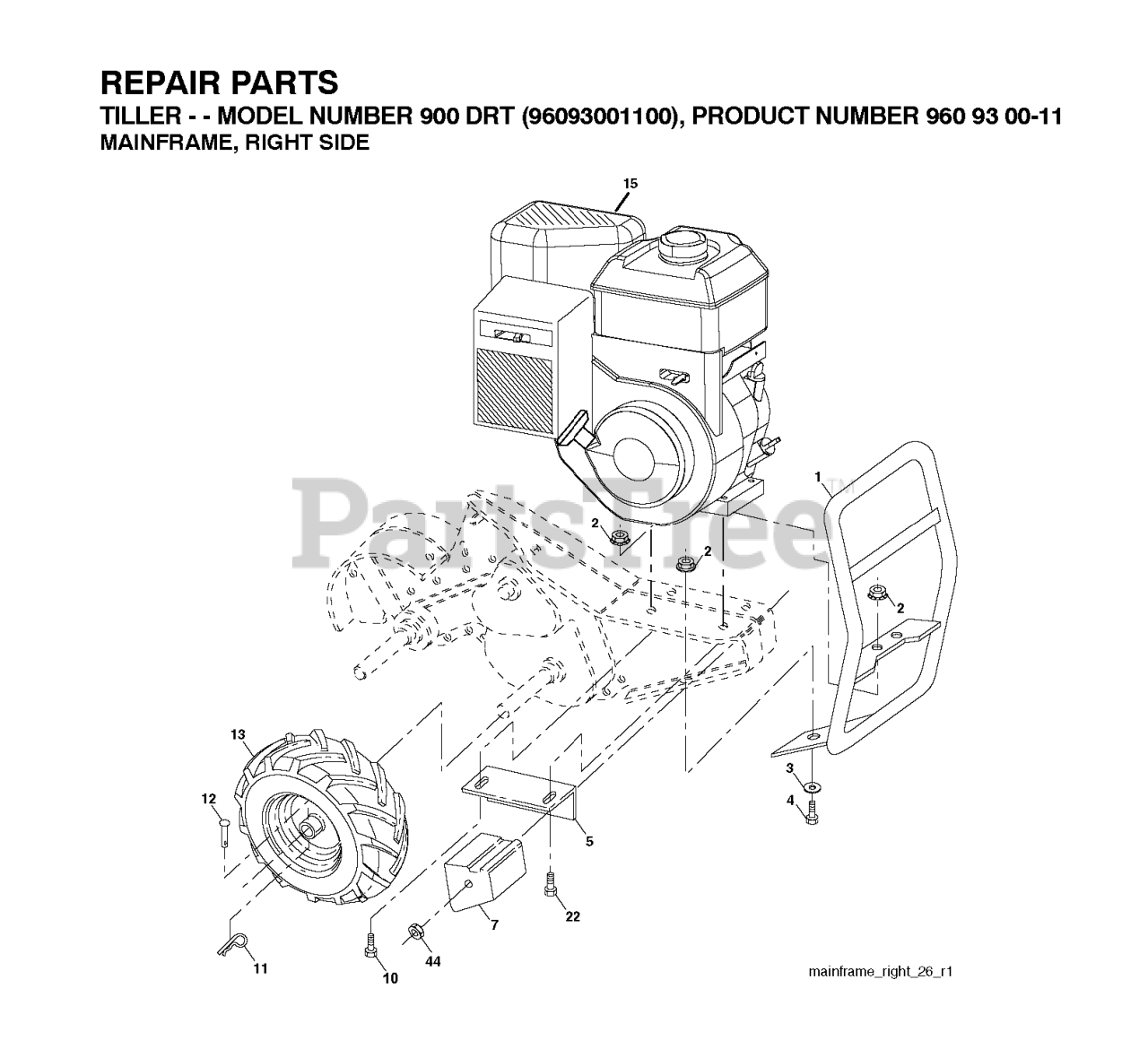

"MAINFRAME, RIGHT SIDE" Parts Diagram

  • Title

15

NEEDS DESCRIPTION

Note: "Briggs & Stratton Model 121002-1383-B8. For engine service and replacement parts, call: Briggs & Stratton 1-800-233-3723"

$

$

Not available

44

Husqvarna 873510600

NUT

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 874760524

BOLT
(Superseded to 874780524)

$

$

Not available

6

Husqvarna 874760528

BOLT, HEX 5/16-18X1-3/4

$4.99

$

In Stock, Qty 12

0

5

Husqvarna 532102332

DNO BRACKET RH CRT
(Superseded to 581864701)

$

$

Not available

13

Husqvarna 532150740

RIM.ASM.6".SILVER

$109.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532102190

TIRE.13X5-6.CHEVRON.TILLER

$93.99

$

Usually ships in 3-10 days

0

4

Husqvarna 874760512

BOLT
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 532185190

RP.BUMPER.ASM.TILLER.
(Superseded to 583879301)

$96.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532124718

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

12

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

7

Husqvarna 532102173

COUNTERWEIGHT, RH

$42.99

$

Usually ships in 3-10 days

0
