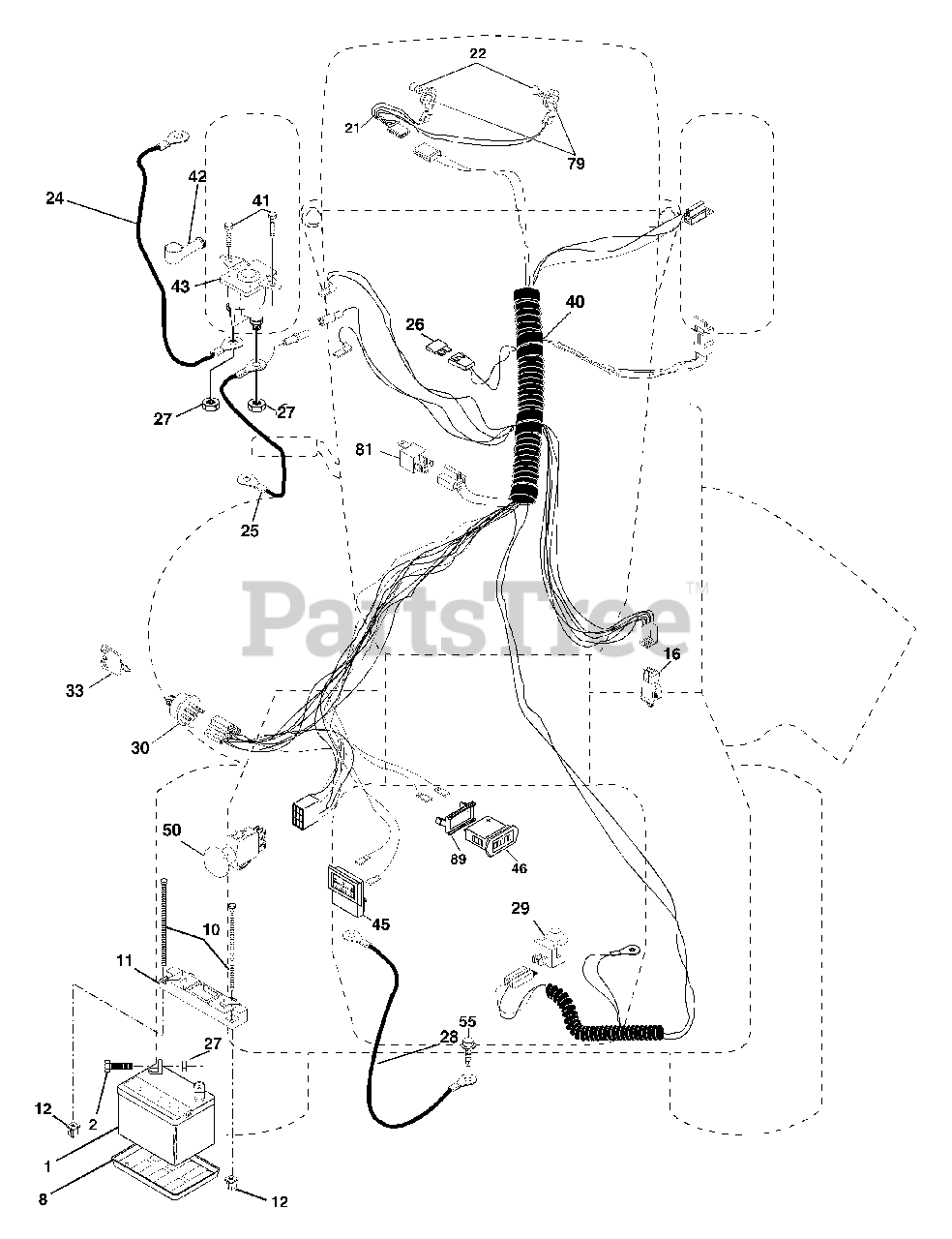

DPR 22H48ST B - Poulan Pro Lawn Tractor (2001) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Electrolux/AYP 163465

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 74760412

Bolt Hex Hd 1/4-20 UNC X 3/4
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 7603J

Tray, Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 145211

Bolt, BTR FRT 1/4-20 x 7.5
(Superseded to 532145211)

$

$

Not available

11

Electrolux/AYP 150109

Hold Down Battery, Front
(Superseded to 532150109)

$

$

Not available

12

Electrolux/AYP 145769

Nut, Push, Nylon
(Superseded to 532145769)

$

$

Not available

16

Electrolux/AYP 153664

Switch Interlock Push-In
(Superseded to 532176138)

$22.99

$

In Stock, Qty 7

0

21

Electrolux/AYP 166184

Harness Asm Light W/4152j
(Superseded to 532166184)

$

$

Not available

22

Electrolux/AYP 4152J

Bulb Light #1156
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 8860R

Cable Battery
(Superseded to 583778001)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 146148

Cable Batterywire
(Superseded to 532146148)

$18.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 175158

Fuse
(Superseded to 532175158)

$7.49

$

In Stock, only 2 left!

0

27

Murray 73510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 145491

Cable Ground
(Superseded to 532145491)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 160784

Switch Plunger Normal OP Olive
(Superseded to 532160784)

$20.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 175566

Switch Ign 4 pos w/lights
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

33

Electrolux/AYP 140401

Key Ign
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

40

Electrolux/AYP 179413

Harness Ign.

$83.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 17720408

Bolt Blk Fin Hex 1/4-20 x 1/2
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

Cover Terminal Red
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 178861

Solenoid
(Superseded to 532146154)

$24.99

$

In Stock, only 2 left!

0

45

Electrolux/AYP 122822X

Ammeter Rectangular
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 169635

Hourmeter Snap-In
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 174653

Switch, PTO
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

55

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 163996

Bulbholder
(Superseded to 532175688)

$44.99

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 109748X

Relay Asm
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0

89

Electrolux/AYP 169639

Bracket Snap-In Hourmeter
(Superseded to 532169639)

$6.49

$

Usually ships in 3-10 days

0
