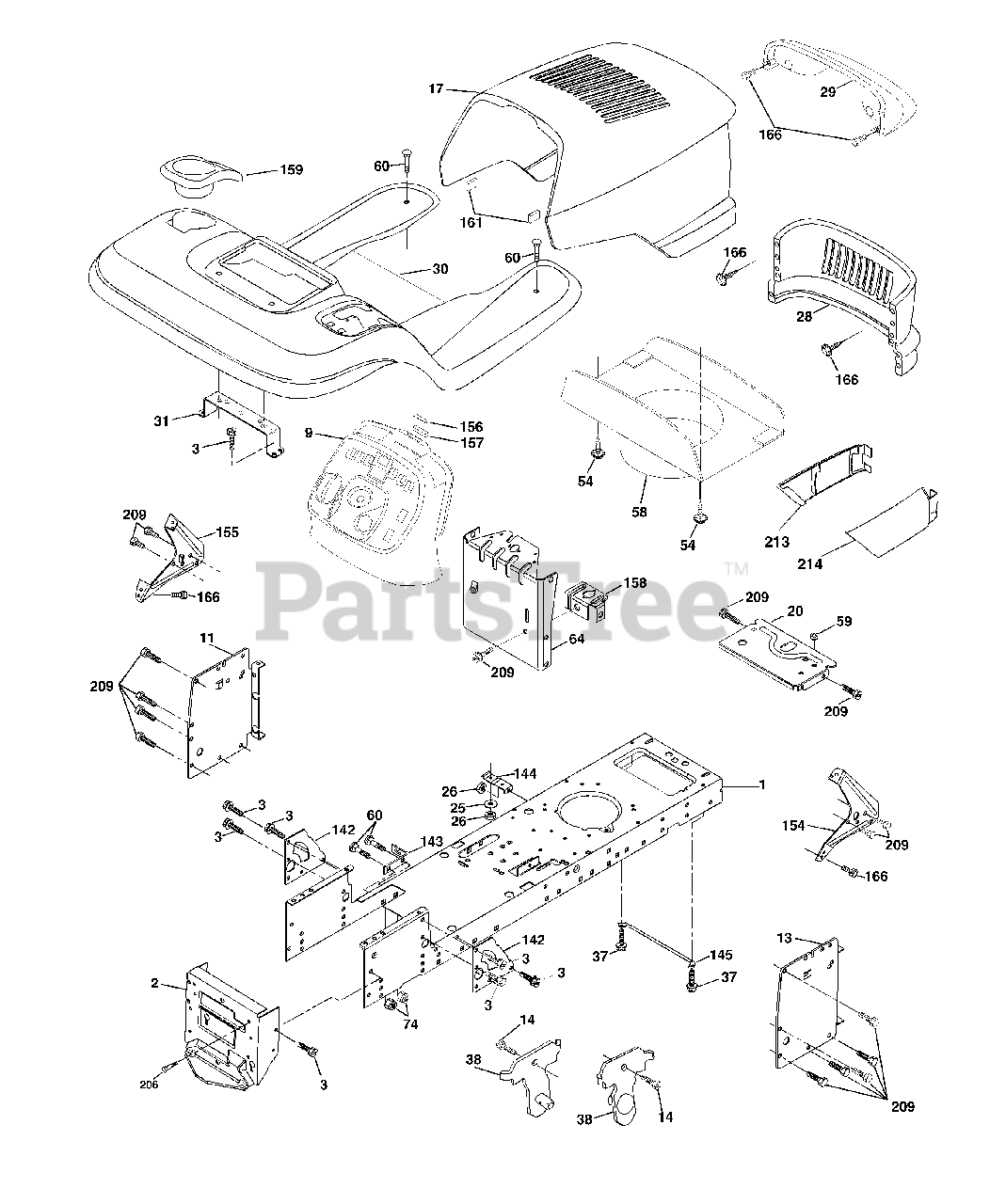

DPR 22H48ST A - Poulan Pro Lawn Tractor (2001) Chassis And Enclosures Parts Diagram

Lawn Tractor

Chassis And Enclosures Parts Diagram

  • Title
1

Electrolux/AYP 174619

Chassis
(Superseded to 532174619)

$433.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 176554

Drawbar
(Superseded to 532176554)

$43.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17060612

Screw 3/8-16x3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

9

Electrolux/AYP 163976X428

Dash
(Superseded to 583716201)

$

$

Not available

11

Electrolux/AYP 167203

Panel Dash Lh
(Superseded to 532167203)

$24.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 167202

Panel Dash Rh
(Superseded to 532178298)

$

$

Not available

14

Electrolux/AYP 17490608

Screw Thdrol 3/8-16 x 1/2
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 175259X428

Hood
(Superseded to 532194976)

$121.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 162026

Plate Battery
(Superseded to 532162026)

$

$

Not available

25

Electrolux/AYP 19131312

Washer 13/32 X 13/16 X 12 Ga
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

26

Electrolux/AYP 73800600

Nut Lock Hex W/Ins 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 175289X428

Grille
(Superseded to 532187114)

$

$

Not available

29

Electrolux/AYP 160568

Lens
(Superseded to 583125001)

$

$

Not available

$

$

Not available

31

Electrolux/AYP 139976

Bracket Fender
(Superseded to 532139976)

$17.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 17490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 175710

Bracket, Asm. Pivot Mower Rear
(Superseded to 532175710)

$11.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 161464

Screw Hex Wshd 8-18 x 7/8
(Superseded to 532161464)

$

$

Not available

58

Electrolux/AYP 161236

Duct Hood
(Superseded to 583192101)

$34.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 110436X

Bushing Snap

$

$

Not available

60

Electrolux/AYP 72140606

Bolt Rd Hd Sqnk 3/8-16 Unc x 3/4
(Superseded to 872140606)

$

$

Not available

64

Electrolux/AYP 174997

Dash Lower
(Superseded to 532174997)

$30.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 73680600

Nut Crownlock 3/8-16 Unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

142

Electrolux/AYP 175702

Plate Reinforcement STLT
(Superseded to 532175702)

$9.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 154966

Bracket Swaybar Chassis
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Electrolux/AYP 175582

Bracket Footrest
(Superseded to 532175582)

$7.49

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

154

Electrolux/AYP 161897

Bracket Dash Rh
(Superseded to 532161897)

$7.49

$

Usually ships in 3-10 days

0

155

Electrolux/AYP 161900

Bracket Dash Lh
(Superseded to 532161900)

$7.49

$

Usually ships in 3-10 days

0

156

Electrolux/AYP 163805

Striker Plate

$

$

Not available

157

Electrolux/AYP 163806

Magnet Stealth

$

$

Not available

158

Electrolux/AYP 162037

Bracket Parking Brake
(Superseded to 532162037)

$

$

Not available

159

Electrolux/AYP 155123X428

Cupholder
(Superseded to 532155123)

$

$

Not available

161

Electrolux/AYP 164655

Extrusion Bumper
(Superseded to 532164655)

$8.99

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 164863

Screw Hw Hd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

206

Electrolux/AYP 170165

Bolt Shoulder 5/16-18
(Superseded to 532170165)

$4.99

$

In Stock, Qty 5

0

209

Electrolux/AYP 17000612

Screw Hexwsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

213

Electrolux/AYP 169848X428

Skirt Grille Lh
(Superseded to 532187112)

$

$

Not available

214

Electrolux/AYP 169847X428

Skirt Grille Rh
(Superseded to 532187111)

$39.99

$

Usually ships in 3-10 days

0
