DPR 22H46ST B - Poulan Pro Lawn Tractor (2001) Mower Lift Parts Diagram

Lawn Tractor

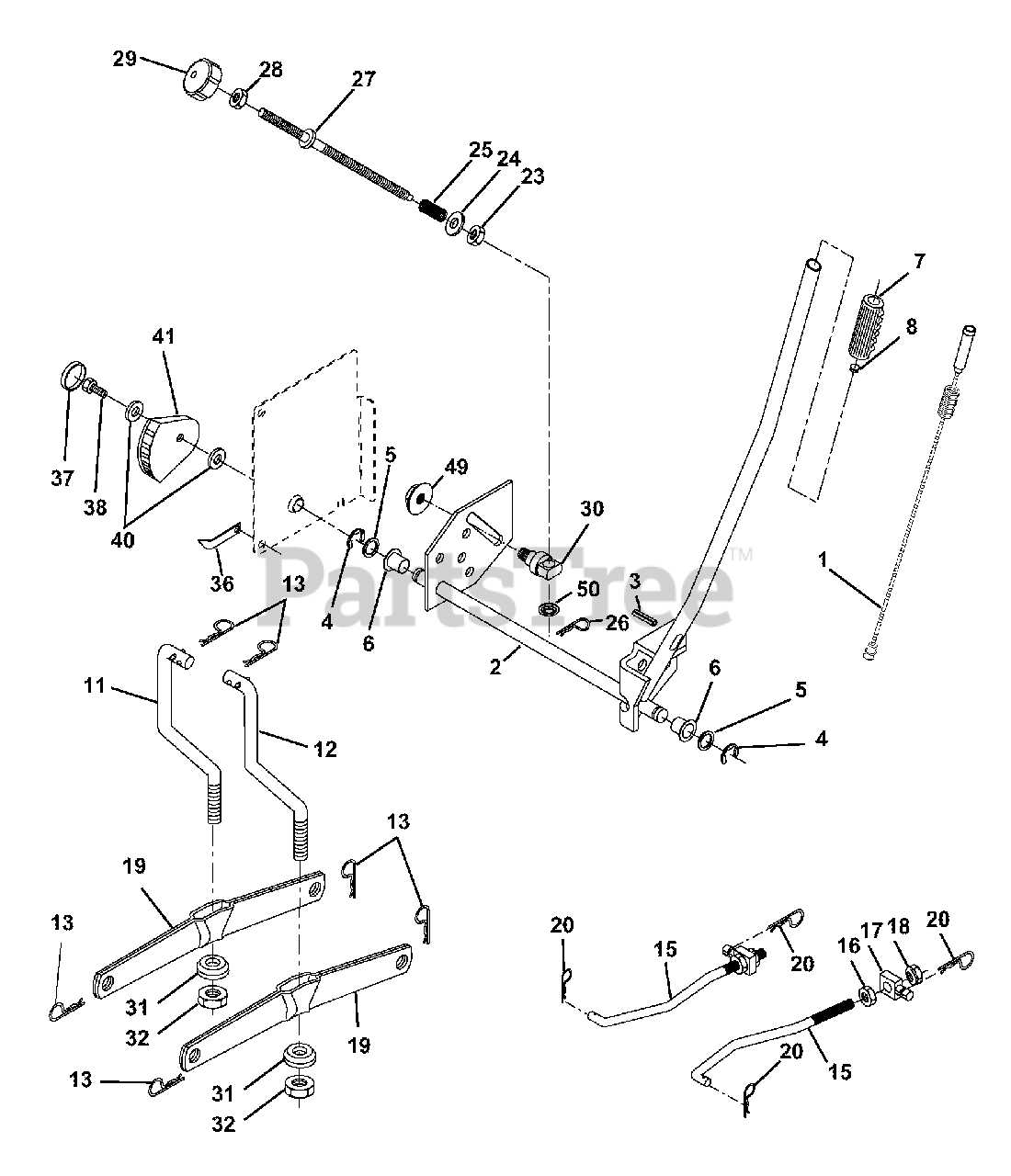

Mower Lift Parts Diagram

  • Title

1

Electrolux/AYP 159461

Wire Asm Inner/Sprg W/plunger
(Superseded to 532159461)

$15.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 159476

Shaft Asm Lift RH w/Inf
(Superseded to 532159476)

$

$

Not available

3

Electrolux/AYP 138284

Pin Groove
(Superseded to 532138284)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 12000002

E Ring #5133-62

$

$

Not available

5

Electrolux/AYP 19211621

Washer 21/32 X 1 X 21 Ga
(Superseded to 819211621)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 120183X

Bearing Nylon Blk 629 Id
(Superseded to 532120183)

$6.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 125631X

Grip Handle
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 170770

Button Plunger
(Superseded to 583047801)

$

$

Not available

11

Electrolux/AYP 139865

Link Lift LH Fixed Length
(Superseded to 532151141)

$26.99

$

Usually ships in 3-10 days

0

12

Murray 139866

Link Lift RH Fixed Length
(Superseded to 532145536)

$26.99

$

In Stock, only 3 left!

0

13

Murray 4939M

Retainer Spring

$

$

Not available

15

Electrolux/AYP 173288

Link Front
(Superseded to 532173288)

$13.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 73350800

Nut Jam Hex 1/2-13 Unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

17

Electrolux/AYP 130171

Trunnion Blk Zinc
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

Nut Lock w/Wsh 1/2-13unc
(Superseded to 596433401)

$3.99

$

In Stock, Qty 18

0

19

Electrolux/AYP 139868

Arm Suspension Rear
(Superseded to 532139868)

$15.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 163552

Retainer Spring
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 110807X

Nut Special
(Superseded to 532110807)

$

$

Not available

24

Electrolux/AYP 19131016

Washer 13/32 X 5/8 X 16 Ga
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

25

Electrolux/AYP 164024

Spring
(Superseded to 532164024)

$4.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 169484

Retainer Clip
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 164543

Rod Adj Lift
(Superseded to 532164543)

$8.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 73350600

Nut Hex Jam 3/8-16 Unc
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 138057

Knob Inf 3/8-16 Unc Blk W/sym
(Superseded to 532138057)

$8.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 150233

Trunnion Infin Height
(Superseded to 532150233)

$12.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 169865

Bearing Pvt Lift
(Superseded to 532169865)

$

$

Not available

32

Electrolux/AYP 73540600

Nut Crownlock 3/8 - 24
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 155097

Pointer Height Indicator
(Superseded to 532155097)

$

$

Not available

37

Electrolux/AYP 123935X

Plug Hole Blk 1.485/1.515 Dia.
(Superseded to 532123935)

$5.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 17060516

Screw 5/16-18 x 1
(Superseded to 817060516)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 19112410

Washer 11/32 x 1-1/2 10 Ga.
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 155098

Indicator Height STLT
(Superseded to 532155098)

$6.49

$

Usually ships in 3-10 days

0

49

Murray 145212

Nut Hex Flange Lock
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Electrolux/AYP 110452X

Nut PUsh Phos & Oil
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0
