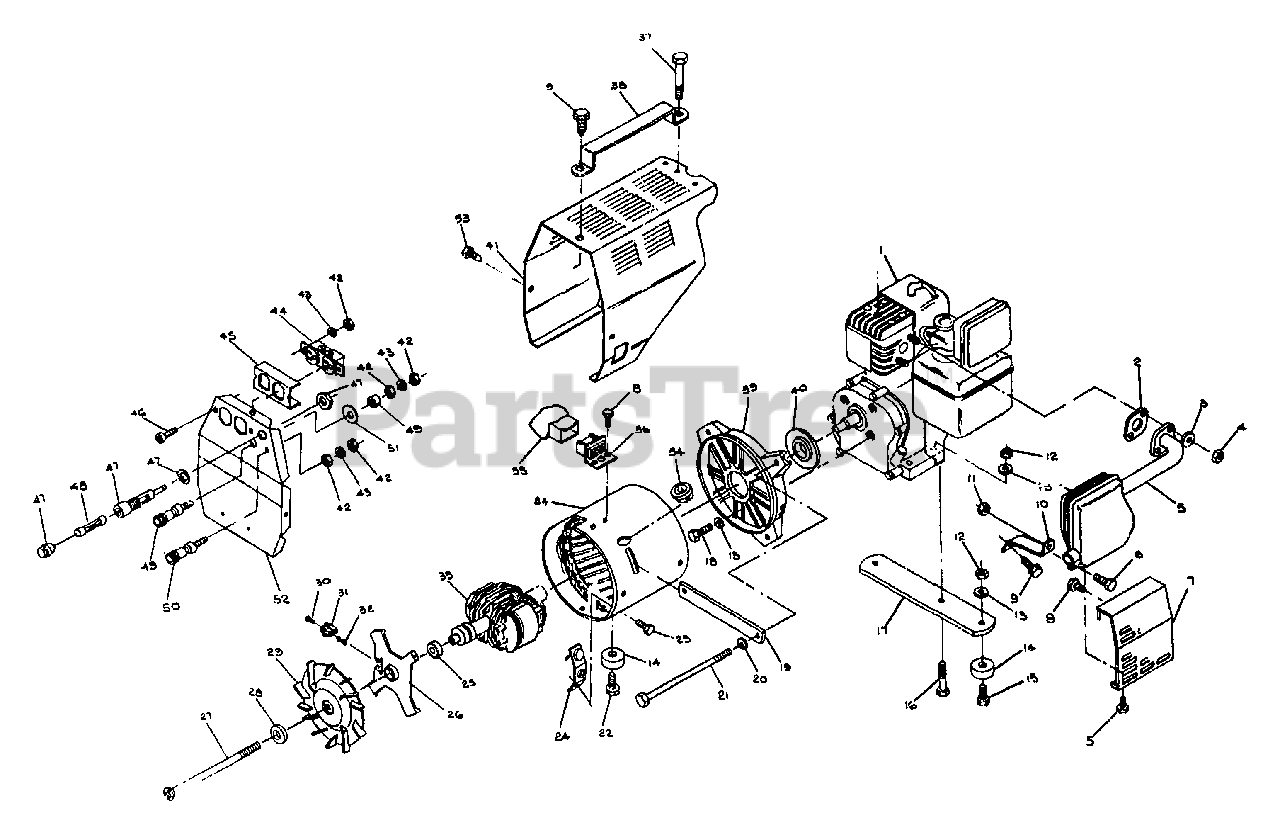

DPG850 (8779-0) - Generac 750 Watt Portable Generator AC Generator Parts Diagram

750 Watt Portable Generator

AC Generator Parts Diagram

  • Title

1

Briggs & Stratton 00761892

ENGINE ASSEMBLY

$

$

Currently unavailable

2

Briggs & Stratton 00763042

GASKET, Exhaust

$

$

Currently unavailable

3

Briggs & Stratton 00722473

WASHER, Flat - M6

$

$

Currently unavailable

4

Briggs & Stratton 00749813

NUT, Hex - M6-1.00

$

$

Currently unavailable

5

Briggs & Stratton 00761893

MUFFLER, Exhaust

$

$

Currently unavailable

6

Briggs & Stratton 00743116

CAPSCREW, Hex Head - M6-1.00 x 12 mm

$

$

Currently unavailable

7

Briggs & Stratton 00763027

SHIELD, Heat

$

$

Currently unavailable

8

Briggs & Stratton 00756892

SCREW (Crimptite) - No. 10-24 x 3/8"

$

$

Currently unavailable

9

Briggs & Stratton 00758442

SCREW (Crimptite) - 1/4"-20

$

$

Currently unavailable

10

Briggs & Stratton 00783018

SUPPORT, Exhaust Muffler

$

$

Currently unavailable

11

Briggs & Stratton 00752857

NUT, Flanged - M6-1.00

$

$

Currently unavailable

12

Briggs & Stratton 00722259

NUT, Hex - 5/16"-18

$

$

Currently unavailable

13

Briggs & Stratton 00722129

WASHER, Lock - 5/16"

$

$

Currently unavailable

14

Briggs & Stratton 00763015

MOUNT, Vibration

$

$

Currently unavailable

15

Briggs & Stratton 00722142

CAPSCREW, Hex Head - 5/16"-18 x 3/4"

$

$

Currently unavailable

16

Briggs & Stratton 00722283

CAPSCREW, Hex Head - 5/16"-18 x 1 1/2"

$

$

Currently unavailable

17

Briggs & Stratton 00763012

SUPPORT, Engine

$

$

Currently unavailable

18

Briggs & Stratton 00722336

CAPSCREW, Hex Head - 5/16"-24 x 3/4"

$

$

Currently unavailable

19

Briggs & Stratton 00744338

BAR, Stator Bolt

$

$

Currently unavailable

20

Briggs & Stratton 00722097

WASHER, Lock - 1/4"

$

$

Currently unavailable

21

Briggs & Stratton 00744395J

CAPSCREW, Hex Head - 1/4"-20 x 5"

$

$

Currently unavailable

22

Briggs & Stratton 00729026

SCREW (Taptite) - 1/4"-20 x 1/2"

$

$

Currently unavailable

23

Briggs & Stratton 00724489

SCREW (Taptite) - No. 10-32 x 3/8"

$

$

Currently unavailable

24

Briggs & Stratton 00744722

DIODE ASSEMBLY

$

$

Currently unavailable

25

Briggs & Stratton 00724049

BEARING, Ball

$

$

Currently unavailable

26

Briggs & Stratton 00744943

PLATE, Bearing Carrier

$

$

Currently unavailable

27

Briggs & Stratton 00763010

BOLT, Rotor

$

$

Currently unavailable

28

Briggs & Stratton 00763011

WASHER - Special

$

$

Currently unavailable

29

Briggs & Stratton 00744331

FAN

$

$

Currently unavailable

30

Briggs & Stratton 00725105

SCREW (Sims) - No. 6-32 x 1/4"

$

$

Currently unavailable

31

Briggs & Stratton 00723877D

HOLDER, Brush

$

$

Currently unavailable

32

Briggs & Stratton 007A24044A

BRUSH

$

$

Currently unavailable

33

Briggs & Stratton 00763016

ROTOR ASSEMBLY

$

$

Currently unavailable

34

Briggs & Stratton 00763017

STATOR ASSEMBLY

$

$

Currently unavailable

35

Briggs & Stratton 00728293

RECTIFIER ASSEMBLY, Bridge

$

$

Currently unavailable

36

Briggs & Stratton 00751721

SUPPORT, Bridge Rectifier

$

$

Currently unavailable

37

Briggs & Stratton 00751767

SCREW, Hex Head Machine - M6-1.00 x 45 mm (Grade 5)

$

$

Currently unavailable

38

Briggs & Stratton 00763013

HANDLE, Carrying

$

$

Currently unavailable

39

Briggs & Stratton 00762257

HOUSING, Adapter

$

$

Currently unavailable

40

Briggs & Stratton 00762258

RING, Adapter

$

$

Currently unavailable

41

Briggs & Stratton 00763803

WRAPPER, Generator

$

$

Currently unavailable

42

Briggs & Stratton 00722471

NUT, Hex - No. 8-32

$

$

Currently unavailable

43

Briggs & Stratton 00722264

WASHER, Lock - No. 8

$

$

Currently unavailable

44

Briggs & Stratton 00763025

RECEPTACLE - "Duplex" 120 VAC

$

$

Currently unavailable

45

Briggs & Stratton 00763024

INSULATOR

$

$

Currently unavailable

46

Briggs & Stratton 00728985

SCREW, Pan Head Machine - No. 8-32 x 3/8"

$

$

Currently unavailable

47

Briggs & Stratton 00732300

HOLDER, Fuse

$

$

Currently unavailable

48

Briggs & Stratton 00722668

FUSE, Battery Charging - 30 Ampere

$

$

Currently unavailable

49

Briggs & Stratton 00725367

POST, Battery Charge Terminal - Red

$

$

Currently unavailable

50

Briggs & Stratton 00725368

POST, Battery Charge Terminal - Black

$

$

Currently unavailable

51

Briggs & Stratton 00730798

WASHER, Fiber

$

$

Currently unavailable

52

Briggs & Stratton 00763602

PANEL, End

$

$

Currently unavailable

53

Briggs & Stratton 00763036

SCREW (Crimptite) - No. 8-18 x 3/8"

$

$

Currently unavailable

54

Briggs & Stratton 00723484D

BUSHING

$

$

Currently unavailable

Briggs & Stratton 00763806

MANUAL, Instructions and Parts

$

$

Currently unavailable

Briggs & Stratton 007A25383

CABLE, Battery Charging

$

$

Currently unavailable
