DPG2250 (8719-0) - Generac 2,250 Watt Portable Generator Engine Sheet Metal DPG-2250 No. 61796 Parts Diagram

2,250 Watt Portable Generator

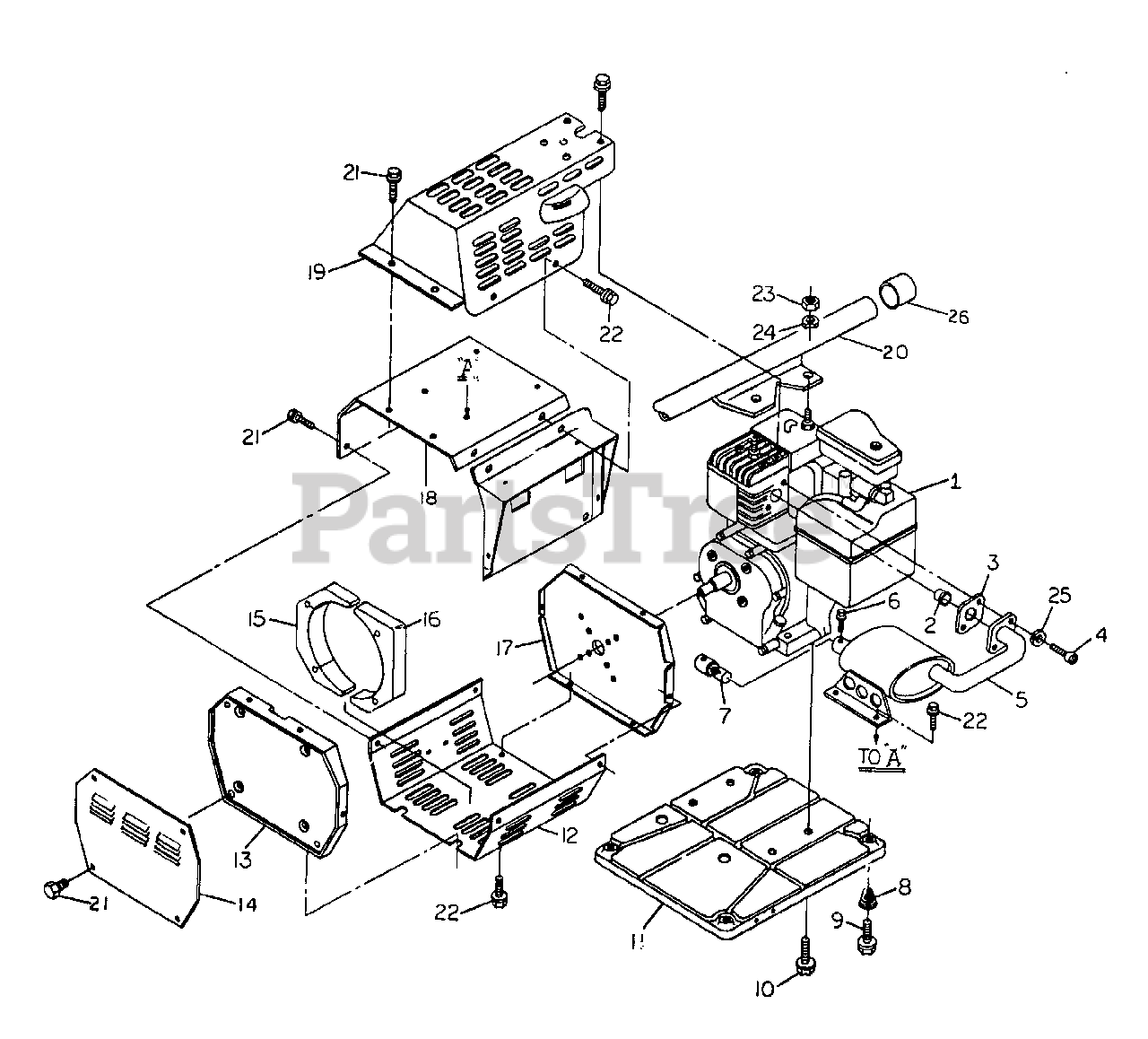

Engine Sheet Metal DPG-2250 No. 61796 Parts Diagram

  • Title
1

Briggs & Stratton 00758892

ENGINE - 5 Horsepower

$

$

Currently unavailable

2

Briggs & Stratton 00760211

LINER, Exhaust Port

$

$

Currently unavailable

3

Briggs & Stratton 00758894

GASKET, Exhaust

$

$

Currently unavailable

4

Briggs & Stratton 00736781

CAPSCREW, Hex Head - 1/4"-20 x 3/4"

$

$

Currently unavailable

5

Briggs & Stratton 00758195

MUFFLER ASSEMBLY, Exhaust

$

$

Currently unavailable

6

Briggs & Stratton 00722774

SCREW, Sheet Metal - No. 8 x 3/8"

$

$

Currently unavailable

7

Briggs & Stratton 00759604

SCREEN, Spark Arrestor

$

$

Currently unavailable

8

Briggs & Stratton 00723594

SPRING (without Loop)

$

$

Currently unavailable

9

Briggs & Stratton 00724979

SCREW - 5/16" x 5/8" long

$

$

Currently unavailable

10

Briggs & Stratton 00759637

SCREW - 3/8"-16 x 3/4"

$

$

Currently unavailable

$

$

Currently unavailable

12

Briggs & Stratton 00758876A

WRAPPER, Lower Generator

$

$

Currently unavailable

$

$

Currently unavailable

14

Briggs & Stratton 00761771

COVER, End Panel

$

$

Currently unavailable

15

Briggs & Stratton 00758887B

BAFFLE, Generator Air (Left)

$

$

Currently unavailable

16

Briggs & Stratton 00758887C

BAFFLE, Generator Air (Right)

$

$

Currently unavailable

17

Briggs & Stratton 00760209

ADAPTER, Generator Sheet Metal

$

$

Currently unavailable

18

Briggs & Stratton 00761763A

WRAPPER, Upper Generator

$

$

Currently unavailable

19

Briggs & Stratton 00758873

COVER, Muffler and Head

$

$

Currently unavailable

20

Briggs & Stratton 00761769

HANDLE, Carrying

$

$

Currently unavailable

21

Briggs & Stratton 00759635

SCREW - No. 8 x 3/8"

$

$

Currently unavailable

22

Briggs & Stratton 00756892

SCREW - No. 10-24 x 3/8"

$

$

Currently unavailable

23

Briggs & Stratton 00722259

NUT, Hex - 5/16"-18

$

$

Currently unavailable

24

Briggs & Stratton 00722129

WASHER, Lock - 5/16"

$

$

Currently unavailable

25

Briggs & Stratton 00750992

WASHER, Exhaust Manifold

$

$

Currently unavailable

26

$

$

Currently unavailable
