DMS 160 AT - Husqvarna Drilling Machine System (2007-02) ASSEMBLY Parts Diagram

Drilling Machine System

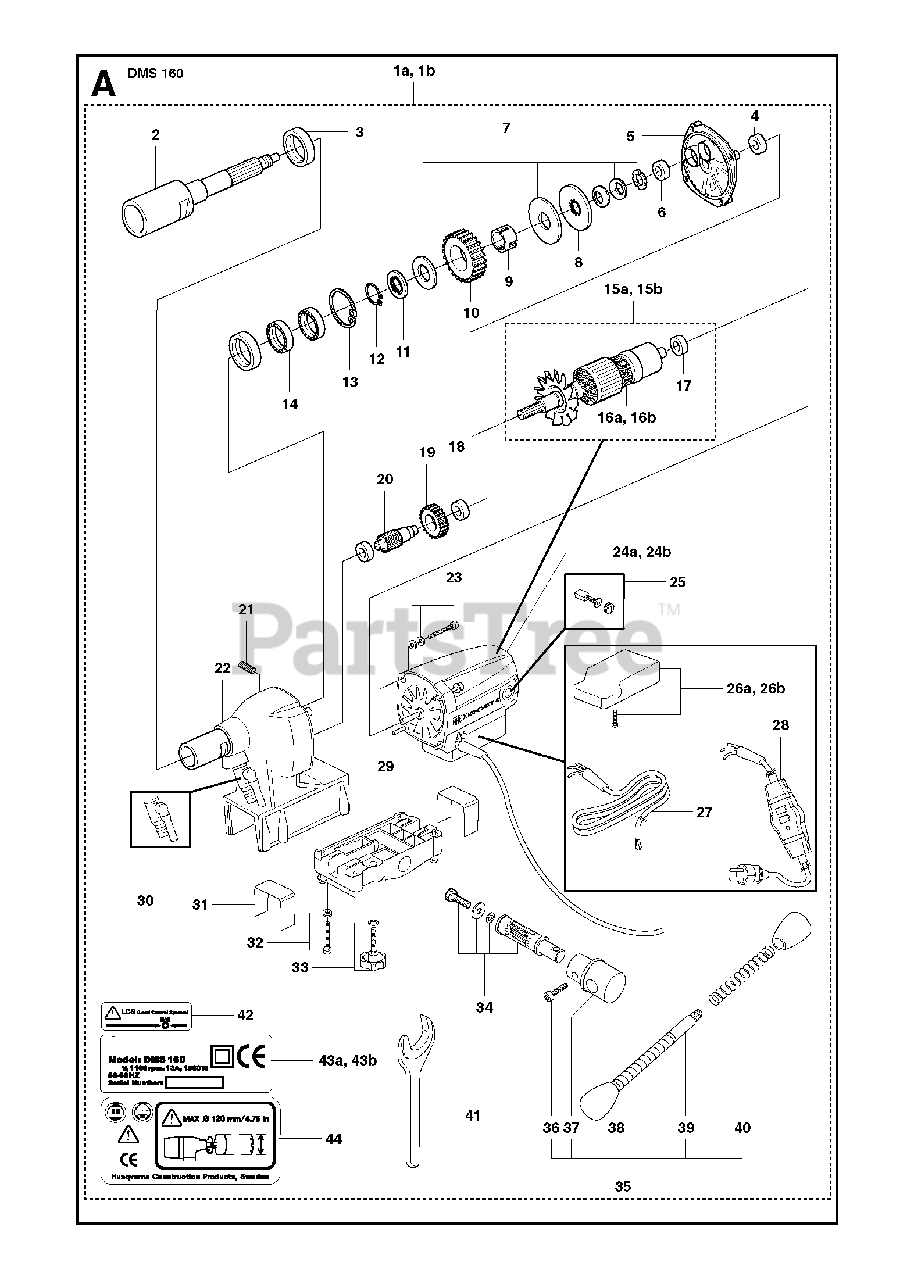

ASSEMBLY Parts Diagram

  • Title

1a

Husqvarna Construction 544 42 76-01

MOTORIncl. 2-7, 8-15a, 18-35, 41-44

$

$

Not available

1b

Husqvarna Construction 544 42 76-02

MOTORIncl. 2-7, 8-15b, 18-35, 41-44

$

$

Not available

2

Husqvarna Construction 544 83 73-01

SHAFT

$

$

Not available

3

Husqvarna Construction 544 83 74-01

SEALING

$24.50

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 544 83 87-01

BALL BEARING

$

$

Not available

5

Husqvarna Construction 544 83 86-01

LID

$

$

Not available

6

Husqvarna Construction 544 83 85-01

BALL BEARING

$17.50

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 544 83 88-01

SLIP RING HOLDER

$40.83

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 544 83 83-01

SPACER RING

$

$

Not available

9

Husqvarna Construction 544 83 81-01

SLEEVE

$

$

Not available

10

Husqvarna Construction 544 83 80-01

GEAR WHEEL

$

$

Not available

11

Husqvarna Construction 544 83 78-01

SPACER RING

$14.00

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 544 83 77-01

CIRCLIP

$1.17

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 544 83 76-01

CIRCLIP

$1.17

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 544 83 75-01

BALL BEARING

$17.50

$

Usually ships in 3-10 days

0

15a

Husqvarna Construction 544 83 89-01

ROTORIncl. 16a, 17

$

$

Not available

15b

Husqvarna Construction 544 83 89-02

ROTORIncl. 16b, 17

$

$

Not available

16a

Husqvarna Construction 544 83 91-01

ROTOR

$

$

Not available

16b

Husqvarna Construction 544 83 91-02

ROTOR

$

$

Not available

17

Husqvarna Construction 544 83 85-01

BALL BEARING

$17.50

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 544 83 85-01

BALL BEARING

$17.50

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 544 83 92-01

GEAR WHEEL

$

$

Not available

20

Husqvarna Construction 544 83 95-01

GEAR WHEEL SHAFT

$

$

Not available

21

Husqvarna Construction 544 83 99-01

PLUG

$

$

Not available

22

Husqvarna Construction 544 43 24-01

GEAR HOUSING ASSY

$

$

Not available

23

Husqvarna Construction 544 83 98-01

SCREW KIT

$

$

Not available

24a

Husqvarna Construction 544 42 88-01

MOTOR

$

$

Not available

24b

Husqvarna Construction 544 42 88-02

MOTOR

$

$

Not available

25

Husqvarna Construction 544 42 91-01

CARBON BRUSH

$

$

Not available

26a

Husqvarna Construction 544 42 95-01

ELECTRONIC BOX

$

$

Not available

26b

Husqvarna Construction 544 42 95-02

ELECTRONIC BOX

$

$

Not available

27

Husqvarna 544 13 24-01

CABLE

$

$

Not available

28

Husqvarna Construction 544 43 00-01

CABLE KIT

$

$

Not available

29

Husqvarna Construction 544 43 01-01

BACKPLATE

$

$

Not available

30

Husqvarna Construction 544 43 26-01

TAP

$

$

Not available

31

Husqvarna Construction 544 43 30-01

BUSHINGIncl. two pieces

$

$

Not available

32

Husqvarna Construction 544 84 02-01

SCREW KIT

$

$

Not available

33

Husqvarna Construction 544 43 02-01

LOCK

$

$

Not available

34

Husqvarna Construction 544 43 06-01

SHAFT ASSY

$

$

Not available

35

Husqvarna Construction 544 43 16-01

HANDLE ASSYIncl. 36-40

$

$

Not available

36

Husqvarna Construction 544 43 21-01

SCREW

$

$

Not available

37

Husqvarna Construction 544 43 20-01

HANDLE SLEEVE

$

$

Not available

38

Husqvarna Construction 544 42 80-01

KNOB

$

$

Not available

39

Husqvarna Construction 544 43 17-01

SHAFT

$

$

Not available

40

Husqvarna Construction 544 43 19-01

SPRING

$

$

Not available

41

Husqvarna Construction 544 42 72-01

FILTER

$

$

Not available

42

Husqvarna Construction 544 42 79-01

LABEL

$

$

Not available

43a

Husqvarna Construction 544 42 77-01

LABEL

$

$

Not available

43b

Husqvarna Construction 544 42 77-02

LABEL

$

$

Not available

44

Husqvarna Construction 544 42 78-01

LABEL

$

$

Not available
