DMS 160 AT - Husqvarna Drilling Machine System (2007-02) ASSEMBLY Parts Diagram

Drilling Machine System

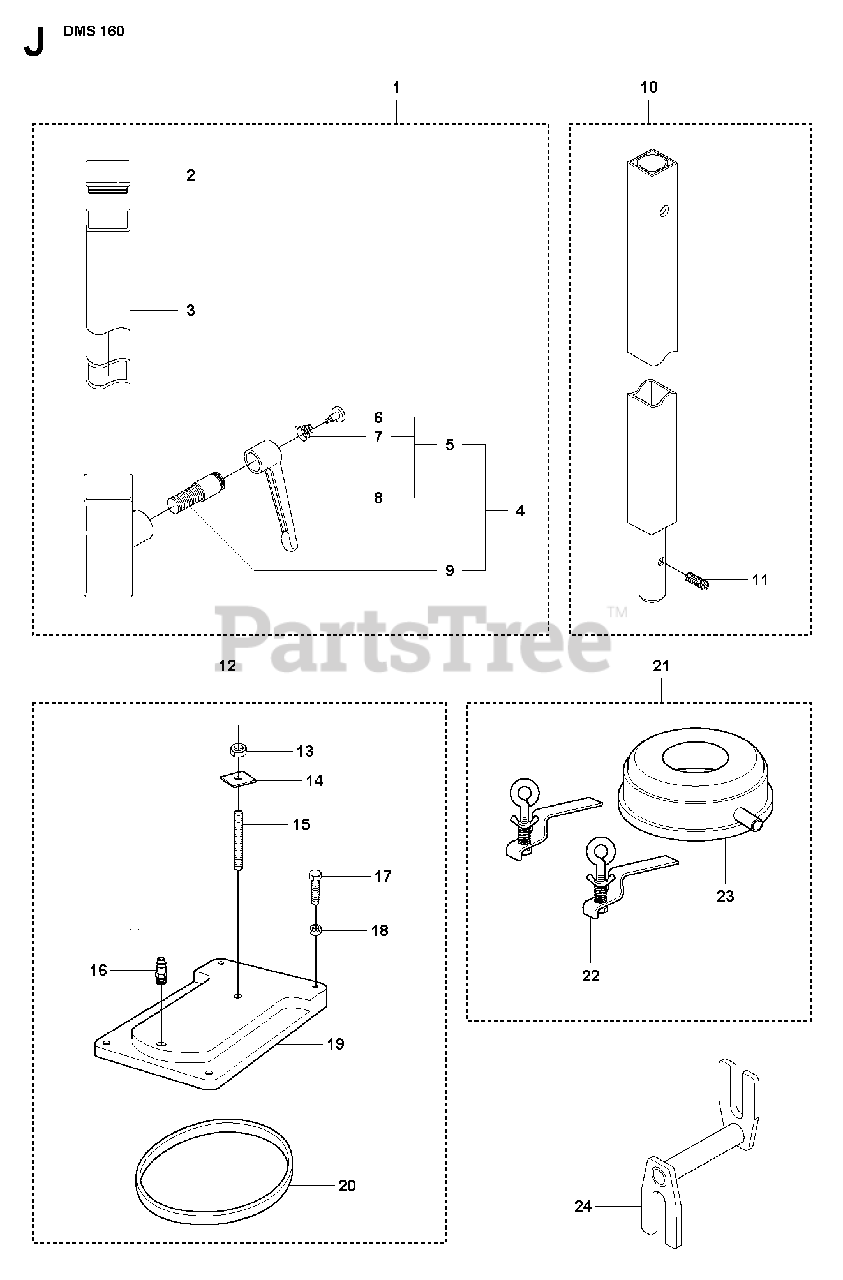

ASSEMBLY Parts Diagram

  • Title

1

Husqvarna Construction 506 40 85-06

PIPEIncl. 2-4

$

$

Not available

2

Husqvarna Construction 531 14 06-20

PLUG

$5.25

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 531 14 08-29

PIPE

$

$

Not available

4

Husqvarna Construction 506 40 77-13

KNOBIncl. 5, 9

$

$

Not available

5

Husqvarna 501 38 46-03

HANDLEIncl. 6-8

$

$

Not available

6

Husqvarna 501 38 60-01

SCREW

$

$

Not available

7

Husqvarna 501 38 47-01

SPRING

$

$

Not available

8

Husqvarna Construction 504 01 81-01

HANDLE

$

$

Not available

9

Husqvarna Construction 544 23 56-02

SCREW

$38.38

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 506 40 05-04

PIPEIncl. 11

$711.67

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 531 14 08-31

STOP SCREW

$44.33

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 544 45 84-01

VACUUM PLATEIncl. 13-20

$

$

Not available

13

Husqvarna Construction 544 96 44-01

NUT

$

$

Not available

14

Husqvarna Construction 544 45 89-01

WASHER

$

$

Not available

15

Husqvarna Construction 544 45 88-01

SCREW

$

$

Not available

16

Husqvarna Construction 544 45 87-01

VACUUM INLET CONNECT

$

$

Not available

17

Husqvarna Construction 502 30 01-01

ADJUSTMENT SCREW

$

$

Not available

18

Husqvarna Construction 531 14 08-25

NUT

$

$

Not available

19

Husqvarna Construction 544 45 85-01

PLATE

$

$

Not available

20

Husqvarna Construction 544 45 86-01

GASKET

$

$

Not available

21

Husqvarna Construction 544 45 93-01

COLLECTORIncl. 22, 23

$

$

Not available

22

Husqvarna Construction 544 46 02-01

SCREW KIT

$

$

Not available

23

Husqvarna Construction 544 46 01-01

COLLECTOR

$

$

Not available

24

Husqvarna Construction 531 14 06-46

BRACKET

$

$

Not available
