DMB 21 P4 (UT-30110) - Homelite 21" Maxi Bagger Walk-Behind Mower Grass Catcher Parts Diagram

21" Maxi Bagger Walk-Behind Mower

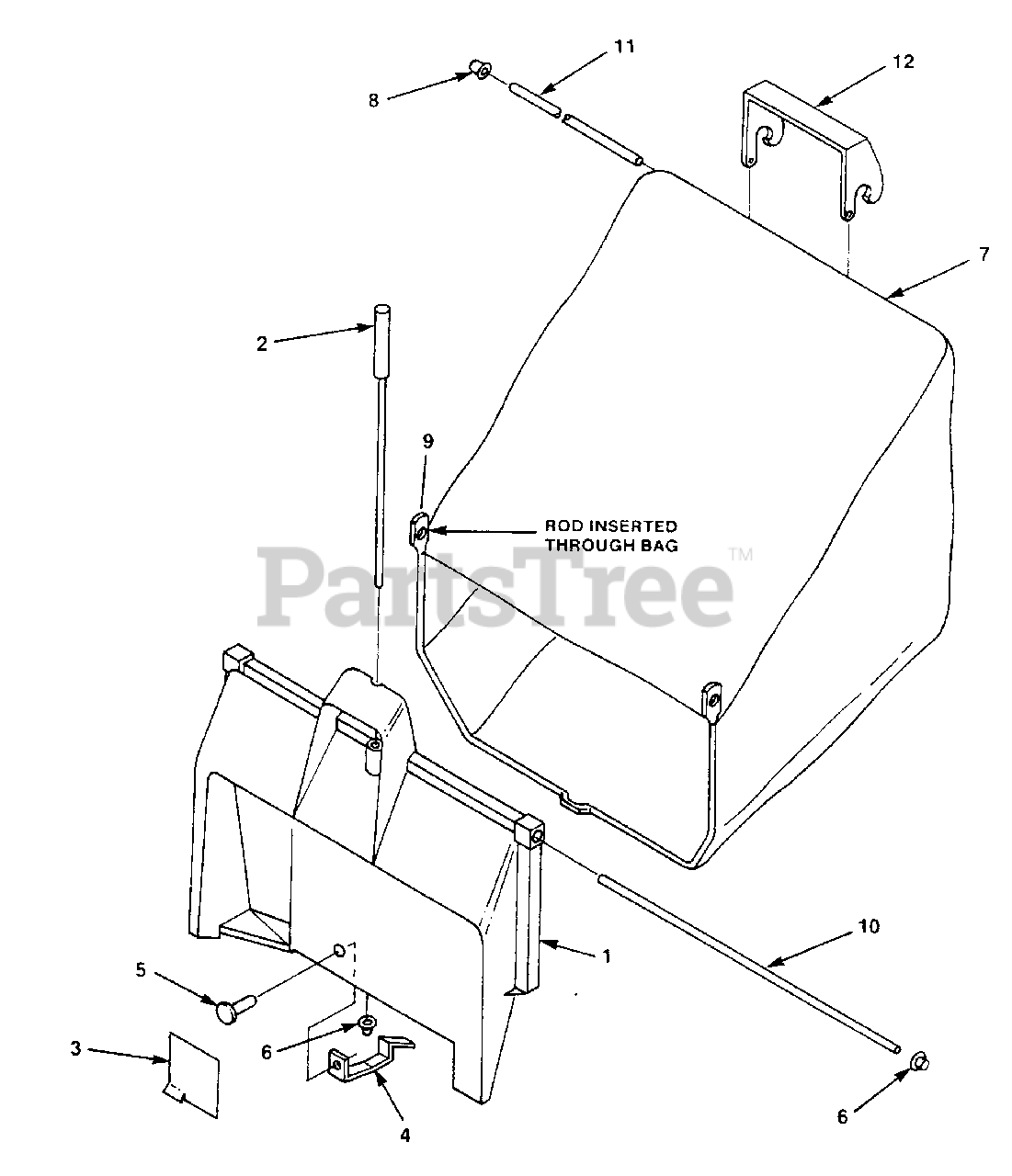

Grass Catcher Parts Diagram

  • Title

Homelite JA518989

COMPLETE REPLACEMENT BAG KIT

Note: Includes #1 - 12

$

$

Currently unavailable

1

Homelite JA991789

ADAPTOR- Bag

Note: (Includes #2 thru 6)

$

$

Currently unavailable

2

Homelite JA991788

ROD- Latch release

$

$

Not available

3

Homelite JA375660

DEFLECTOR

$

$

Currently unavailable

$

$

Currently unavailable

5

Homelite JA464845

RIVET- Pop 5/32 x 3/8

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Homelite JA518759

CATCHER- Grass

Note: (Incl. #6 & #8)

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Homelite JA336651

ROD- Bag Support

$

$

Not available

10

Homelite JA359168

ROD- Bag hinge

$

$

Currently unavailable

11

Homelite JA359169

ROD- Upper bag

$

$

Not available

12

Homelite JA991786

HANDLE- Upper bag

$

$

Not available
