DM-6120 - Echo Duster / Mister (SN: D01926001001 - D01926999999) Fuel System Parts Diagram

Duster / Mister

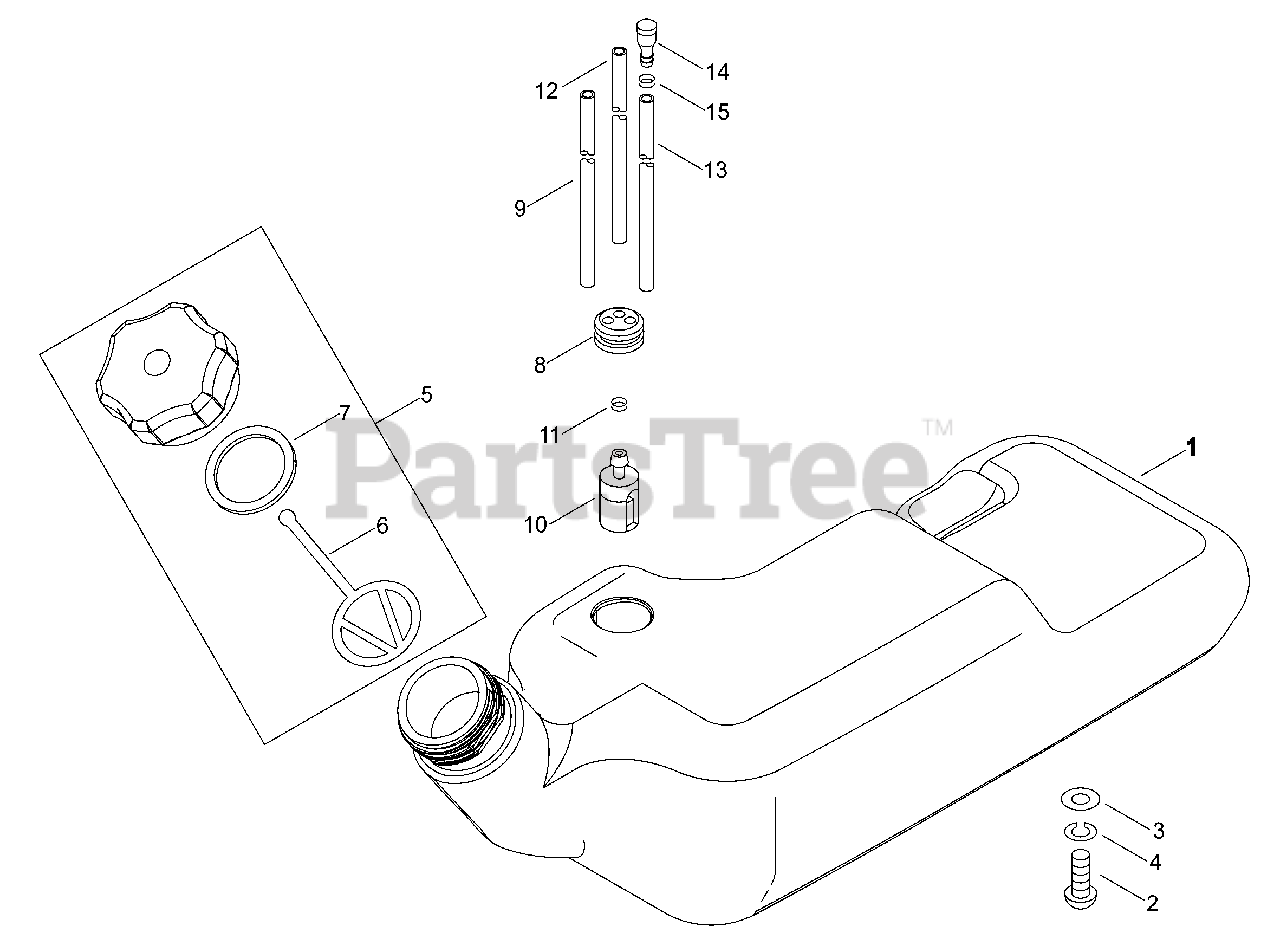

Fuel System Parts Diagram

  • Title

1

Echo A350001910

TANK, FUEL

$25.99

$

Usually ships in 2-4 days

0

2

Echo 90022006014

SCREW 6×14

$0.99

$

Usually ships in 2-4 days

0

3

Echo 14564200760

WASHER 6.5×18×1.6

$0.99

$

Usually ships in 2-4 days

0

4

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, only 2 left!

0

5

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes Items 6-7

$6.49

$

In Stock, only 2 left!

0

6

Echo 13105156030

+CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

7

Echo 13101655830

+GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

8

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 18

0

9

Echo V471000770

PIPE, FUEL 3×6×280 MM
(Superseded to V471000771)

$3.99

$

In Stock, Qty 20+

0

10

Echo A369000440

FILTER, FUEL

$6.99

$

In Stock, Qty 20+

0

11

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

12

Echo V471000550

PIPE, FUEL RETURN 3×6×145

$1.99

$

In Stock, Qty 11

0

13

Echo 13201056030

PIPE, FUEL 3×6×110
(Superseded to 13201056031)

$2.99

$

In Stock, only 2 left!

0

14

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

15

Echo 13201305060

CLIP, TUBE

$

$

Not available
