DM-6110 - Echo Duster / Mister (SN: 23001001 - 23999999) Fuel System Parts Diagram

Duster / Mister

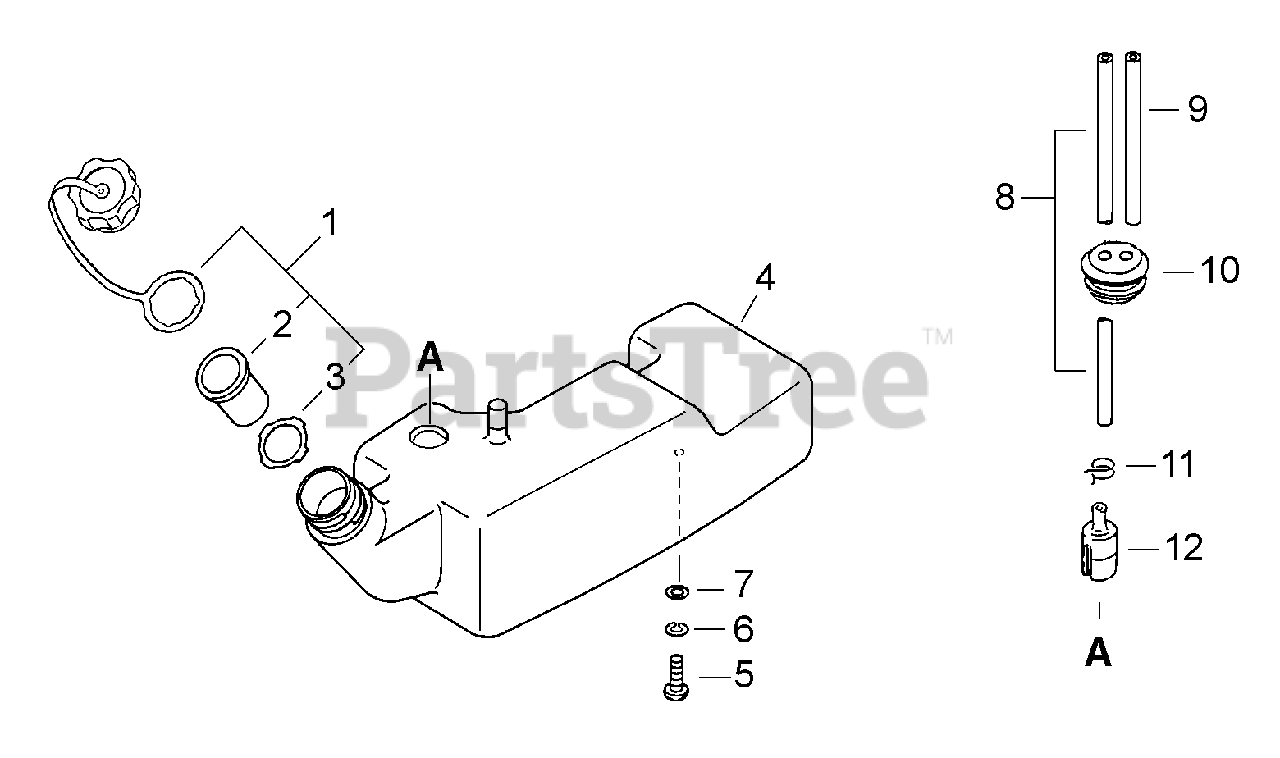

Fuel System Parts Diagram

  • Title
1

Echo 13160021060

CAP ASSY
(Superseded to P100006510)

$14.99

$

Usually ships in 2-4 days

0

2

Echo 13100305330

VENT, CAP

$2.99

$

In Stock, only 1 left!

0

3

Echo 13101621060

GASKET, CAP
(Superseded to 13101621061)

$2.99

$

Usually ships in 2-4 days

0

4

Echo A350000341

TANK, FUEL
(Superseded to A350000342)

$30.99

$

Usually ships in 2-4 days

0

5

Echo 90022006014

SCREW - 6X14

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

7

Echo 14564200760

WASHER - 6.5

$0.99

$

Usually ships in 2-4 days

0

8

Echo V471000770

PIPE - 3X6X280 -- BLACK
(Superseded to V471000771)

$3.99

$

In Stock, Qty 20+

0

9

Echo V471000550

PIPE - 3X6X145 -- CLEAR

$1.99

$

In Stock, Qty 11

0

10

$3.99

$

Usually ships in 2-4 days

0

11

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

12

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0
