DM-4610 - Echo Duster / Mister (SN: D02936001001 - D02936999999) Fan Cover Parts Diagram

Duster / Mister

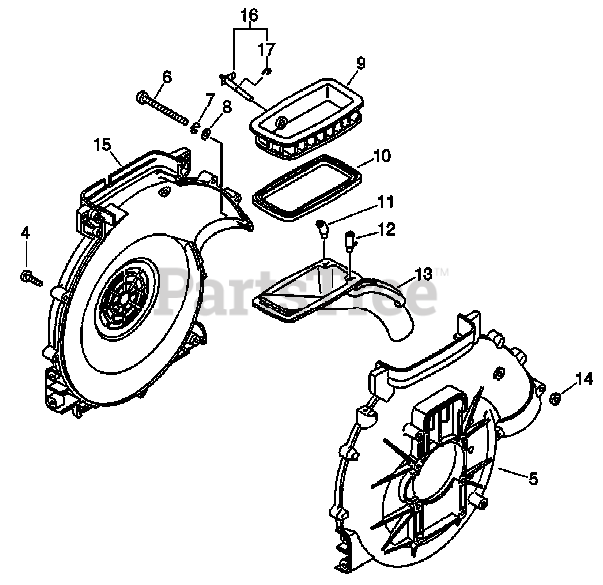

Fan Cover Parts Diagram

  • Title

4

Echo 90028605025

SCREW - 5X25

$2.49

$

Usually ships in 2-4 days

0

5

Echo 20010707712

COVER, FAN - OUTER

$

$

Currently unavailable

6

Echo 21042504110

BOLT

$2.49

$

Usually ships in 2-4 days

0

7

Echo 90060900005

LOCKWASHER - 5

$0.99

$

Usually ships in 2-4 days

0

8

Echo 90060400005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 27001006211

ADAPTOR, DUST OUTLET
(Superseded to 27001006212)

$48.99

$

Usually ships in 2-4 days

0

10

Echo 27001806210

SEAL

$8.99

$

Usually ships in 2-4 days

0

11

Echo 37032106210

GUIDE, AIR

$2.49

$

Usually ships in 2-4 days

0

12

Echo 37031606210

GUIDE, AIR

$4.49

$

Usually ships in 2-4 days

0

13

Echo 37030106211

PIPE - OUTLET
(Superseded to P100008110)

$44.99

$

Usually ships in 2-4 days

0

14

Echo 90050400005

NUT - 5

$0.99

$

Usually ships in 2-4 days

0

15

Echo 20010507711

COVER, FAN - INNER
(Superseded to 20010507712)

$88.99

$

Usually ships in 2-4 days

0

16

Echo 70103306211

SHUTTER SHAFT ASSY

Note: Includes ITEM 17

$20.99

$

Usually ships in 2-4 days

0

17

Echo 90070300008

RING, RETAINING - 8

$0.99

$

Usually ships in 2-4 days

0
