DM-4610 - Echo Duster / Mister (SN: 35001001 - 35999999) Fuel System Parts Diagram

Duster / Mister

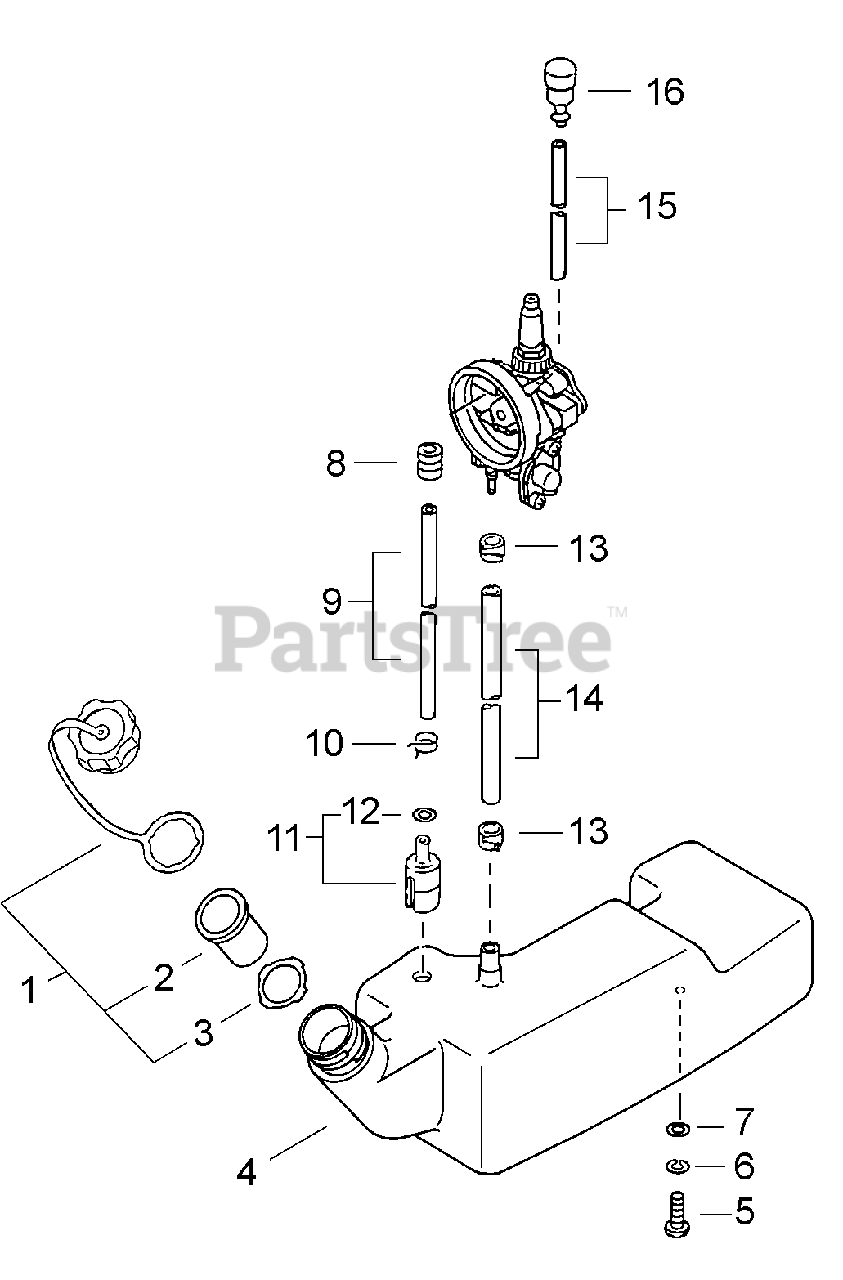

Fuel System Parts Diagram

  • Title

1

Echo 13160021060

CAP ASSY
(Superseded to P100006510)

Note: Includes ITEMS 2-3

$14.99

$

Usually ships in 2-4 days

0

2

Echo 13100305330

VENT, CAP

$2.99

$

In Stock, only 1 left!

0

3

Echo 13101621060

GASKET, CAP
(Superseded to 13101621061)

$2.99

$

Usually ships in 2-4 days

0

4

Echo 13100506215

TANK, FUEL

$30.99

$

Usually ships in 2-4 days

0

5

Echo 90022006014

SCREW - 6X14

$0.99

$

Usually ships in 2-4 days

0

6

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

7

Echo 14564200760

WASHER - 6.5

$0.99

$

Usually ships in 2-4 days

0

8

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

9

Echo 13201035430

PIPE - 3X6X230 -- BLACK
(Superseded to 13201035431)

$7.99

$

In Stock, only 2 left!

0

10

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

11

Echo 13120505630

FILTER, FUEL

Note: Includes ITEM 12

$14.99

$

Usually ships in 2-4 days

0

12

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 13201314010

CLAMP

$3.49

$

Usually ships in 2-4 days

0

14

Echo 13201006410

PIPE - 5/16 X 7/16 X 75

$4.49

$

Usually ships in 2-4 days

0

15

Echo 13201006530

PIPE - 3X6X85 -- BLACK
(Superseded to 13201006531)

$2.49

$

In Stock, only 3 left!

0

16

Echo 13200105510

VENT, FUEL TANK

$5.99

$

Usually ships in 2-4 days

0
