DM-4610 - Echo Duster / Mister (SN: 35001001 - 35999999) Carburetor -- K13PR-6E Parts Diagram

Duster / Mister

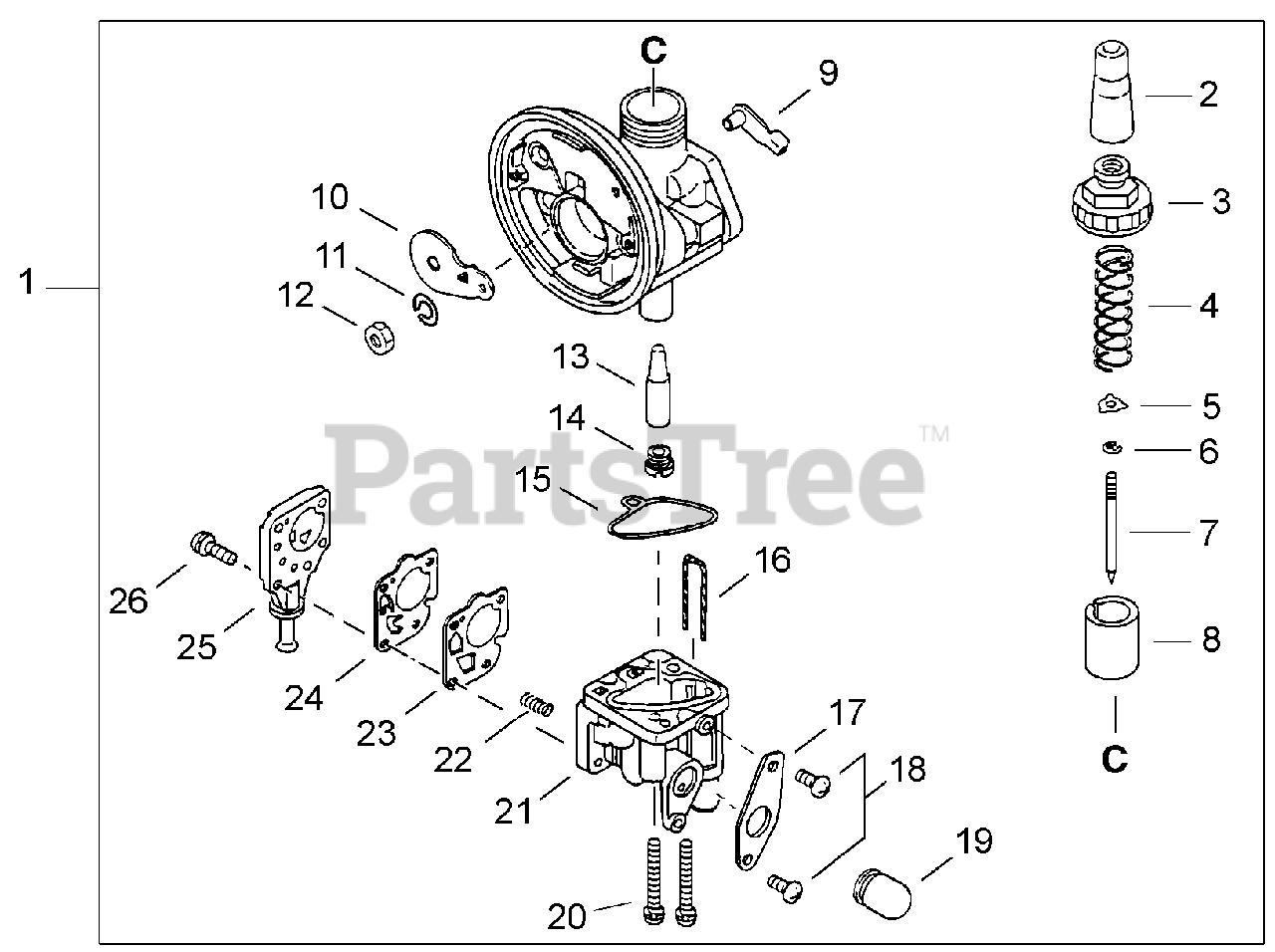

Carburetor -- K13PR-6E Parts Diagram

  • Title
1

Echo 12420006410

CARBURETOR K13PR-6E

Note: Includes ITEMS 2-26

$111.99

$

Usually ships in 2-4 days

0

2

Echo 12417411120

CAP, DUST

$1.49

$

In Stock, Qty 20+

0

3

Echo 12411305910

COVER - TOP

$15.99

$

Usually ships in 2-4 days

0

4

Echo 12411411120

SPRING, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

5

$1.99

$

Usually ships in 2-4 days

0

6

Echo 12411605530

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

7

Echo 12411705910

NEEDLE, JET

$15.99

$

Usually ships in 2-4 days

0

8

Echo 12411805910

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

9

Echo 12414205810

LEVER, CHOKE

$10.99

$

Usually ships in 2-4 days

0

10

Echo 12414305810

PLATE, CHOKE

$2.49

$

Usually ships in 2-4 days

0

11

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

12

$3.49

$

In Stock, only 2 left!

0

13

Echo 12416205510

NEEDLE, JET

$15.99

$

Usually ships in 2-4 days

0

14

Echo 12412205910

JET, MAIN - 64

$11.99

$

Usually ships in 2-4 days

0

15

Echo 12412305510

GASKET, CHAMBER

$10.99

$

Usually ships in 2-4 days

0

16

Echo 12418205510

WIRE, DRAIN

$3.99

$

Usually ships in 2-4 days

0

17

$2.49

$

Usually ships in 2-4 days

0

18

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 11

0

$6.49

$

Usually ships in 2-4 days

0

20

Echo 90024104030

SCREW - 4X30

$0.99

$

Usually ships in 2-4 days

0

21

$40.99

$

Usually ships in 2-4 days

0

22

$1.49

$

In Stock, Qty 6

0

23

Echo 12436321330

GASKET, METERING

$1.99

$

In Stock, Qty 7

0

24

Echo 12436405510

DIAPHRAGM, PUMP

$10.99

$

Usually ships in 2-4 days

0

25

Echo 12436505510

COVER, PUMP

$15.99

$

Usually ships in 2-4 days

0

26

Echo 90024103010

SCREW - 3X10

$0.99

$

Usually ships in 2-4 days

0
