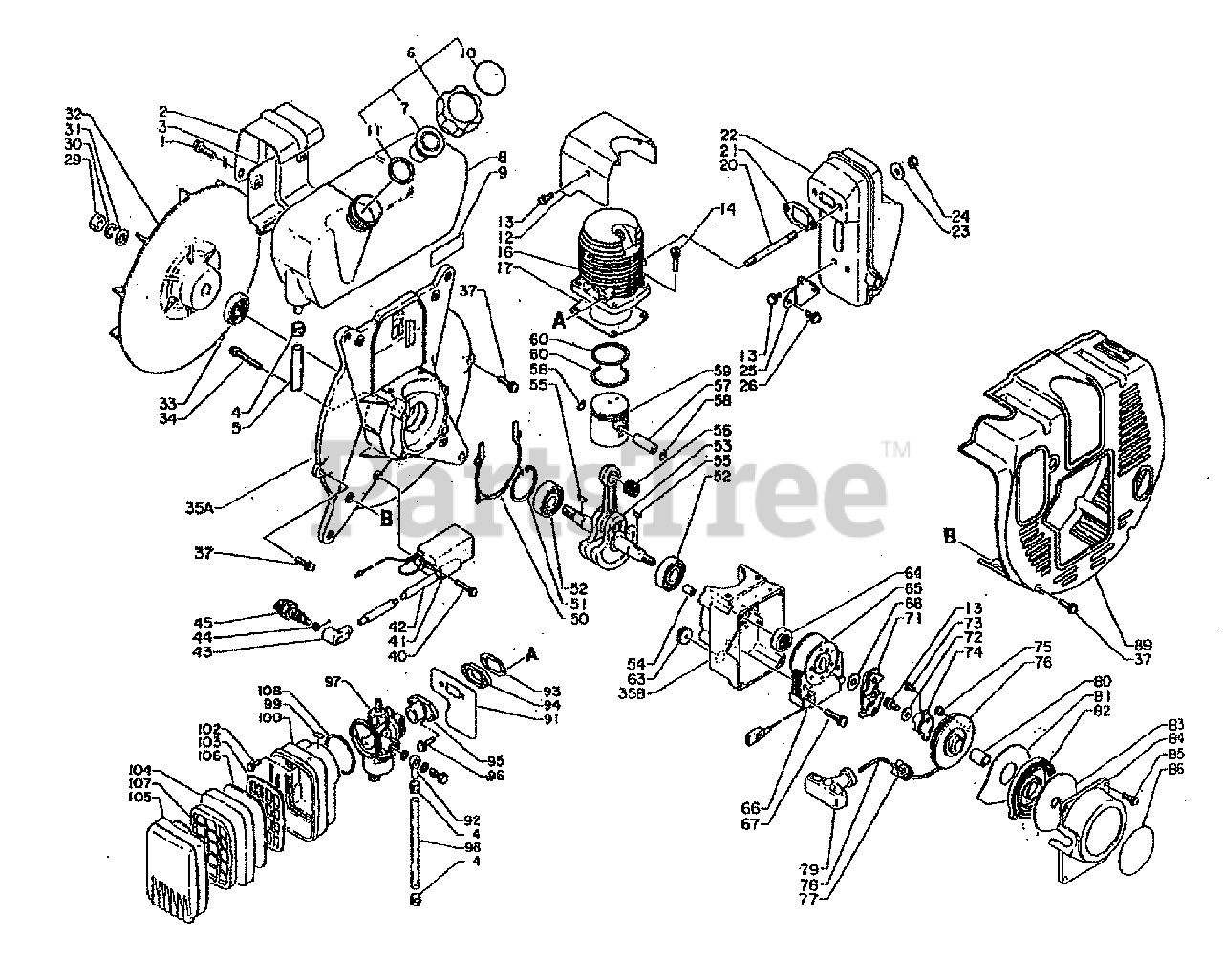

DM-4500 - Echo Duster / Mister Part List 1 Parts Diagram

Duster / Mister

Part List 1 Parts Diagram

  • Title

1

Echo 900142-06020

Bolt 6 x 20
(Superseded to Discontinued)

$

$

Not available

2

Echo 131910-03210

Bracket, Fuel Tank

$

$

Currently unavailable

3

Echo 131918-02910

Bracket, Fuel Tank

$

$

Currently unavailable

4

Echo 367013-00210

Clamp

$

$

Currently unavailable

5

Echo 132010-03210

Pipe 7 x 11 x 360

$

$

Currently unavailable

6

Echo 131604-07132

Cap Ass'Y Fuel

$

$

Not available

7

Echo 131003-05330

Greather Cup

$2.99

$

In Stock, only 1 left!

0

10

Echo 890157-12730

Label

$

$

Currently unavailable

11

Echo 131016-21230

Gasket

$3.49

$

In Stock, Qty 5

0

8

Echo 131010-03210

Tank, Fuel

$

$

Currently unavailable

9

Echo 890112-04010

Label

$

$

Currently unavailable

12

Echo 101514-03211

Cover, Cylinder

$

$

Currently unavailable

13

Echo 900242-05010

Screw 5 x 10

$0.99

$

In Stock, Qty 20+

0

14

Echo 900162-06020

Bolt, H.S.H. 6 x 20

$1.49

$

In Stock, only 4 left!

0

16

Echo 101011-02311

Cylinder

$

$

Currently unavailable

17

Echo 101010-02312

Gasket, Cylinder
(Superseded to 10101005511)

$

$

Not available

20

Echo 101014-02310

Stud

$

$

Currently unavailable

21

Echo 145510-02311

Gasket

$

$

Currently unavailable

22

Echo 145610-03210

Muffler

$

$

Currently unavailable

23

Echo 145642-00760

Washer 6

$0.99

$

Usually ships in 2-4 days

0

24

Echo 145710-00230

Lock Nut
(Superseded to 90056000006)

$1.49

$

In Stock, Qty 20+

0

25

Echo 145711-02310

Bracket

$

$

Currently unavailable

26

Echo 900242-05014

Screw 5 x 14

$0.99

$

In Stock, Qty 20+

0

29

Echo 900501-00010

Nut 10

$0.99

$

In Stock, Qty 5

0

30

Echo 900605-00010

Washer, Spring 10

$0.99

$

In Stock, Qty 9

0

31

Echo 900600-00010

Washer 10

$0.99

$

In Stock, Qty 20+

0

32

Echo 200005-03210

Fan

$

$

Currently unavailable

33

Echo 100213-02830

Oilseal

$6.49

$

In Stock, Qty 5

0

34

Echo 900162-05040

Bolt, H.S.H.

$1.49

$

In Stock, Qty 9

0

35

Echo 100200-03213

Crank Case Set

$

$

Currently unavailable

54

Echo 100215-05730

Pin, Dowel
(Superseded to Discontinued)

$

$

Not available

37

Echo 900242-05020

Screw 5 x 20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

40

Echo 900242-04020

Screw 4 x 20

$0.99

$

In Stock, Qty 20+

0

41

Echo 156601-03210

Module, C.D.I.

$150.99

$

Usually ships in 2-4 days

0

42

Echo 156111-03210

Tube

$

$

Currently unavailable

43

Echo 159012-01620

Cap, Spark Plug

$1.49

$

In Stock, Qty 20+

0

44

Echo 159011-03432

Coil, Plug Cap
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 13

0

45

Echo 159010-00330

Plug, Spark
(Superseded to Discontinued)

$

$

Not available

50

Echo 100242-03212

Gasket, Crankcase

$

$

Currently unavailable

51

900702-00035

Circlip

$

$

Not available

52

900810-36202

Bearing, Ball

$

$

Not available

53

Echo 100100-03210

Crankshaft Ass'y

$

$

Not available

55

Echo 100142-00310

Key, Woodrugg 3

$1.49

$

Usually ships in 2-4 days

0

56

Echo 100012-12330

Bearing, Needle
(Superseded to 10001212331)

$10.99

$

In Stock, Qty 7

0

57

Echo 100013-00410

Pin, Piston

$7.49

$

In Stock, only 1 left!

0

58

Echo 100015-00120

Circlip, Piston Pin

$0.99

$

In Stock, Qty 11

0

59

Echo 100010-03210

Piston

$

$

Not available

60

Echo 100011-10530

Ring, Piston

$7.49

$

In Stock, Qty 16

0

63

Echo 156114-03210

Grommet

$

$

Currently unavailable

64

Echo 100213-00310

Oilseal

$5.49

$

In Stock, only 4 left!

0

65

Echo 156800-03210

Rotor

$

$

Not available

66

Echo 156627-03210

Coil, Exciter
(Superseded to Discontinued)

$

$

Not available

67

Echo 900242-05025

Screw 5 x 25

$0.99

$

In Stock, Qty 20+

0

68

Echo 900602-00008

Washer 8

$0.99

$

In Stock, Qty 20+

0

71

Echo 177305-06720

Ratcher, Ass'y, Starter
(Superseded to 17730540530)

$

$

Not available

Echo 177200-03211

Starter Ass'y

$110.99

$

Usually ships in 2-4 days

0

13

Echo 900242-05010

Screw 5 x 10

$0.99

$

In Stock, Qty 20+

0

72

Echo 177214-02830

Washer

$0.99

$

In Stock, Qty 5

0

73

Echo 900241-04008

Screw 4x8

$0.99

$

In Stock, Qty 11

0

74

Echo 177243-04130

Catcher, Pawl

$10.99

$

Usually ships in 2-4 days

0

75

Echo 177246-03930

Clip

$0.99

$

In Stock, only 2 left!

0

76

Echo 177215-04130

Reel, Starter

$21.99

$

Usually ships in 2-4 days

0

77

Echo 177227-02910

Guide, Rope
(Superseded to Discontinued)

$

$

Not available

78

Echo 177226-03930

Rope, Starter
(Superseded to 17722603930)

$5.99

$

In Stock, Qty 6

0

79

Echo 177228-11130

Grip, Starter

$5.99

$

Usually ships in 2-4 days

0

80

Echo 177216-12330

Bushing

$1.99

$

In Stock, Qty 20+

0

81

Echo 177242-02910

Plate
(Superseded to Discontinued)

$

$

Not available

82

Echo 177220-03930

Spring, Rewind

$18.99

$

In Stock, only 3 left!

0

83

Echo 177221-06720

Plate

$2.99

$

Usually ships in 2-4 days

0

84

Echo 177209-03211

Case, Starter

$

$

Not available

85

Echo 900242-04016

Screw 4x16

$0.99

$

In Stock, Qty 20+

0

86

Echo 890112-17830

Lable
(Superseded to 89011240930)

$6.49

$

In Stock, only 4 left!

0

89

Echo 104016-03210

Cover, Engine

$

$

Currently unavailable

91

Echo 130010-03311

Gasket, Wind Proof

$

$

Currently unavailable

92

Echo 132024-00660

Connector, Pipe
(Superseded to Discontinued)

$

$

Not available

93

Echo 130016-01110

Gasket

$0.99

$

In Stock, only 4 left!

0

94

Echo 130017-01110

Insulator

$3.49

$

Usually ships in 2-4 days

0

95

Echo 130510-02310

Adaptor, Intake

$

$

Currently unavailable

96

Echo 900142-06025

Bolt 6x25

$0.99

$

Usually ships in 2-4 days

0

97

Echo 120000-03213

Corburator Ass'y
(Superseded to Discontinued)

$

$

Not available

98

Echo 132010-03210

Pipe 7 x 11 x 230

$

$

Currently unavailable

99

Echo 890121-00660

Lable
(Superseded to Discontinued)

$

$

Not available

100

Echo 130307-03711

Case, Air Filter

$7.49

$

Usually ships in 2-4 days

0

102

Echo 900242-04014

Screw 4 x 14

$0.99

$

In Stock, Qty 15

0

103

Echo 130319-03710

Grid

$2.49

$

Usually ships in 2-4 days

0

104

Echo 130310-02910

Filter, Air

$5.49

$

Usually ships in 2-4 days

0

105

Echo 130313-03710

Cover, Air Filter

$

$

Not available

106

Echo 130317-03710

Filter, Air

$4.99

$

Usually ships in 2-4 days

0

107

Echo 130311-03710

Grid, Air Filter

$2.99

$

Usually ships in 2-4 days

0

108

Echo 130320-03710

Gasket

$

$

Not available
