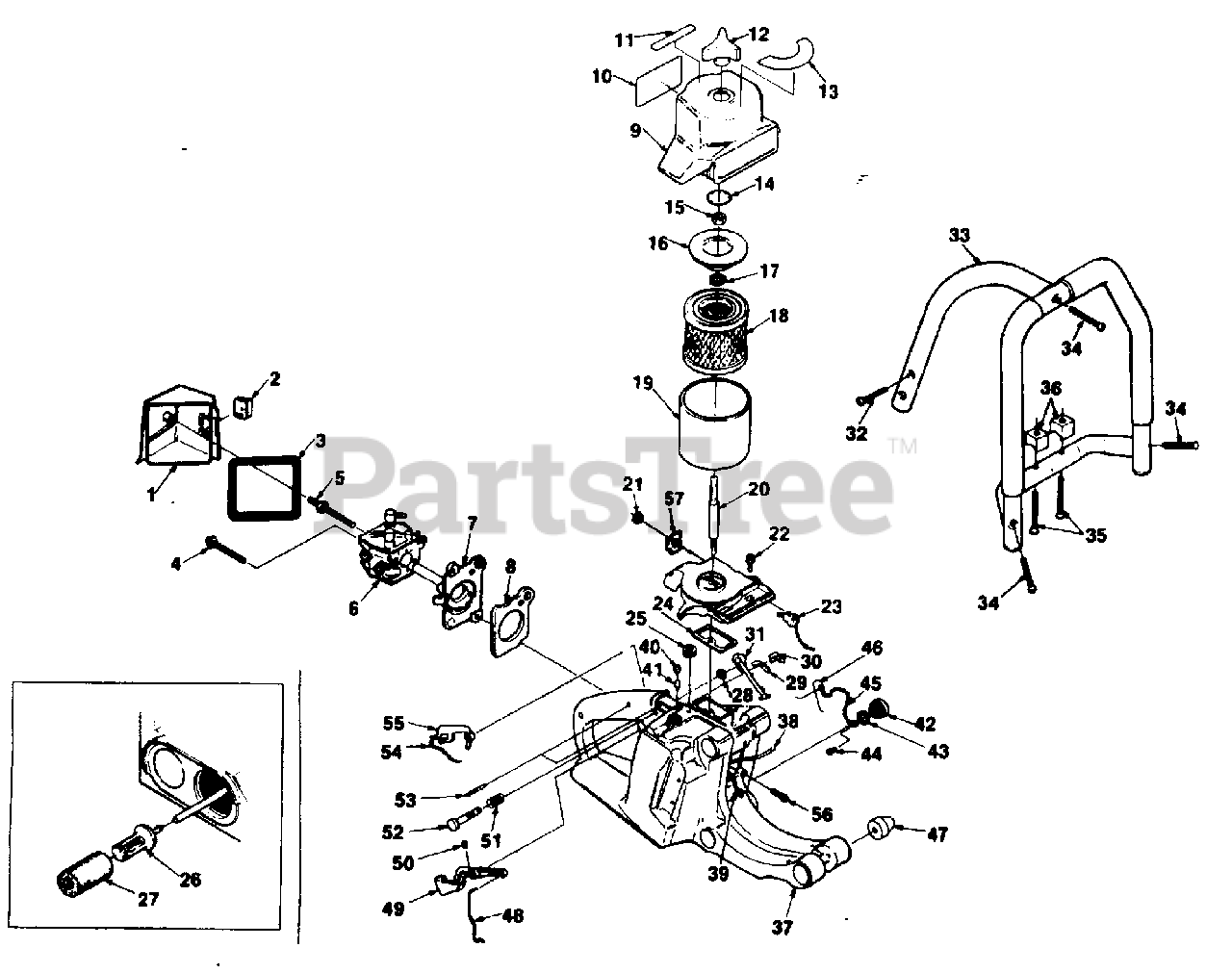

DM 401 (UT-05028) - Homelite Multi Purpose Saw Handles, Air Cleaner & Carburetor Parts Diagram

Multi Purpose Saw

Handles, Air Cleaner & Carburetor Parts Diagram

  • Title

1

Homelite A934311

COVER- Carburetor chamber

$

$

Currently unavailable

2

Homelite 93470

GROMMET- Hi-Lo

$

$

Not available

3

Homelite 97620

GASKET- Carburetor cover
(Superseded to UP05642)

$

$

Not available

4

Homelite 93460

SCREW- Hex sems hd.

$

$

Not available

5

Homelite 93468

STUD- Shoulder

$

$

Not available

6

Homelite A97102

CARBURETOR (WS-22) Walbro
(Superseded to A01085)

$

$

Currently unavailable

7

Homelite 976231

ADAPTOR- Carburetor

$

$

Currently unavailable

8

Homelite 97622A

GASKET- Carburetor adaptor

$

$

Currently unavailable

9

Homelite 47870

COVER- Filter

$

$

Not available

10

Homelite 48856

DECAL

$

$

Not available

11

Homelite 48857

DECAL

$

$

Not available

12

Homelite 46076

KNOB
(Superseded to 06365)

$

$

Not available

13

Homelite 48855

DECAL

$

$

Not available

14

Homelite 46072

RING- Retaining

$

$

Not available

15

Homelite 81196

NUT- Hex 5/16-18
(Superseded to 671076001)

$1.49

$

In Stock, only 2 left!

0

16

Homelite 46786

COVER- Filter element
(Superseded to 498981)

$

$

Not available

17

Homelite 46787

WASHER

$

$

Not available

18

Homelite 47867

ELEMENT- Air filter

$

$

Not available

19

Homelite 49143

FOAM- Air filter
(Superseded to 49436)

$

$

Not available

20

Homelite 47865

STUD- Threaded

$

$

Not available

21

Homelite 72084A1

NUT- Hex
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

22

Homelite 88050

SCREW
(Superseded to 88063)

$2.99

$

Usually ships in 3-7 days

0

23

Homelite A97837

SWITCH & LEAD

$

$

Currently unavailable

24

Homelite 48821

GASKET

$

$

Currently unavailable

25

Homelite A49135

GROMMET & "O" RING ASSEMBLY

$

$

Currently unavailable

26

Homelite A97700

FUEL FILTER
(Superseded to UP06516)

$

$

Not available

27

Homelite 592531A

ELEMENT- Felt filter

$11.99

$

Usually ships in 3-7 days

0

28

Homelite 93377

RING- Retaining

$

$

Not available

29

Homelite 93381

RETAINER- Choke

$

$

Not available

30

Homelite 48878

SEAL- Choke rod

$

$

Not available

31

Homelite 93372

ROD-Choke

$

$

Not available

32

Homelite 82389

SCREW- Oval hd.

$

$

Not available

33

Homelite A47873

HANDLE BAR

$

$

Currently unavailable

34

Homelite 82378

SCREW

$

$

Not available

35

Homelite 82494

SCREW- Mach oval hd.

$

$

Not available

36

Homelite 93427

BRACKET- Handle bar
(Superseded to 496221)

$

$

Not available

37

Homelite A49144

HOUSING- Engine

$

$

Currently unavailable

38

Homelite 9311232

TUBING- 8 3/4" (fuel line)

$

$

Currently unavailable

39

Homelite 9315719

TUBING- 4 3/4 (pulse line)

$

$

Not available

40

Homelite 93410

FILTER-
(Superseded to UP08023)

$7.99

$

Usually ships in 3-7 days

0

41

Homelite 69451

VALVE- Check

$

$

Not available

42

Homelite A97799

CAP- Fuel
(Superseded to UP05970)

$

$

Not available

43

Homelite 93422

GASKET- Cap
(Superseded to UP07294)

$

$

Not available

44

Homelite 82256A

SCREW- Plastic X-slot

$

$

Not available

45

Homelite 69502

CHAIN- Bead

$

$

Not available

46

Homelite 96535

KEEPER- Cap

$

$

Not available

47

Homelite 49136

ISOLATOR

$

$

Not available

48

Homelite 93371A

ROD- Throttle

$

$

Currently unavailable

49

Homelite A93374A

TRIGGER- Throttle

$

$

Currently unavailable

50

Homelite 82373

SCREW

$

$

Not available

51

Homelite 93376

SPRING- Compression

$

$

Not available

52

Homelite 93375

PIN- Throttle lock

$

$

Not available

53

Homelite 685451

PIN- Trigger

$

$

Currently unavailable

54

Homelite 93386

SPRING- Flat

$

$

Not available

55

Homelite 93385

LOCK- Trigger
(Superseded to UP07466)

$

$

Not available

56

Homelite 80022

SCREW- 8-32 x 1/2

$

$

Not available

57

Homelite 95231

PLATE- Indicating
(Superseded to UP04266)

$

$

Not available

Homelite 49555

PRE-FILTER- Cone-shaped

$21.99

$

Usually ships in 3-7 days

0

Homelite 93383

KNOB-Retainer for Carb Cover

$

$

Currently unavailable

Homelite 478781

BASE- Air Filter

$

$

Currently unavailable

Homelite A01085

CARB- WJ-5

$

$

Currently unavailable

Homelite 01800

KIT- Repair

$

$

Not available

Homelite 01801

KIT- Gasket/Diaphragm

$

$

Not available

Homelite 01829

VALVE- Nozzle Check

$

$

Not available

Homelite 01828

KIT- Accelerator

$11.99

$

Usually ships in 3-7 days

0
