DM 401 (UT-05028) - Homelite Multi Purpose Saw Clutch, Engine Internals & Ignition Parts Diagram

Multi Purpose Saw

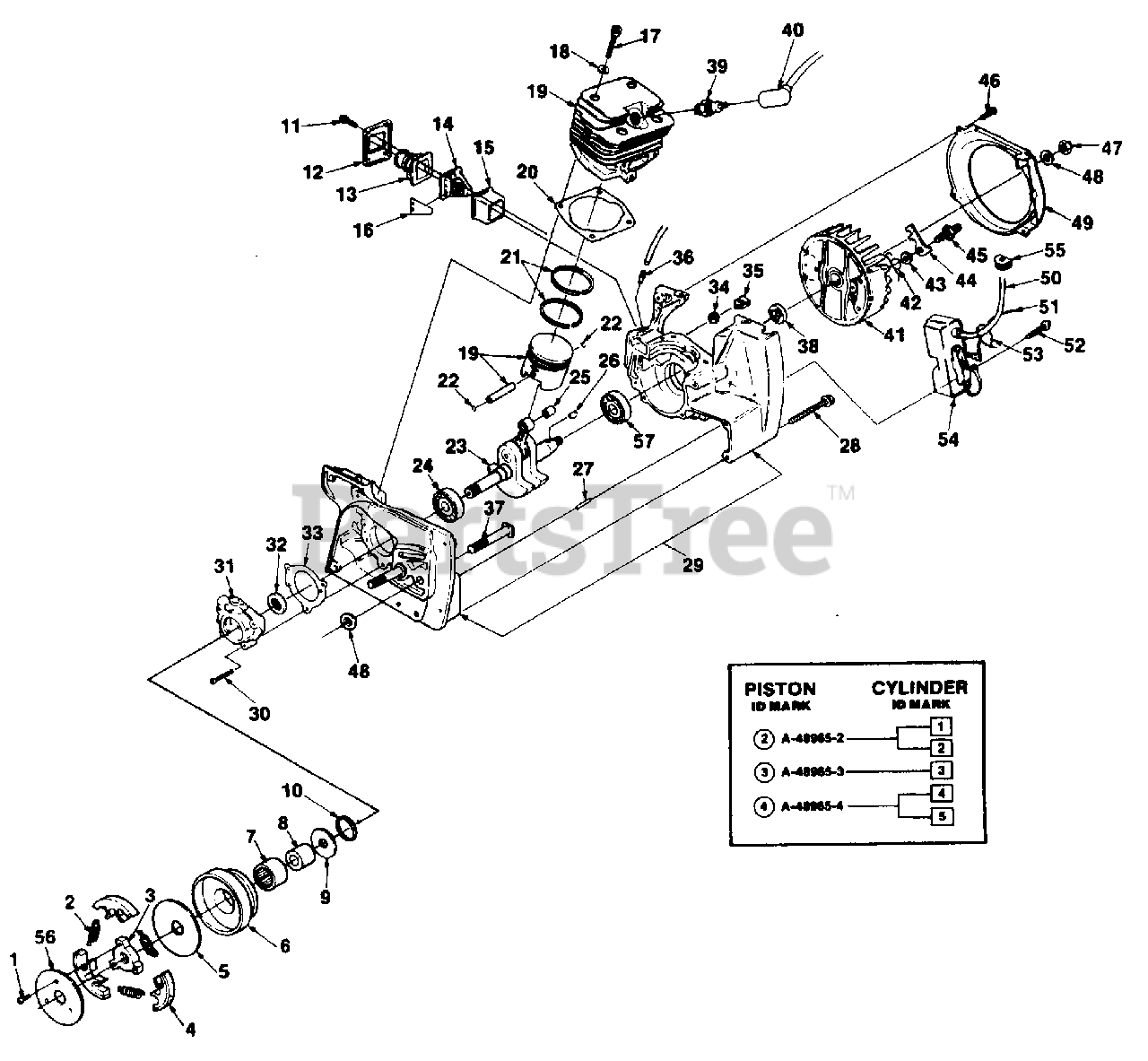

Clutch, Engine Internals & Ignition Parts Diagram

  • Title

1

Homelite 82253

SCREW

$

$

Not available

2

Homelite 93638A

SPRING- Clutch
(Superseded to UP06462)

$

$

Not available

3

Homelite 93639

SPIDER- Clutch
(Superseded to UP06983)

$

$

Not available

4

Homelite A93632A

SHOE- Clutch
(Superseded to UP06461)

$

$

Not available

5

Homelite 93650

WASHER- Thrust

$

$

Not available

6

Homelite A46123

PULLEY- Drum & Bearing

$

$

Currently unavailable

7

Homelite 46071

BEARING- Needle

$

$

Not available

8

Homelite 46070

RACE- Inner

$

$

Not available

9

Homelite 46135

WASHER- Thrust

$

$

Not available

10

Homelite 48859

SEAL

$

$

Not available

11

Homelite 80582

SCREW- 8-32 x 5/8

$

$

Not available

12

Homelite 93328

RETAINER- Reed valve

$

$

Not available

13

Homelite 93327

CONNECTOR- Carburetor
(Superseded to UP05709)

$

$

Not available

14

Homelite 93324

SEAT- Reed valve

$

$

Not available

15

Homelite 93326A

RETAINER- Reed

$

$

Not available

16

Homelite 93325

REED

$

$

Not available

17

Homelite 93399

SCREW- Cap socket head

$

$

Not available

18

Homelite 12021

WASHER- Conical

$

$

Not available

19

Homelite A48841

PISTON & CYLINDER (See Note 2)

$

$

Currently unavailable

20

Homelite 93338

GASKET- Cylinder

$

$

Not available

21

Homelite 48851

PISTON RING

$

$

Not available

22

Homelite 64813

RING- Retaining

$4.99

$

Usually ships in 3-7 days

0

23

Homelite A48836

CRANKSHAFT

$

$

Currently unavailable

24

Homelite 94621

BEARING- Ball
(Superseded to UP06853)

$

$

Not available

25

Homelite 97566

BEARING- Roller

$

$

Not available

26

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

27

Homelite 31062

PIN- Dowel
(Superseded to UP07031)

$

$

Not available

28

Homelite 88056

SCREW- 10 - 24 x 1.750

$

$

Not available

29

Homelite A47868

CRANKCASE

$

$

Not available

30

Homelite 80660

SCREW

$

$

Not available

31

Homelite A47871

BEARING- Retainer

$

$

Currently unavailable

32

Homelite 70729

SEAL

$

$

Not available

33

Homelite 93329

GASKET- Bearing retainer

$

$

Not available

34

Homelite 81208

NUT

$

$

Not available

35

Homelite 12689A

NUT- Retainer

$

$

Not available

36

Homelite 69833

FITTING- Tubing

$

$

Not available

37

Homelite 47948

BOLT
(Superseded to UP07169)

$

$

Not available

38

Homelite 70729

SEAL- Shaft

$

$

Not available

39

Homelite 96169S

SPARK PLUG (Champion DJ7Y)
(Superseded to UP03883)

$5.49

$

In Stock, only 3 left!

0

40

Homelite A33055

TERMINAL- Spark plug

$

$

Not available

41

Homelite 93313

ROTOR- 4.500 Dia.

$

$

Not available

42

Homelite 653752

SPRING- Starter pawl
(Superseded to UP06351)

$

$

Not available

43

Homelite 70901

WASHER- Lock #2

$

$

Not available

44

Homelite 58756

FINGER- Starter
(Superseded to UP06426)

$16.99

$

Usually ships in 3-7 days

0

45

Homelite 58757E

STUD- Shoulder

$

$

Not available

46

Homelite 82251

SCREW- Mach pan hd
(Superseded to 80571)

$

$

Not available

47

Homelite 81255

NUT- Locking hex

$

$

Not available

48

Homelite 95479A

WASHER- Flat

$

$

Not available

49

Homelite 93312

SCROLL- Air guide

$

$

Not available

50

Homelite 69326

LEAD- Hi-tension (Note 1)

$

$

Not available

51

Homelite A97837

SWITCH & LEAD

$

$

Currently unavailable

52

Homelite 80052

SCREW

$

$

Not available

53

Homelite 50729

CLAMP- Wire

$

$

Not available

54

Homelite A48507

MODULE

$

$

Currently unavailable

55

Homelite 58318

GROMMET

$

$

Not available

56

Homelite 93628

COVER- Clutch

$

$

Not available

57

Homelite 94621

BEARING- Ball
(Superseded to UP06853)

$

$

Not available

Homelite A00902

CYLINDER

$

$

Currently unavailable

Homelite A489652

PISTON

$

$

Currently unavailable
