DLW 409R-2 (80355) - Snapper 19" Walk-Behind Mower, 4hp Wheels, Guards, Axles (OPP Models Only) Parts Diagram
19" Walk-Behind Mower, 4hp

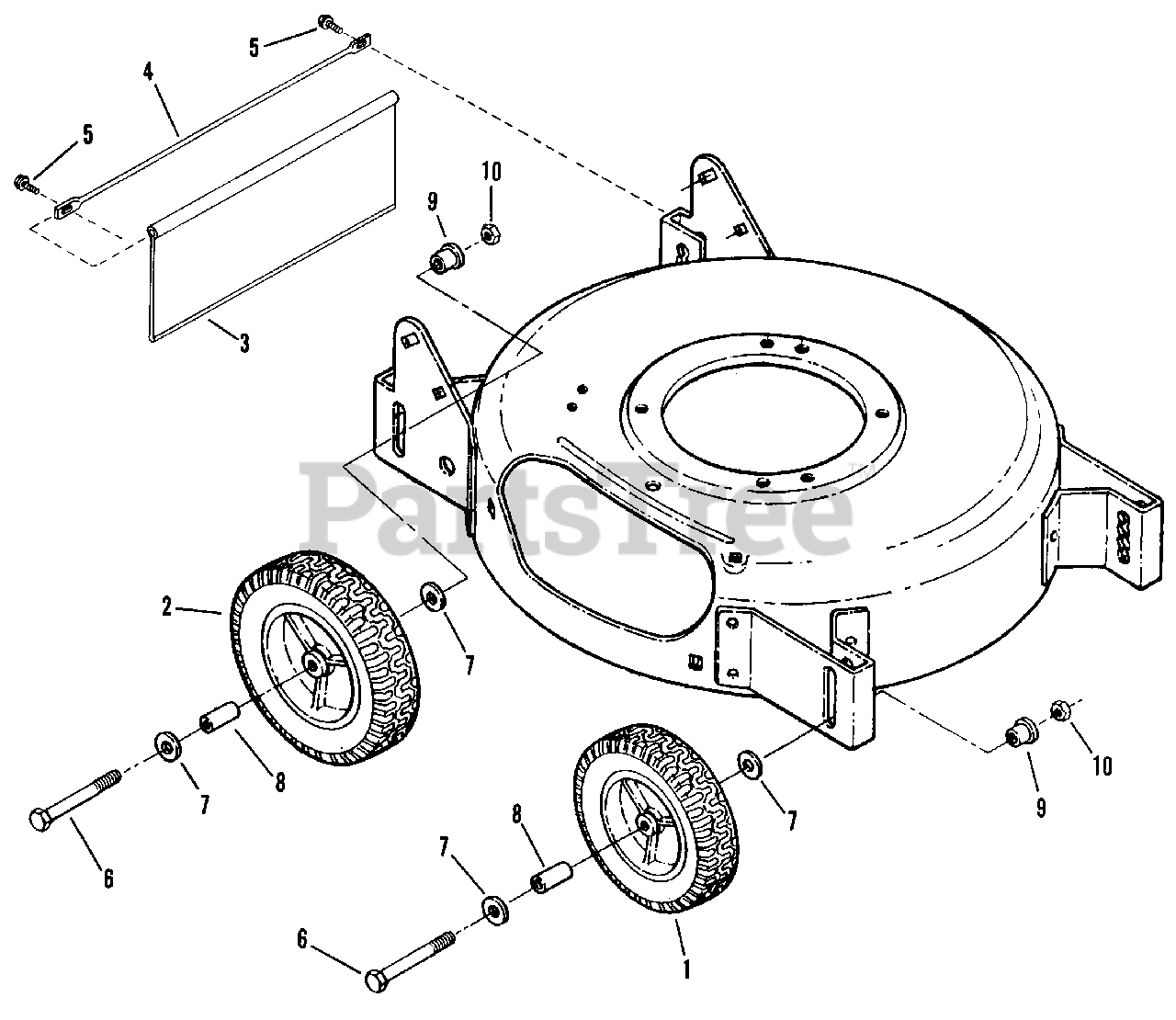

Wheels, Guards, Axles (OPP Models Only) Parts Diagram
Snapper 7022795
WHEEL, Front 7 x 1.75 (2)
$
$
Not available
$28.99
$
In Stock, Qty 20+
$6.99
$
Usually ships in 2-12 days
Snapper 7024086
SUPPORT, Foot Guard
$
$
Not available
$3.49
$
In Stock, Qty 9
Snapper 7091142
SCREW, 3/8-16 x 3-1/8" Hex Head Cap
$
$
Currently unavailable
$3.99
$
In Stock, Qty 17
$5.99
$
In Stock, only 4 left!
Snapper 7022376
BUSHING, Height Adjustment
$
$
Currently unavailable
Snapper 7091150
NUT, 3/8-16 Hex Center Lock
$
$
Currently unavailable
