DL 2500 S - Billy Goat 12" Intake Debris Loader Vacuum Parts Assembly Parts Diagram

12" Intake Debris Loader Vacuum

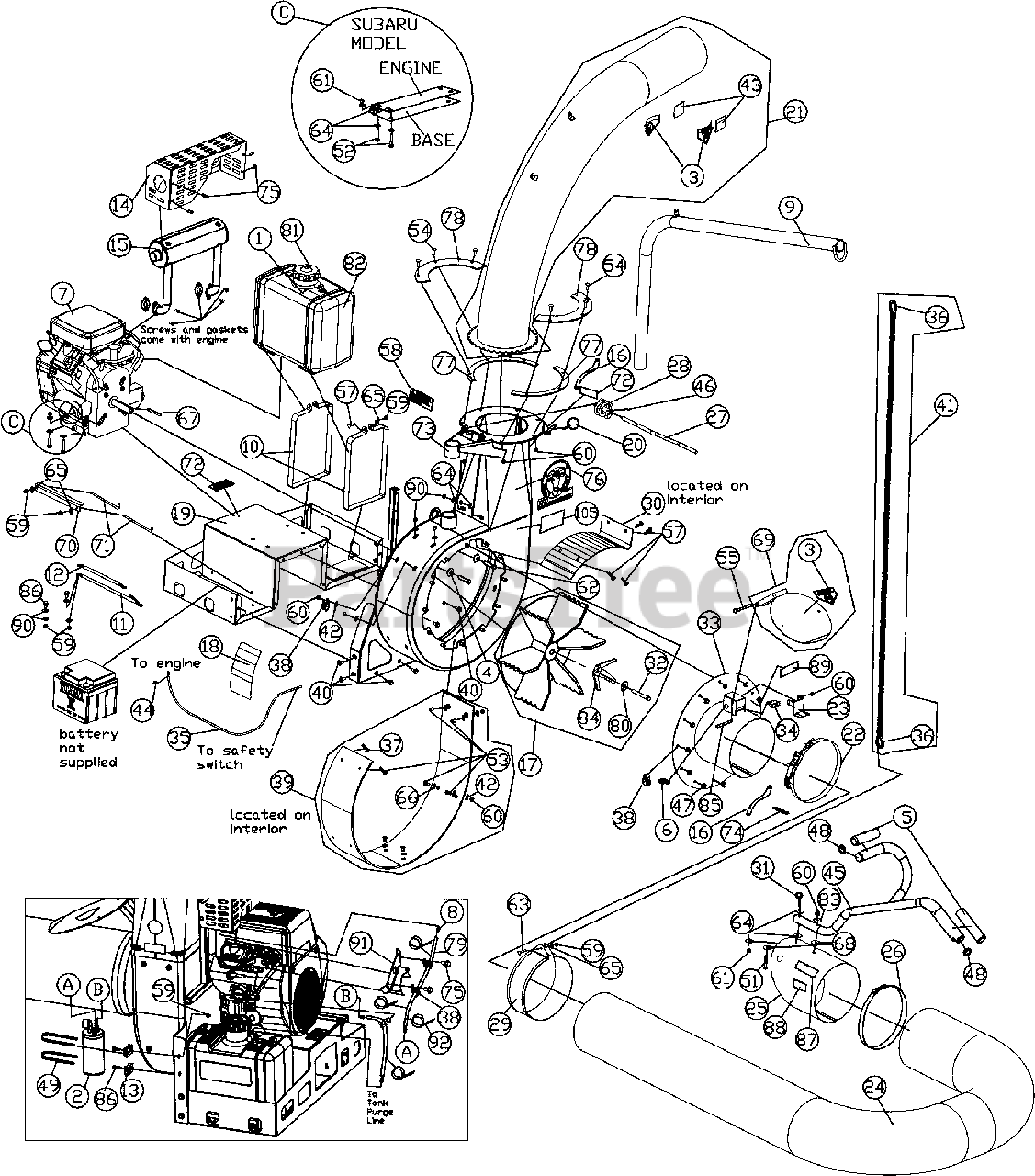

Parts Assembly Parts Diagram

  • Title

1

Billy Goat 100262

LABEL WARNING EXPLOSIVE FUEL EN/SP

$11.99

$

Usually ships in 2-11 days

0

2

Billy Goat 791159

CANISTER CARBON 400cc

$107.99

$

Usually ships in 2-11 days

0

3

Billy Goat 400424

LABEL OPEI WARNING

$3.99

$

In Stock, only 1 left!

0

4

Billy Goat 850132

WASHER TWISTED LOCK 7/16"

$

$

Not available

5

Billy Goat 440146

GRIP 1 1/4 ID X 9.5 LONG

$9.49

$

In Stock, only 2 left!

0

6

Billy Goat 500282

STRAIN RELIEF HEYCO 1244

$2.99

$

In Stock, only 2 left!

0

7

Billy Goat 791119

ENGINE 25 HP SUBARU

$

$

Currently unavailable

8

Billy Goat 791164

CLAMP FUEL LINE .50"

$1.99

$

Usually ships in 2-11 days

0

9

Billy Goat 791113

TUBE BOOM ARM DL

$229.99

$

Usually ships in 2-11 days

0

10

Billy Goat 791043

CLAMP GAS TANK

$29.99

$

Usually ships in 2-11 days

0

11

Billy Goat 500304

CABLE BATTERY RED 26"

$28.99

$

Usually ships in 2-11 days

0

12

Billy Goat 790133

CABLE BATTERY BLACK 10"

$21.99

$

Usually ships in 2-11 days

0

13

Billy Goat 791160

BRACKET CARBON CANISTER

$9.49

$

Usually ships in 2-11 days

0

14

Billy Goat 791045

EXHAUST GUARD

$135.99

$

In Stock, only 1 left!

0

15

Billy Goat 791042

EXHAUST SUBARU
(Superseded to 791042-S)

$839.99

$

Usually ships in 2-11 days

0

16

Billy Goat 360243

LANYARD 10" PLASTIC

$4.99

$

Usually ships in 2-11 days

0

17

Billy Goat 791120-S

IMPELLER DL

$989.99

$

Usually ships in 2-11 days

0

18

Billy Goat 790142

LABEL DL INSTRUCT/WARN

$14.99

$

In Stock, only 1 left!

0

19

Billy Goat 791100

BASE ENGINE ASSY DL
(Superseded to 791174)

$745.99

$

Usually ships in 2-11 days

0

20

Billy Goat 520004

LYNCH PIN

$2.49

$

In Stock, only 2 left!

0

21

Billy Goat 791114-S

ELBOW ASSY DL
(Superseded to 792611)

$1484.99

$

Usually ships in 2-11 days

0

22

Billy Goat 791065

CLAMP QUICK RELEASE 12"

$

$

Not available

23

Billy Goat 791068

LEVER HOSE SWITCH

$29.99

$

Usually ships in 2-11 days

0

24

Billy Goat 791034

HOSE 12" x 10' INTAKE

$

$

Not available

25

Billy Goat 790149

NOZZLE INTAKE 12" FORMED
(Superseded to 790149-S)

$131.99

$

Usually ships in 2-11 days

0

26

Billy Goat 790150-01

CLAMP HOSE 12"

$23.99

$

In Stock, only 1 left!

0

27

Billy Goat 791038

SHAFT GEAR WORM

$23.99

$

Usually ships in 2-11 days

0

28

Billy Goat 791109

GEAR WORM

$40.99

$

Usually ships in 2-11 days

0

29

Billy Goat 790153

BAND HOSE BOOM 12" FORMED

$79.99

$

Usually ships in 2-11 days

0

30

Billy Goat 791020-S

CUT OFF LOADER

$148.99

$

In Stock, only 1 left!

0

31

Billy Goat 791081

EYE BOLT

$9.99

$

Usually ships in 2-11 days

0

32

Billy Goat 500269

SCREWCAP 7/16-20X3 1/2" GR.8 WITH PATCH [TORQUE 55-60 ft.lb.]

$6.99

$

In Stock, only 1 left!

0

33

Billy Goat 791105

INTAKE HOUSING DL 12"

$395.99

$

Usually ships in 2-11 days

0

34

Billy Goat 791095

PLUNGE SWITCH

$49.99

$

Usually ships in 2-11 days

0

35

Billy Goat 791096

HARNESS WIRE DL

$35.99

$

Usually ships in 2-11 days

0

36

Billy Goat 791027

HOOK SNAP SAFETY

$12.99

$

In Stock, only 1 left!

0

37

Billy Goat 791151

SCREW BUTTON HEAD 5/16"-18 X 1"

$1.49

$

In Stock, Qty 10

0

38

Billy Goat 791070

CLAMP FUEL HOSE LINE

$5.99

$

Usually ships in 2-11 days

0

39

Billy Goat 791018-S

INTERIOR LINER

$329.99

$

In Stock, only 1 left!

0

40

Billy Goat 791080

WASHER FACE BOLT

$1.49

$

In Stock, only 1 left!

0

41

Billy Goat 791117

CHAIN HANG HOSE DL
(Superseded to 791117-S)

$57.99

$

Usually ships in 2-11 days

0

42

Billy Goat 8171003

WASHER 5/16" FLAT ZP

$0.99

$

In Stock, Qty 10

0

43

Billy Goat 810736

LABEL FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

44

Billy Goat 840215

WIRE TAP IN

$1.99

$

Usually ships in 2-11 days

0

45

Billy Goat 791116

HANDLE NOZZLE
(Superseded to 791116-S)

$181.99

$

In Stock, only 1 left!

0

46

Billy Goat 8195162

ROLL PIN .1875 X 0.875

$0.99

$

Usually ships in 2-11 days

0

47

Billy Goat 791079

NUT WASHER FACE

$0.99

$

Usually ships in 2-11 days

0

48

Billy Goat 791056

PLUG TUBE INSERT 1.25 OD

$

$

Not available

49

Billy Goat 791161

CABLE TIE

$5.99

$

Usually ships in 2-11 days

0

50

Billy Goat 791162

LINE FUEL 1/4" ID X 24"

$18.99

$

Usually ships in 2-11 days

0

51

Billy Goat 8041032

SCREWCAP 5/16-18 x 2

$0.99

$

In Stock, Qty 6

0

52

Billy Goat 8041054

SCREWCAP 3/8-16 X 2

$0.99

$

In Stock, Qty 5

0

53

Billy Goat 791078

BUTTON HEAD 5/16-18 X 3/4

$1.49

$

Usually ships in 2-11 days

0

54

Billy Goat 8024040

CARRIAGE BOLT 5/16x18x1

$0.99

$

In Stock, only 1 left!

0

55

Billy Goat 8024050

BOLT CARR. 5/16 - 18 x 3 1/2

$0.99

$

Usually ships in 2-11 days

0

56

Billy Goat 8024058

CARRIAGE BOLT 3/8x16x1

$1.49

$

In Stock, Qty 7

0

57

Billy Goat 8024025

CARRIAGE BOLT 1/4-20 X 1 3/4

$0.99

$

Usually ships in 2-11 days

0

58

Billy Goat 811215

LABEL WARNING ENGINE OVERHEAT

$4.49

$

Usually ships in 2-11 days

0

59

Billy Goat 8160001

NUT LOCK 1/4"-20 HEX Z/P

$0.99

$

In Stock, Qty 7

0

60

Billy Goat 8160002

NUT LOCK 5/16-18

$0.99

$

In Stock, only 4 left!

0

61

Billy Goat 8160003

NUT LOCK 3/8

$0.99

$

In Stock, only 1 left!

0

62

Billy Goat 790307

SCREWCAP 7/16-14 X 2 GR 5 W/ PATCHLOCK

$4.99

$

Usually ships in 2-11 days

0

63

Billy Goat 8041014

SCREWCAP 1/4-20 X 3" ZP

$0.99

$

Usually ships in 2-11 days

0

64

Billy Goat 8171004

WASHER FLAT 3/8

$0.99

$

In Stock, Qty 5

0

65

Billy Goat 8172007

WASHER 1/4 SAE

$0.99

$

In Stock, Qty 8

0

66

Billy Goat 8172008

WASHER 5/16 SAE ZP

$0.99

$

In Stock, Qty 9

0

67

Billy Goat 8201131

KEY 1/4" SQ X 4"

$

$

Currently unavailable

68

Billy Goat 8172020

WASHER 5/16 FENDER

$0.99

$

In Stock, only 4 left!

0

69

Billy Goat 791103-S

DOOR FLAPPER INTAKE DL 12"

$157.99

$

Usually ships in 2-11 days

0

70

Billy Goat 790230

BRACKET BATTERY DL

$28.99

$

Usually ships in 2-11 days

0

71

Billy Goat 790231

ROD BATTERY HOLD DOWN

$10.99

$

Usually ships in 2-11 days

0

72

Billy Goat 790232

LABEL WARNING SECURE

$6.49

$

Usually ships in 2-11 days

0

73

Billy Goat 791101-S

HOUSING ASSY DL

$1692.99

$

Usually ships in 2-11 days

0

74

Billy Goat 800365

SAFETY PIN

$2.99

$

Usually ships in 2-11 days

0

75

Billy Goat 890359

SCREW 1/4-20 X 5/8 HWH

$1.49

$

Usually ships in 2-11 days

0

76

Billy Goat 791099

LABEL DL

$17.99

$

Usually ships in 2-11 days

0

77

Billy Goat 791049

PLATE CLAMP SPLIT

$27.99

$

Usually ships in 2-11 days

0

78

Billy Goat 791047

PLATE CLAMP HALF

$31.99

$

Usually ships in 2-11 days

0

79

Billy Goat 791163

LINE FUEL 1/4" X 28"

$21.99

$

Usually ships in 2-11 days

0

80

Billy Goat 8177013

WASHER LOCK 7/16" S/T MED

$0.99

$

In Stock, Qty 9

0

81

Billy Goat 791158

CAP TANK FUEL 6 GAL

$58.99

$

Usually ships in 2-11 days

0

82

Billy Goat 791157

TANK FUEL 6 GAL

$365.99

$

Usually ships in 2-11 days

0

83

Billy Goat 8172008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 9

0

84

Billy Goat 791155

DEBRIS REDUCER DL25

$99.99

$

Usually ships in 2-11 days

0

85

Billy Goat 900503

SPACER 3/8 X 2 1/2

$46.99

$

Usually ships in 2-11 days

0

86

Billy Goat 8041004

SCREWCAP 1/4-20 x 3/4

$0.99

$

Usually ships in 2-11 days

0

87

Billy Goat 811215

LABEL NOZZLE SECURE

$4.49

$

Usually ships in 2-11 days

0

88

Billy Goat 790301

LABEL WARNING NOZZLE

$6.99

$

In Stock, only 1 left!

0

89

Billy Goat 100330

LABEL, WARNING LINER DL

$2.49

$

In Stock, only 1 left!

0

90

Billy Goat 8171002

WASHER 1/4" FLAT ZP

$0.99

$

In Stock, Qty 10

0

91

Billy Goat 791165

BRACKET PURGE LINE DL25

$31.99

$

Usually ships in 2-11 days

0

92

Billy Goat 900407

TY-WRAP

$0.99

$

In Stock, only 2 left!

0

105

Billy Goat 520116

LABEL MADE IN USA

$

$

Not available
