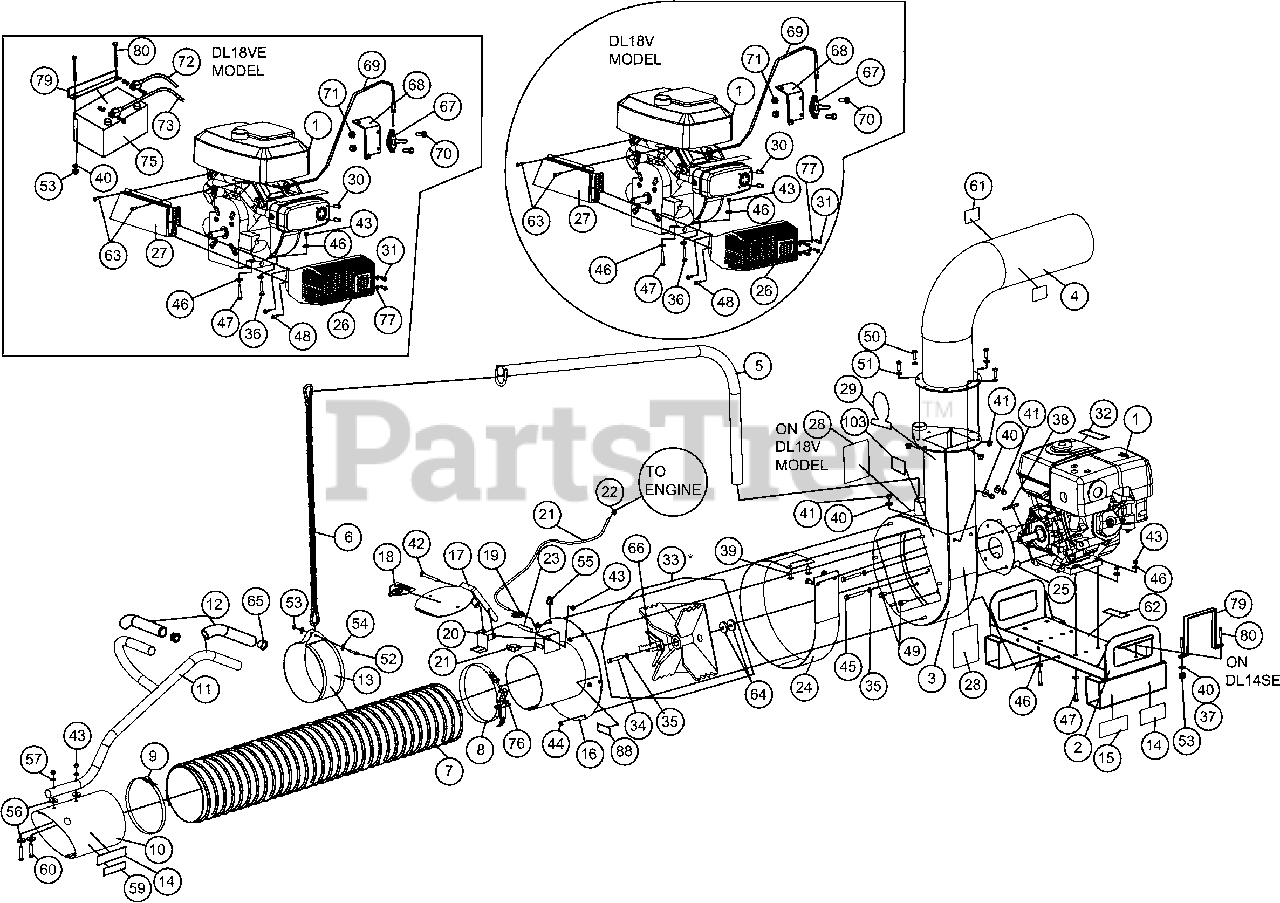

DL 1801 VE - Billy Goat 10" Intake Debris Loader Vacuum Parts Assembly Parts Diagram

10" Intake Debris Loader Vacuum

Parts Assembly Parts Diagram

  • Title

1

Billy Goat 812241

ENGINE VANGUARD ELECTRIC

$

$

Currently unavailable

2

Billy Goat 812100-S

BASE ENGINE WA

$375.99

$

Usually ships in 2-11 days

0

3

Billy Goat 812101-S

HOUSING WA DL18 W/LABELS
(Superseded to 812116-S)

$824.99

$

Usually ships in 2-11 days

0

4

Billy Goat 812248-S

ELBOW ASSY 7" DL

$

$

Not available

5

Billy Goat 812245

BOOM WA DL

$114.99

$

In Stock, only 1 left!

0

6

Billy Goat 791117

CHAIN HOSE HANG DL
(Superseded to 791117-S)

$57.99

$

Usually ships in 2-11 days

0

7

Billy Goat 791033

HOSE 10" X 10"
(Superseded to 791033-S)

$745.99

$

Usually ships in 2-11 days

0

8

Billy Goat 791064

CLAMP QUICK RELEASE 10"

$

$

Not available

9

Billy Goat 810706-01

CLAMP HOSE 10"

$15.99

$

Usually ships in 2-11 days

0

10

Billy Goat 811005-S

NOZZLE 10" STEEL FORMED W/LABELS

$131.99

$

In Stock, only 1 left!

0

11

Billy Goat 791116

HANDLE NOZZLE WA DEBRIS LOADER
(Superseded to 791116-S)

$181.99

$

Usually ships in 2-11 days

0

12

Billy Goat 440146

GRIP 1 1/4 I.D. X 9.5 LONG

$9.49

$

In Stock, only 3 left!

0

13

Billy Goat 810868

BAND HOSE BOOM 10" FORMED

$40.99

$

Usually ships in 2-11 days

0

14

Billy Goat 811215

LABEL WARNING ENGINE OVERHEAT

$4.49

$

Usually ships in 2-11 days

0

15

Billy Goat 100252

LABEL SPARK ARRESTOR
(Superseded to 100256)

$2.99

$

In Stock, Qty 5

0

16

Billy Goat 812103-S

PLATE FRONT WA DL 10"

$593.99

$

Usually ships in 2-11 days

0

17

Billy Goat 791102-S

FLAPPER WA 10" W/LABELS

$120.99

$

Usually ships in 2-11 days

0

18

Billy Goat 400424

LABEL WARNING OPEI

$3.99

$

In Stock, only 1 left!

0

19

Billy Goat 500282

STRAIN RELIEF HEYCO 1244

$2.99

$

In Stock, only 2 left!

0

20

Billy Goat 791068

LEVER HOSE SWITCH

$29.99

$

Usually ships in 2-11 days

0

21

Billy Goat 791130

SWITCH AND HARNESS DL ASSY
(Superseded to 791130-S)

$118.99

$

Usually ships in 2-11 days

0

22

N/A

CONNECTOR TAP IN SQUEEZE

$

$

Not available

23

Billy Goat 900503

SPACER 3/8" X 2 1/2"

$46.99

$

Usually ships in 2-11 days

0

24

Billy Goat 812214

LINER DL18

$174.99

$

In Stock, only 1 left!

0

25

Billy Goat 812238

PLATE ENGINE MOUNT DL18

$64.99

$

Usually ships in 2-11 days

0

26

Billy Goat 812242

GUARD MUFFLER DL18
(Superseded to 812410)

$151.99

$

In Stock, only 1 left!

0

27

Billy Goat 812243

GUARD MANIFOLD DL18

$40.99

$

Usually ships in 2-11 days

0

28

Billy Goat 790142

LABEL DL INSTRUCTION/WARNING

$14.99

$

In Stock, only 1 left!

0

29

Billy Goat 812213

LABEL LOGO DL12/13/18

$9.49

$

In Stock, only 1 left!

0

30

Billy Goat 850198

SPACER CONTROL LIFT

$0.99

$

Usually ships in 2-11 days

0

31

Billy Goat 8122066

SCREW SN #10 X 1" TYPE A SLOT HWH

$0.99

$

Usually ships in 2-11 days

0

32

Billy Goat 100261

LABEL WARNING FUEL EN/SP

$3.99

$

Usually ships in 2-11 days

0

33*

Billy Goat 810930

IMPELLER ASSY (ITEM 66 NOT INCLUDED)

$568.99

$

Usually ships in 2-11 days

0

34

Billy Goat 810932

SCREWCAP 3/8"-24 X 2 1/4" GR 8.

$5.49

$

Usually ships in 2-11 days

0

35

Billy Goat 8177012

WASHER LOCK 3/8"

$0.99

$

In Stock, Qty 9

0

36

Billy Goat 8041032

SCREWCAP 5/16-18 X 2" HCS ZP

$0.99

$

In Stock, Qty 8

0

37

N/A

WASHER 1/4" ZP

$

$

Not available

38

Billy Goat 9201125

KEY 1/4 SQ X 2 3/4"

$2.49

$

Usually ships in 2-11 days

0

39

Billy Goat 8024058

BOLT CARRIAGE 3/8 -16 X 1" ZP

$1.49

$

In Stock, Qty 5

0

40

Billy Goat 8171004

WASHER 3/8 FLAT CUT

$0.99

$

In Stock, Qty 5

0

41

Billy Goat 8160003

NUT LOCK 3/8-16 HEX ZP

$0.99

$

In Stock, Qty 5

0

42

Billy Goat 8024050

BOLT CARRIAGE 5/16" - 18 X 3 1/2" ZP

$0.99

$

Usually ships in 2-11 days

0

43

Billy Goat 8160002

NUT LOCK 5/16-18 HEX ZP

$0.99

$

In Stock, Qty 5

0

44

Billy Goat 350346

NUT FLANGE 5/16-18 HEX ZP

$0.99

$

Usually ships in 2-11 days

0

45

Billy Goat 8041053

SCREWCAP 3/8-16 X 1 3/4" HCS ZP

$1.49

$

Usually ships in 2-11 days

0

46

Billy Goat 8171003

WASHER 5/16 FLAT ZP

$0.99

$

In Stock, only 2 left!

0

47

Billy Goat 8041031

SCREWCAP 5/16-18 X 1 3/4" HCS ZP

$0.99

$

In Stock, only 3 left!

0

48

Billy Goat 890359

SCREW SM 1/4 X 3/4" TYPE AB HX WF

$1.49

$

In Stock, only 3 left!

0

49

Billy Goat 791080

HEX WASHER FACE BOLT 3/8-16 X 3/4

$1.49

$

In Stock, Qty 6

0

50

Billy Goat 8041050

SCREWCAP 3/8-16 X 1" HCS ZP

$0.99

$

In Stock, Qty 5

0

51

Billy Goat 8172009

WASHER 3/8 SAE

$1.49

$

In Stock, Qty 6

0

52

Billy Goat 8041013

SCREWCAP 1/4"-20 X 2 3/4" HCS ZP

$0.99

$

In Stock, Qty 9

0

53

Billy Goat 8160001

NUT LOCK 1/4-20 HEX ZP

$0.99

$

In Stock, Qty 9

0

54

Billy Goat 8172007

WASHER 1/4-20 HEX ZP

$0.99

$

In Stock, Qty 11

0

55

Billy Goat 791070

CLAMP HOSE FUEL LINE

$5.99

$

Usually ships in 2-11 days

0

56

Billy Goat 8172020

WASHER FENDER 5/16

$0.99

$

In Stock, Qty 6

0

57

Billy Goat 8172008

WASHER 5/16 SAE

$0.99

$

In Stock, only 1 left!

0

58

N/A

NOT APPLICABLE TO THIS MODEL

$

$

Not available

59

Billy Goat 790301

LABEL SECURE NOZZLE

$6.99

$

In Stock, only 1 left!

0

60

Billy Goat 8041032

SCREWCAP 5/16" - 18 X 2"

$0.99

$

In Stock, Qty 8

0

61

Billy Goat 810736

LABEL FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

62

Billy Goat 790232

WARNING SECURE

$6.49

$

Usually ships in 2-11 days

0

63

Billy Goat 812381

BOLT 1/4"-20 X 1/2" SER FLANGE

$0.99

$

Usually ships in 2-11 days

0

64

N/A

NOT APPLICABLE TO THIS MODEL

$

$

Not available

65

Billy Goat 791056

PLUG TUBE INSERT 1.25 OD

$

$

Not available

66

Billy Goat 812283

DEBRIS REDUCER DL12/13/18

$82.99

$

Usually ships in 2-11 days

0

67

Billy Goat 440013

THROTTLE CONTROL BLOWER

$40.99

$

In Stock, Qty 17

0

68

Billy Goat 812280

BRACKET MOUNT THROTTLE CONTROL

$16.99

$

Usually ships in 2-11 days

0

69

Billy Goat 812281

CABLE THROTTLE DL18

$23.99

$

Usually ships in 2-11 days

0

70

Billy Goat 830514

SCREW MACH FLAT HD PHIL #10-24

$0.99

$

In Stock, only 2 left!

0

71

Billy Goat 8164005

NUT LOCK #10-24 HEX

$0.99

$

In Stock, only 4 left!

0

72

Billy Goat 812282

CABLE BATTERY RED 36"

$46.99

$

Usually ships in 2-11 days

0

73

Billy Goat 812341

CABLE BATTERY BLACK 20"

$21.99

$

Usually ships in 2-11 days

0

74

N/A

NOT APPLICABLE TO THIS MODEL

$

$

Not available

76

Billy Goat 800365

PIN SAFETY

$2.99

$

Usually ships in 2-11 days

0

77

Billy Goat 8181007

WASHER LOCK 1/4" EXTERNAL TOOTH

$0.99

$

Usually ships in 2-11 days

0

78

Billy Goat 890010

TERMINAL PIGGY BACK 3/16"

$1.49

$

Usually ships in 2-11 days

0

79

Billy Goat 790230

BRACKET BATTERY DL

$28.99

$

In Stock, only 1 left!

0

80

Billy Goat 8041023

SCREWCAP 1/4"-20 X 7" HCS ZP

$4.49

$

Usually ships in 2-11 days

0

88

Billy Goat 100330

LABEL, WARNING LINER DL

$2.49

$

In Stock, only 1 left!

0

103

Billy Goat 520116

LABEL MADE IN U.S.A.

$

$

Not available
