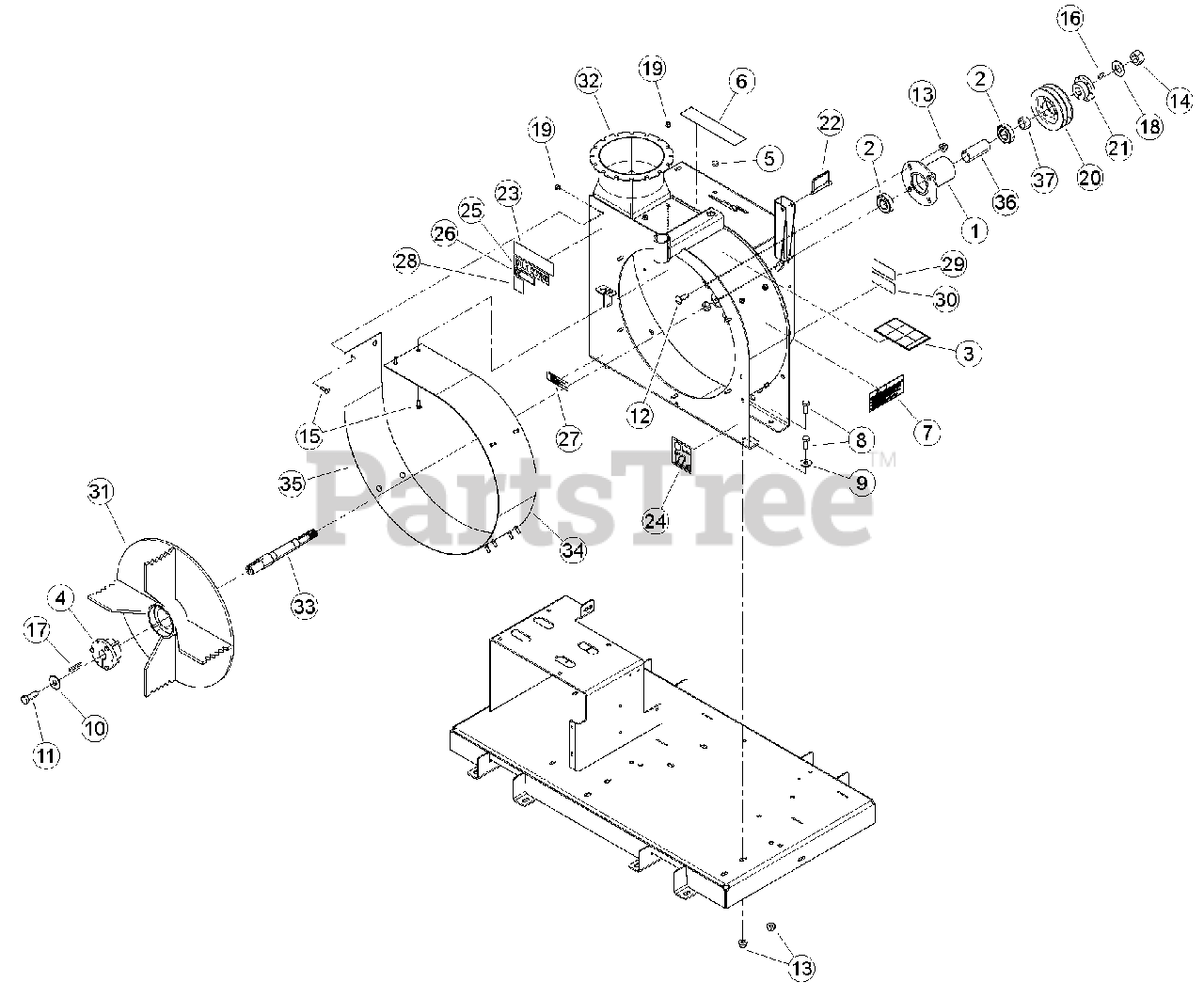

DL 12720 - Bear Cat 12" Debris Loader, 720cc Subaru (SN: B00001 - H03001) Housing (Part 2) Parts Diagram

12" Debris Loader, 720cc Subaru

Housing (Part 2) Parts Diagram

  • Title
1

7504

BEARING, HUB (MACHINED)

$

$

Not available

2

10218

BEARING, 30MM

$

$

Not available

3

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

4

Bear Cat 12437

BUSHING, SK 1-1/4"

$

$

Not available

5

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

6

Bear Cat 14858-00

DECAL, ROTOR ENGAGEMENT

$18.99

$

Usually ships in 3-7 days

0

7

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

8

15013

BOLT, 1/2 X 1-1/4" GR5 HHCS NC ZP

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

10

Bear Cat 15035

WASHER, 5/8" FLAT ZP

$

$

Not available

11

15151

BOLT, 5/8 X 1-3/4 G5 NF HX CAP ZP

$

$

Not available

12

Bear Cat 15157

BOLT, 1/2 X 1-1/2" GR5 CRG ZP

$8.49

$

Usually ships in 3-7 days

0

13

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

14

15244

NUT, 1" CENTERLOCK NC ZP

$

$

Not available

15

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

16

Bear Cat 15365

KEY, 1/4" SQ X 1" LG

$

$

Not available

17

Bear Cat 15391

KEY, 1/4" SQ X 2" PLAIN

$

$

Not available

18

15425

WASHER, 1" SAE FLAT ZP

$

$

Not available

19

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

20

Bear Cat 16326

SHEAVE, 2B5.2 SDS

$123.99

$

Usually ships in 3-7 days

0

21

Bear Cat 16458

BUSHING, SDS 1"

$

$

Not available

22

16808

PIN, 3/8 X 2-3/4" SNAP

$

$

Not available

23

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

24

18997-00

DECAL, 122 DB

$

$

Not available

25

31470-00

DECAL, MODEL DL12720

$

$

Not available

26

31666-00

DECAL, DL12720 INFORMATION

$

$

Not available

27

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO

$9.99

$

Usually ships in 3-7 days

0

28

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

29

32519-00

DECAL, EPA EVAP

$

$

Not available

30

32730-00

DECAL, CARB EVAP

$

$

Not available

31

Bear Cat 70280-00

WELDMENT, FAN "BEAR CLAW"

$781.99

$

Usually ships in 3-7 days

0

32

Bear Cat 77050-35

WELDMENT, FAN HOUSING

$

$

Not available

33

Bear Cat 77063-00

SHAFT, VACUUM FAN

$94.99

$

Usually ships in 3-7 days

0

34

Bear Cat 77073-00

WRAP, HOUSING FAN

$321.99

$

Usually ships in 3-7 days

0

35

Bear Cat 77073-00

WRAP, HOUSING FAN

$321.99

$

Usually ships in 3-7 days

0

36

Bear Cat 77219-00

SPACER, BEARING HUB

$50.99

$

Usually ships in 3-7 days

0

37

Bear Cat 77762-00

SPACER, 1-1/2 X 11/16

$38.99

$

Usually ships in 3-7 days

0
