DL 12720 - Bear Cat 12" Debris Loader, 720cc Subaru (SN: B00001 - H03001) Engine (Part 2) Parts Diagram

12" Debris Loader, 720cc Subaru

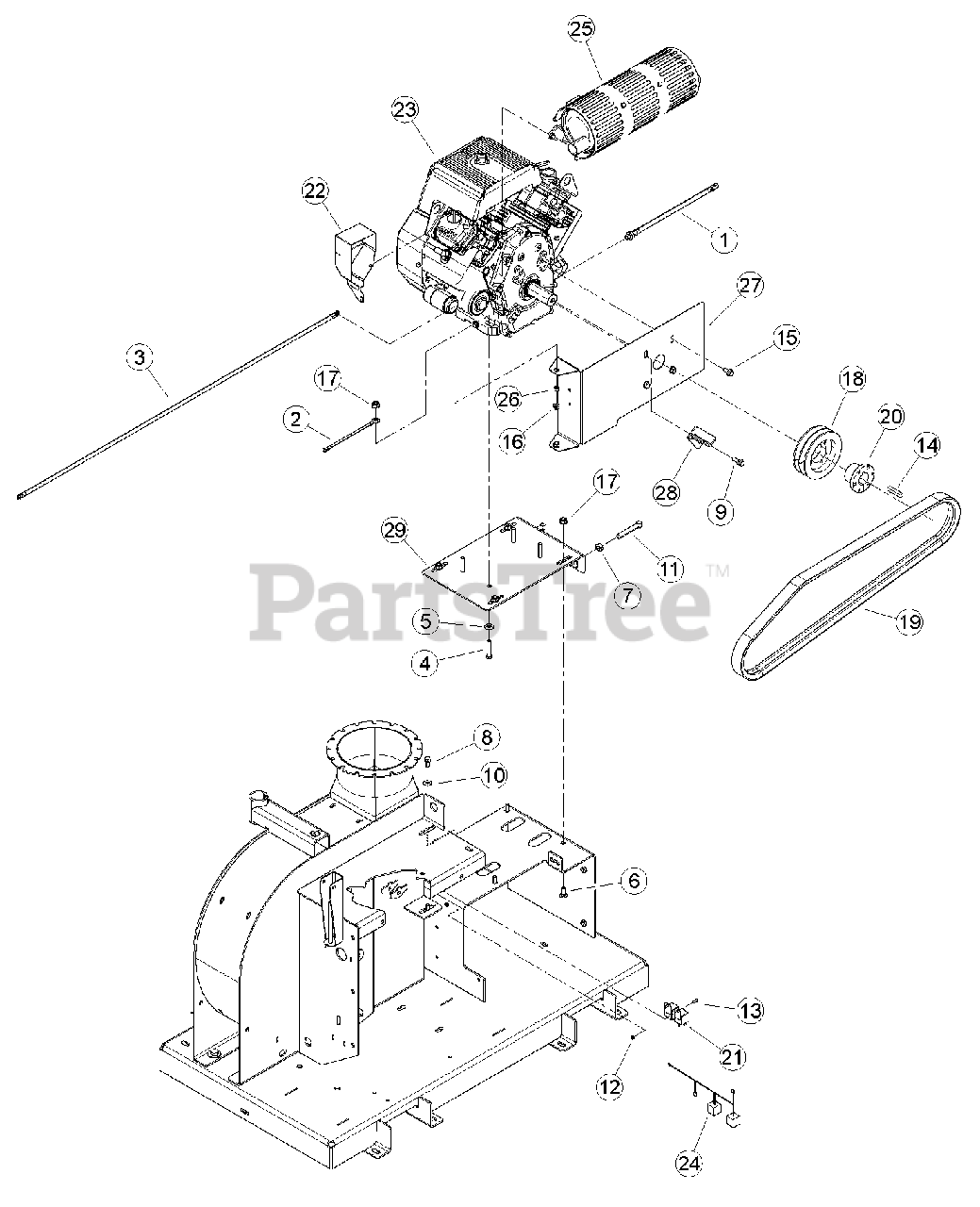

Engine (Part 2) Parts Diagram

  • Title

1

Bear Cat 14373-00

HOSE ASSEMBLY, CRANKCASE DRAIN

$76.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14629-00

CABLE, 50" NEG (R/R)

$

$

Not available

3

Bear Cat 14985-00

CABLE, 48" POS (R/R)

$

$

Not available

4

Bear Cat 15008

BOLT, 3/8 X 2 GR5 HEX CAPSCREW ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

7

15089

NUT, 1/2 NC ZP JAM

$

$

Not available

8

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

9

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

11

15285

SETSCREW, 1/2 X 3 SQ HD 1/2 DOG PT

$

$

Not available

12

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

13

15423

SCREW, MCH 10-24 X 1/2" PAN HD PH ZP

$

$

Not available

14

Bear Cat 15440

KEY, 3/8" SQ X 2" LG PLAIN

$4.99

$

In Stock, only 2 left!

0

15

15617

BOLT, 3/8 X 3/4" SERRATED FLANGE

$

$

Not available

16

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

17

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

18

Bear Cat 16326

SHEAVE, 2B5.2 SDS

$123.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16347

BELT, 2B70 BANDED ARAMID

$129.99

$

Usually ships in 3-7 days

0

20

Bear Cat 16552

BUSHING, SD 1-7/16"

$57.99

$

Usually ships in 3-7 days

0

21

Bear Cat 31238-00

RELAY, 12V SPDT W/ FLANGE

$58.99

$

Usually ships in 3-7 days

0

22

CONTROL, SUBARU V-TWIN IGNITION (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

23

ENGINE, SUBARU 720CC EH72 (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

24

Bear Cat 31610-00

HARNESS, CARB SAFETY RELAY

$105.99

$

Usually ships in 3-7 days

0

25

MUFFLER, SUBARU OIL FILTER SIDE (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

26

Bear Cat 70321-00

SPACER, .334 X .50 X .29

$18.99

$

Usually ships in 3-7 days

0

27

Bear Cat 70866-12

PLATE, DL ENGINE SHIELD

$84.99

$

Usually ships in 3-7 days

0

28

Bear Cat 70867-12

GUIDE, BELT DL ENGINE MOUNT

$

$

Not available

29

Bear Cat 77052-12

WELDMENT, ENGINE PLATE

$153.99

$

Usually ships in 3-7 days

0
