DL 12653 - Bear Cat 12" Debris Loader, 653cc Subaru (SN: B00001 - H03001) Discharge Tube (Part 1) Parts Diagram

12" Debris Loader, 653cc Subaru

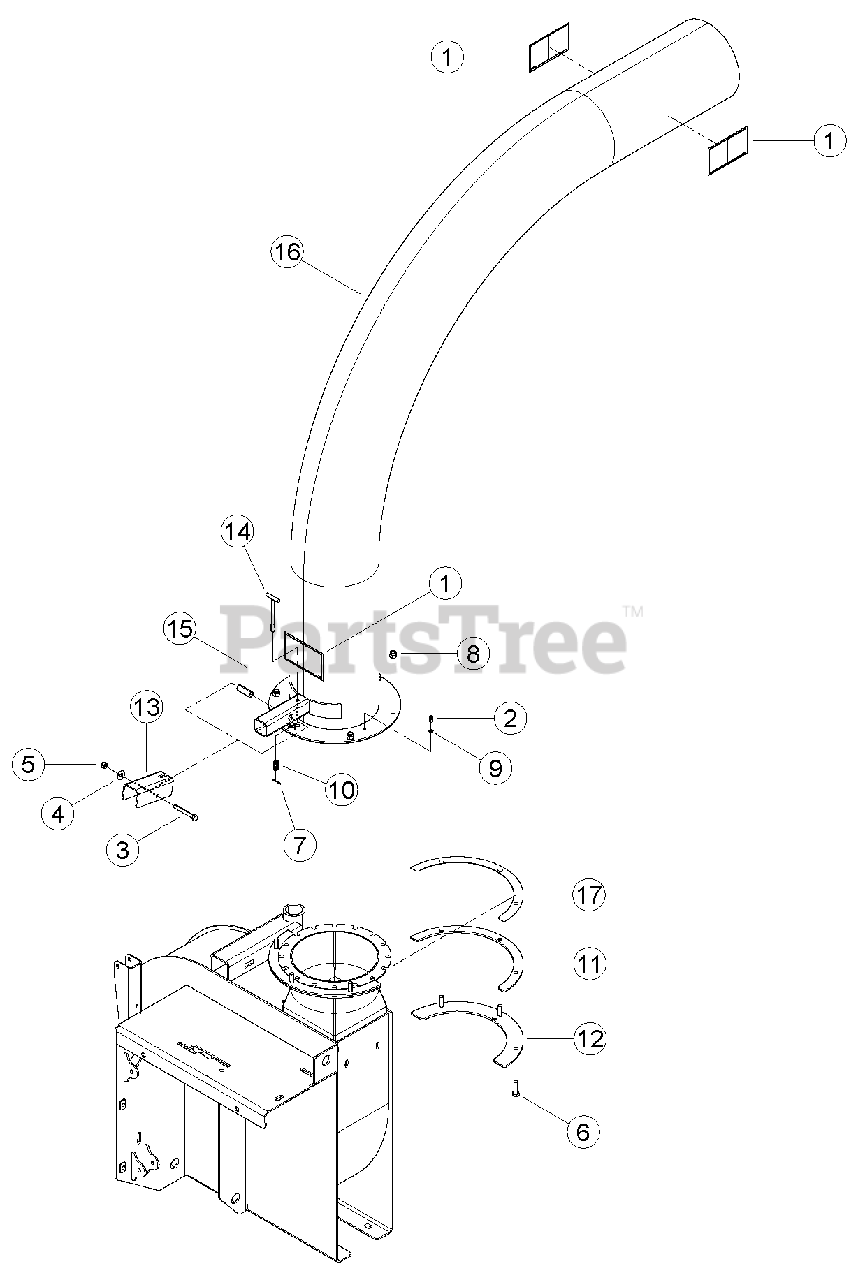

Discharge Tube (Part 1) Parts Diagram

  • Title
1

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

3

Bear Cat 15154

BOLT, 5/16 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

5

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

6

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

7

Bear Cat 15380

PIN, 3/32 X 3/4 COTTER

$

$

Not available

8

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

9

Bear Cat 15584

WASHER, .254 X .400 X .048 FLAT

$

$

Not available

10

Bear Cat 16556

SPRING, LOCK COMPRESSION

$7.99

$

Usually ships in 3-7 days

0

11

Bear Cat 71247

RING, DISCHARGE SPACER

$

$

Not available

12

Bear Cat 71248

RING, DISCHARGE CLAMP

$

$

Not available

13

Bear Cat 71252

LEVER, DISCHARGE LOCK

$43.99

$

Usually ships in 3-7 days

0

14

WELDMENT, DISCHARGE LOCK PIN (REPLACED AND SUPERSEDED 71253. FOR SERVICE ORDER KIT 70203-00)

$

$

Not available

15

Bear Cat 71256

TUBE, DISCHARGE LOCK PIVOT

$14.99

$

Usually ships in 3-7 days

0

16

Bear Cat 73137-12

WELDMENT, DISCHARGE TUBE
(Superseded to 70424-00)

$1056.99

$

Usually ships in 3-7 days

0

17

Bear Cat 74811-12

SHIM, DISCHARGE SPACER RING

$

$

Not available
