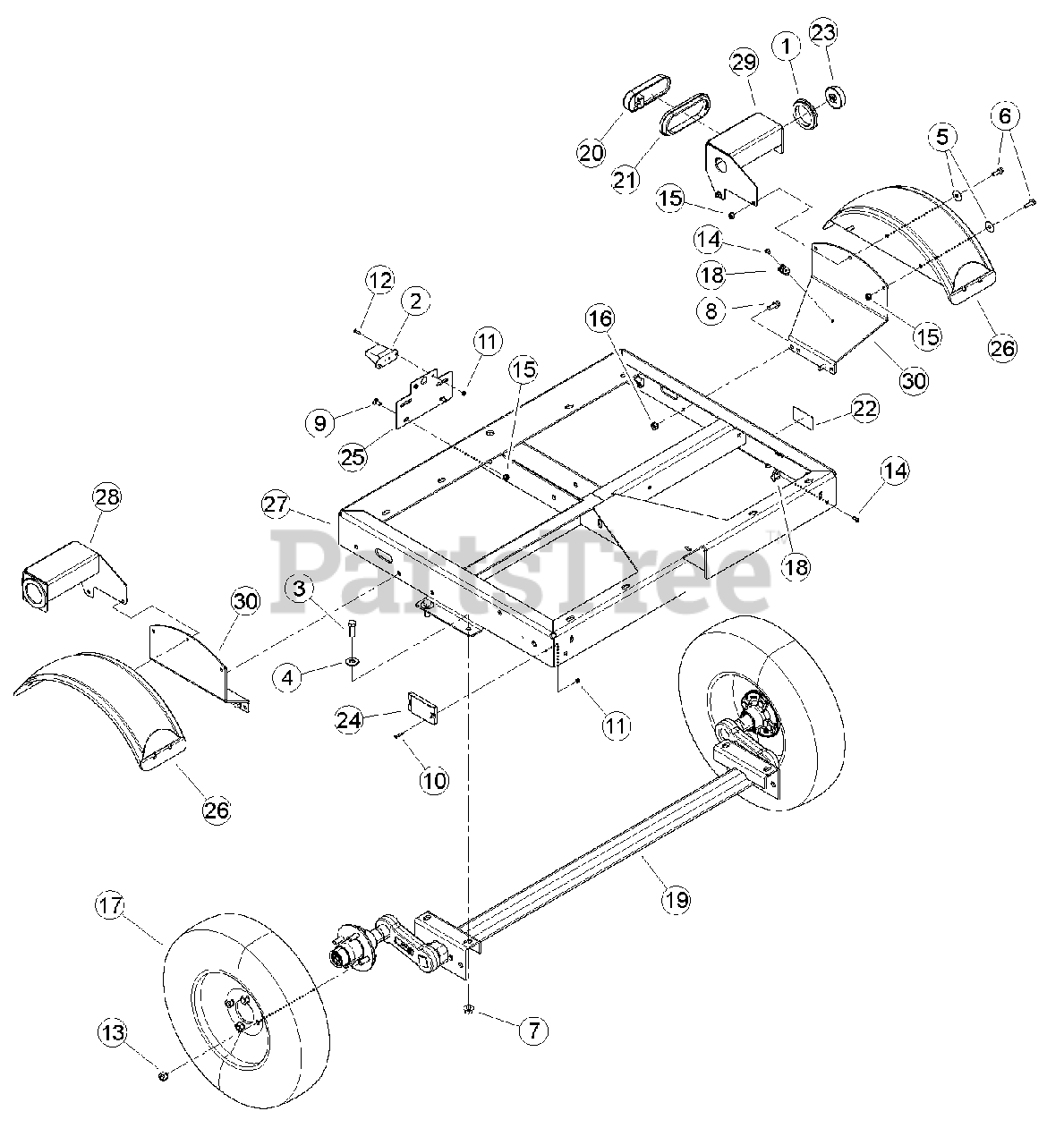

DL 12 - Bear Cat 12" Debris Loader, 896cc Briggs & Stratton (SN: H04989 & Above) Optional Trailer (Axle) Parts Diagram

12" Debris Loader, 896cc Briggs & Stratton

Optional Trailer (Axle) Parts Diagram

  • Title

1

Bear Cat 14366-00

GROMMET, CLEARANCE LIGHT

$

$

Not available

2

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

3

Bear Cat 15014

BOLT, 1/2-13 X 1-1/2 HEX HD GR5

$1.49

$

In Stock, only 3 left!

0

4

Bear Cat 15034

WASHER, 1/2 FLAT

$

$

Not available

5

Bear Cat 15040

WASHER, 5/16" FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

7

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

8

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

9

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

10

15393

SCREW, MCH 10-24 X 1" RND HD PHL ZP

$

$

Not available

11

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

12

Bear Cat 15460

SCREW, MCH #10-24 X 3/4" PAN HD PH ZP

$

$

Not available

13

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

14

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

17

Bear Cat 16548

ASSEMBLY, 5.30-12 TIRE + SPOKE RIM

$342.99

$

Usually ships in 3-7 days

0

18

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

19

Bear Cat 31658-00

AXLE, 2000 LB TORSION

$1009.99

$

Usually ships in 3-7 days

0

20

Bear Cat 31736-00

TAIL LIGHT, OVAL LED

$51.99

$

Usually ships in 3-7 days

0

21

31737-00

GROMMET, OVAL TAIL LIGHT

$

$

Not available

22

32161-00

DECAL, 5.30-12 LOAD RATING

$

$

Not available

23

33170-00

LIGHT, CLEARANCE/MARKER RND RED LED

$

$

Not available

24

Bear Cat 74911-00

KIT, LED AMBER LIGHT

Note: (INCLUDES PN 33875-00 & 33876-00)

$55.99

$

Usually ships in 3-7 days

0

25

Bear Cat 75543-12

PLATE, LICENSE

$

$

Not available

26

Bear Cat 76624-00

FENDER, BLACK PLASTIC DRILLED

$92.99

$

Usually ships in 3-7 days

0

27

77039-12

WELDMENT, TRAILER BASE

$

$

Not available

28

77494-12

BRACKET, LIGHT RH

$

$

Not available

29

77495-12

BRACKET, LIGHT LH

$

$

Not available

30

77555-12

MOUNT, FENDER

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

32325-00

HARNESS, DEBRIS LOADER

Note: (NOT SHOWN)

$

$

Not available

33875-00

TERMINAL, RING #10-18GA

Note: (NOT SHOWN)

$

$

Not available

33876-00

CONNECTOR, BUTT 18-22GA

Note: (NOT SHOWN)

$

$

Not available

77504-00

KIT, SPANISH/PORTUGESE TRAILER/COUPLER DECAL

Note: (NOT SHOWN)

$

$

Not available
