DL 12 - Bear Cat 12" Debris Loader, 896cc Briggs & Stratton (SN: H04989 & Above) Idler Parts Diagram

12" Debris Loader, 896cc Briggs & Stratton

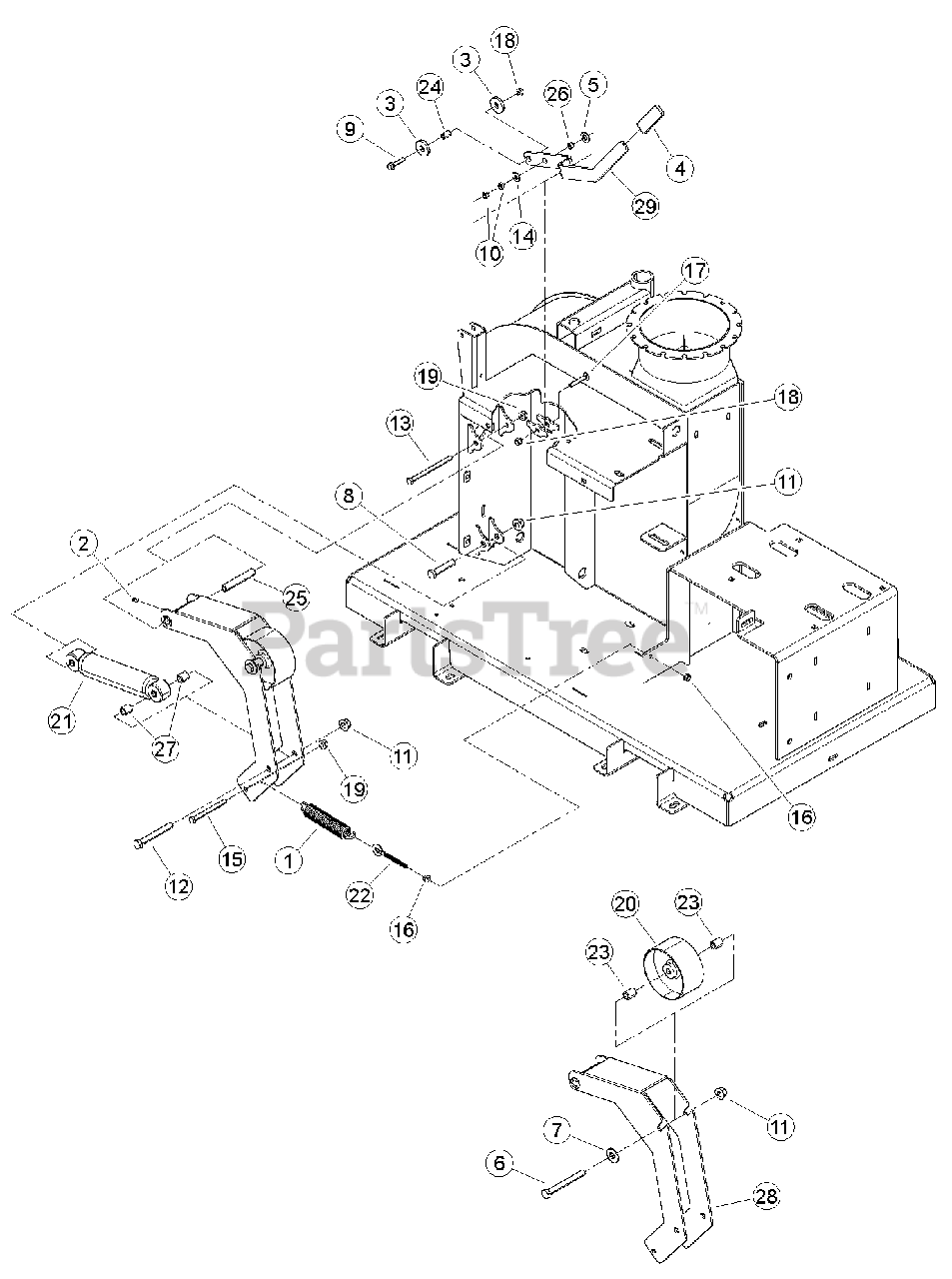

Idler Parts Diagram

  • Title
1

0032-0295-00

SPRING, 9 GAUGE WIRE TENSION

$

$

Not available

2

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

3

Bear Cat 12621

WASHER, UHMW SPACER .515 ID-1.50 OD

$9.49

$

Usually ships in 3-7 days

0

4

Bear Cat 14076-00

GRIP, CLUTCH HANDLE

$5.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14640-00

WASHER, 1/2 INCH NYLON

$2.99

$

Usually ships in 3-7 days

0

6

15017

BOLT, 1/2 X 4-1/2" GR5 HHCS NC ZP

$

$

Not available

7

Bear Cat 15034

WASHER, 1/2 FLAT

$

$

Not available

8

Bear Cat 15092

BOLT, 1/2 X 2-1/2 GR5 HEX CAP ZP

$

$

Not available

9

15122-00

BOLT, 5/16 X 1-1/2 FLANGE NC

$

$

Not available

10

15153

NUT, 5/16 HEX NC - ZP

$

$

Not available

11

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

12

15174

BOLT, 1/2 X 4 HEX CPS G5 ZP

$

$

Not available

13

15205

BOLT, 3/8 X 5" GR5 HEX CPS ZP

$

$

Not available

14

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

15

15272

BOLT, 3/8 X 4" HHCS GR5 NC ZP

$

$

Not available

16

15351

NUT, 5/16-18 SERRATED FLANGE NC

$

$

Not available

17

Bear Cat 15477

BOLT, 5/16 X 2" GR5 NC ZP

$

$

Not available

18

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

19

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

20

Bear Cat 16230

PULLEY, IDLER 5" X 2.50"

$85.99

$

Usually ships in 3-7 days

0

21

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

22

31324-00

BOLT, 5/16 X 3-5/8" EYE

$

$

Not available

23

Bear Cat 70290

SPACER, .75 X .90

$9.99

$

Usually ships in 3-7 days

0

24

Bear Cat 73064

SPACER, .50 X .775

$16.99

$

Usually ships in 3-7 days

0

25

Bear Cat 73480-00

TUBE, PIVOT

$17.99

$

Usually ships in 3-7 days

0

26

Bear Cat 73853-00

SPACER, 1/2 OD X 14 GA WALL X .320

$15.99

$

Usually ships in 3-7 days

0

27

Bear Cat 74041-12

SPACER, IDLER SHEAVE

$15.99

$

Usually ships in 3-7 days

0

28

Bear Cat 77087-12

WELDMENT, IDLER ARM

$

$

Not available

29

Bear Cat 77102-12

HANDLE, ENGAGEMENT

$

$

Not available
