DL 10570 - Bear Cat 10" Debris Loader, 570cc Briggs & Stratton (SN: B00001 - C08625) Housing Parts Diagram

10" Debris Loader, 570cc Briggs & Stratton

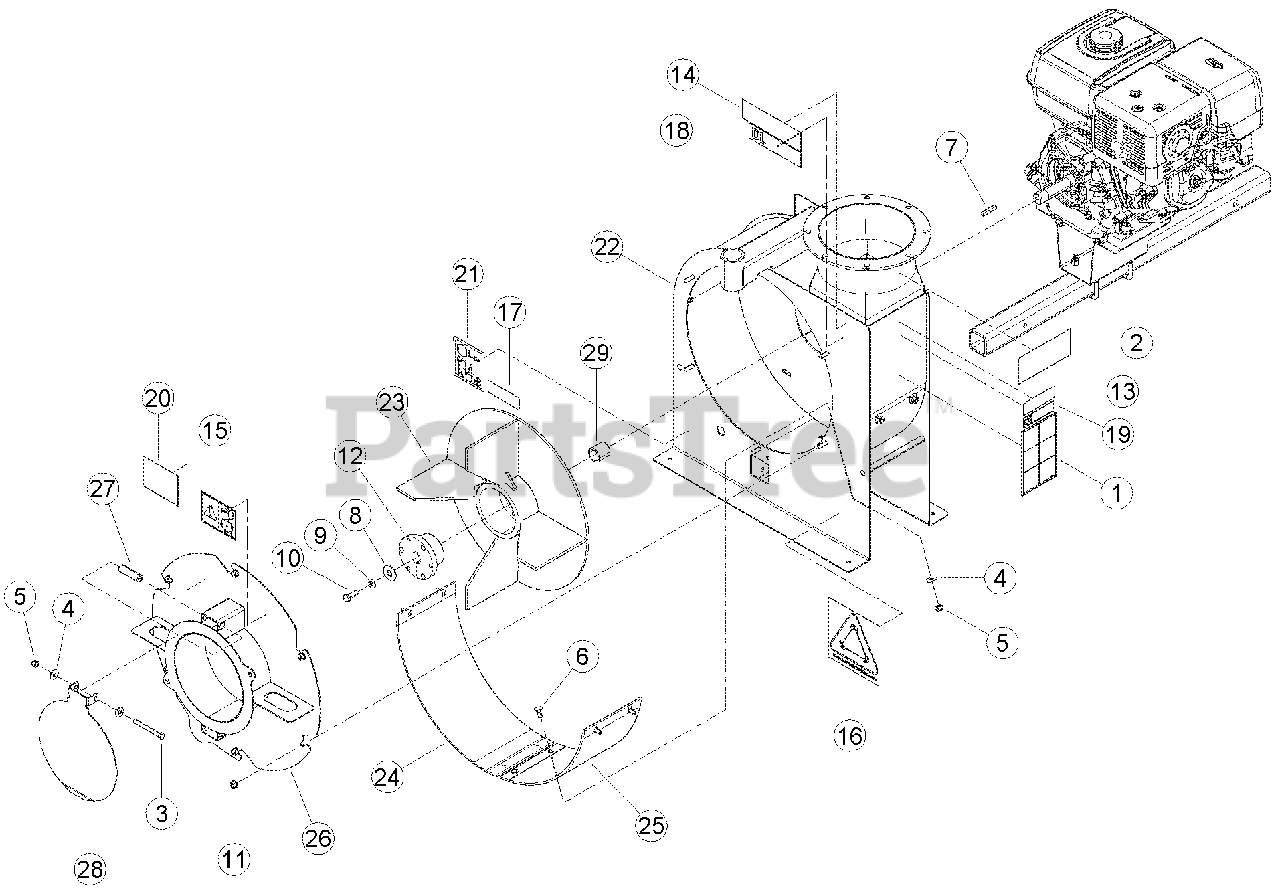

Housing Parts Diagram

  • Title
1

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

2

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

3

Bear Cat 15103

BOLT, 5/16 X 3 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

5

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

6

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

7

Bear Cat 15418

KEY, 1/4 SQUARE X 1-1/2 LONG PLAIN

$

$

Not available

8

15664-00

WASHER, 1/2 GR8 USS ZP

$

$

Not available

9

15665-00

WASHER, 3/8 GR8 USS ZP

$

$

Not available

10

Bear Cat 15778-00

BOLT, 7/16 X 1-1/2 HEX HD GR5 NF ZP

$1.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15818-00

NUT, 5/16 FLANGE TOPLOCK

$0.99

$

Usually ships in 3-7 days

0

12

Bear Cat 16002

BUSHING SK 1-1/8"

$66.99

$

Usually ships in 3-7 days

0

13

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

14

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

15

Bear Cat 18993-00

DECAL, INSTRUCTION ISO

$6.49

$

Usually ships in 3-7 days

0

16

Bear Cat 31390-00

DECAL, COLLECT IT

$34.99

$

Usually ships in 3-7 days

0

17

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO

$9.99

$

Usually ships in 3-7 days

0

18

Bear Cat 36055-00

DECAL, MODEL DL10570

$12.99

$

Usually ships in 3-7 days

0

19

36058-00

DECAL, DL10570 INFO

$

$

Not available

20

Bear Cat 36176-00

DECAL, INSTRUCTION ISO

$6.49

$

Usually ships in 3-7 days

0

21

36507-00

DECAL, 138 DB

$

$

Not available

22

Bear Cat 75692-35

WELDMENT, FAN HOUSING

$1432.99

$

Usually ships in 3-7 days

0

23

Bear Cat 75703-00

WELDMENT, FAN
(Superseded to 78028-00)

$744.99

$

Usually ships in 3-7 days

0

24

Bear Cat 75707-12

LINER, WEAR

$77.99

$

Usually ships in 3-7 days

0

25

Bear Cat 75708-12

LINER, WEAR

$72.99

$

Usually ships in 3-7 days

0

26

Bear Cat 75720-35

WELDMENT, VACUUM INTAKE

$528.99

$

Usually ships in 3-7 days

0

27

Bear Cat 75738-12

SPACER, 5/8 OD X 11 GA X 2.13

$

$

Not available

28

Bear Cat 75737-12

SHIELD, INTAKE

$

$

Not available

29

Bear Cat 76956-00

SPACER, 1-1/2 OD X 3/16 WA X 1.92

$52.99

$

Usually ships in 3-7 days

0
