DL 10 - Bear Cat 10" Debris Loader, 570cc Briggs & Stratton (SN: E08069 & Above) Hose Parts Diagram

10" Debris Loader, 570cc Briggs & Stratton

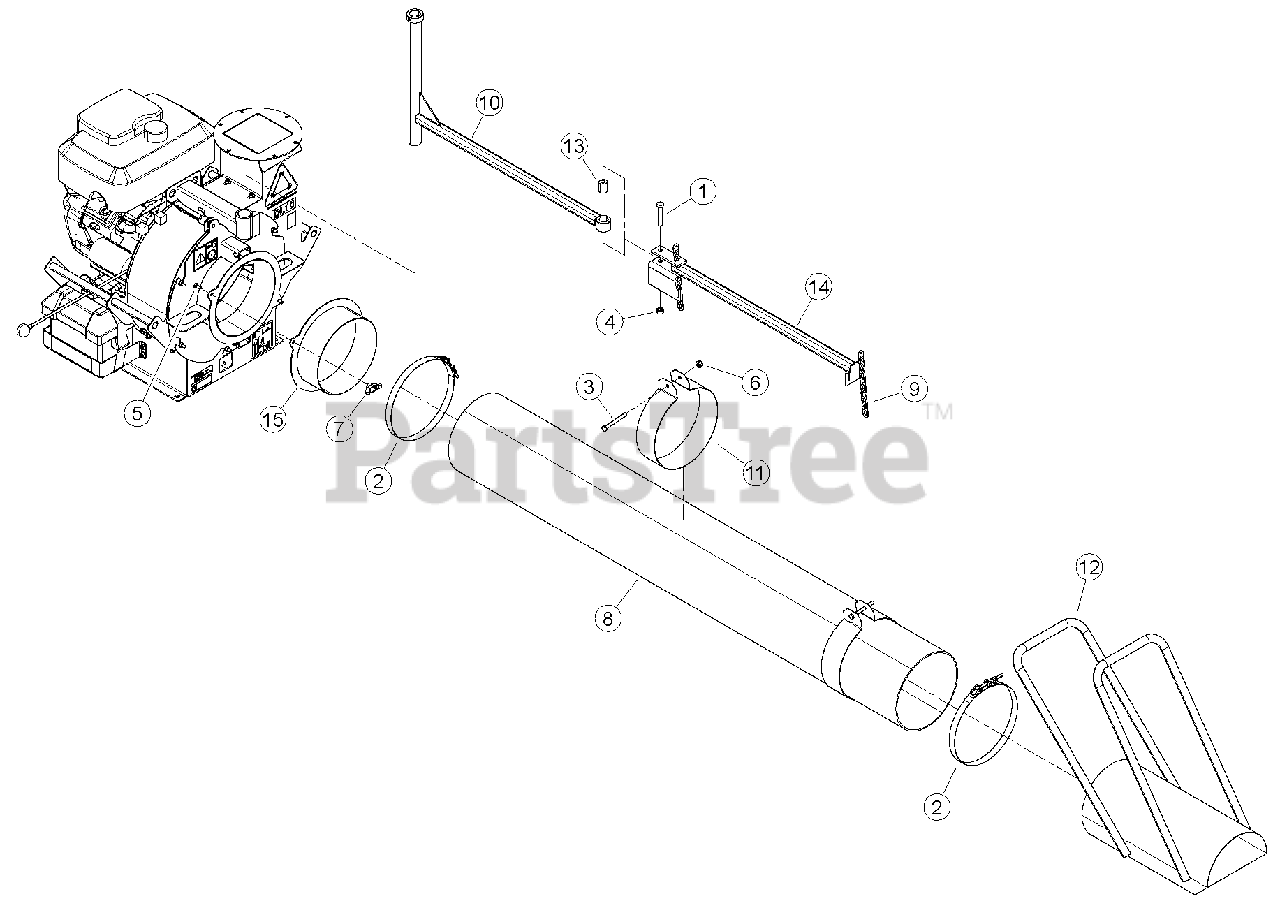

Hose Parts Diagram

  • Title
1

0103-0756-00

BOLT, 1/2 X 2-3/4 HEX GR5 ZP

$

$

Not available

2

0123-0434-00

CLAMP, 10.50" T-BOLT HOSE

$

$

Not available

3

Bear Cat 15010

BOLT, 3/8 X 3-1/2" HEXHD GR5 ZP

$

$

Not available

4

Bear Cat 15049

NUT, 1/2-13 GR5 CENTERLOCK GRB

$

$

Not available

5

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 NC ZP CRG

$

$

Not available

6

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

7

Bear Cat 31994-00

KNOB, 5/16-18 UNC TEE W/ LOCKING INSERT

$8.99

$

Usually ships in 3-7 days

0

8

Bear Cat 36061-00

HOSE, 10 INCH X 12-1/2 FT

$

$

Not available

9

Bear Cat 73159

CHAIN, HOSE SUPPORT

$53.99

$

Usually ships in 3-7 days

0

10

Bear Cat 75715-12

WELDMENT, HOSE SUPPORT

$

$

Not available

11

Bear Cat 75726-12

WRAP, HOSE SUPPORT

$

$

Not available

12

Bear Cat 75727-00

WELDMENT, HOSE INLET 10 INCH

$633.99

$

Usually ships in 3-7 days

0

13

Bear Cat 75749-00

SPACER, 1.00 OD X 0.25 X 1.26

$37.99

$

Usually ships in 3-7 days

0

14

Bear Cat 77453-12

WELDMENT, HOSE SUPPORT

$

$

Not available

15

Bear Cat 77455-12

WELDMENT, INLET ADAPTER

$

$

Not available
