DL 10 - Bear Cat 10" Debris Loader, 570cc Briggs & Stratton (SN: E08069 & Above) Engine Parts Diagram

10" Debris Loader, 570cc Briggs & Stratton

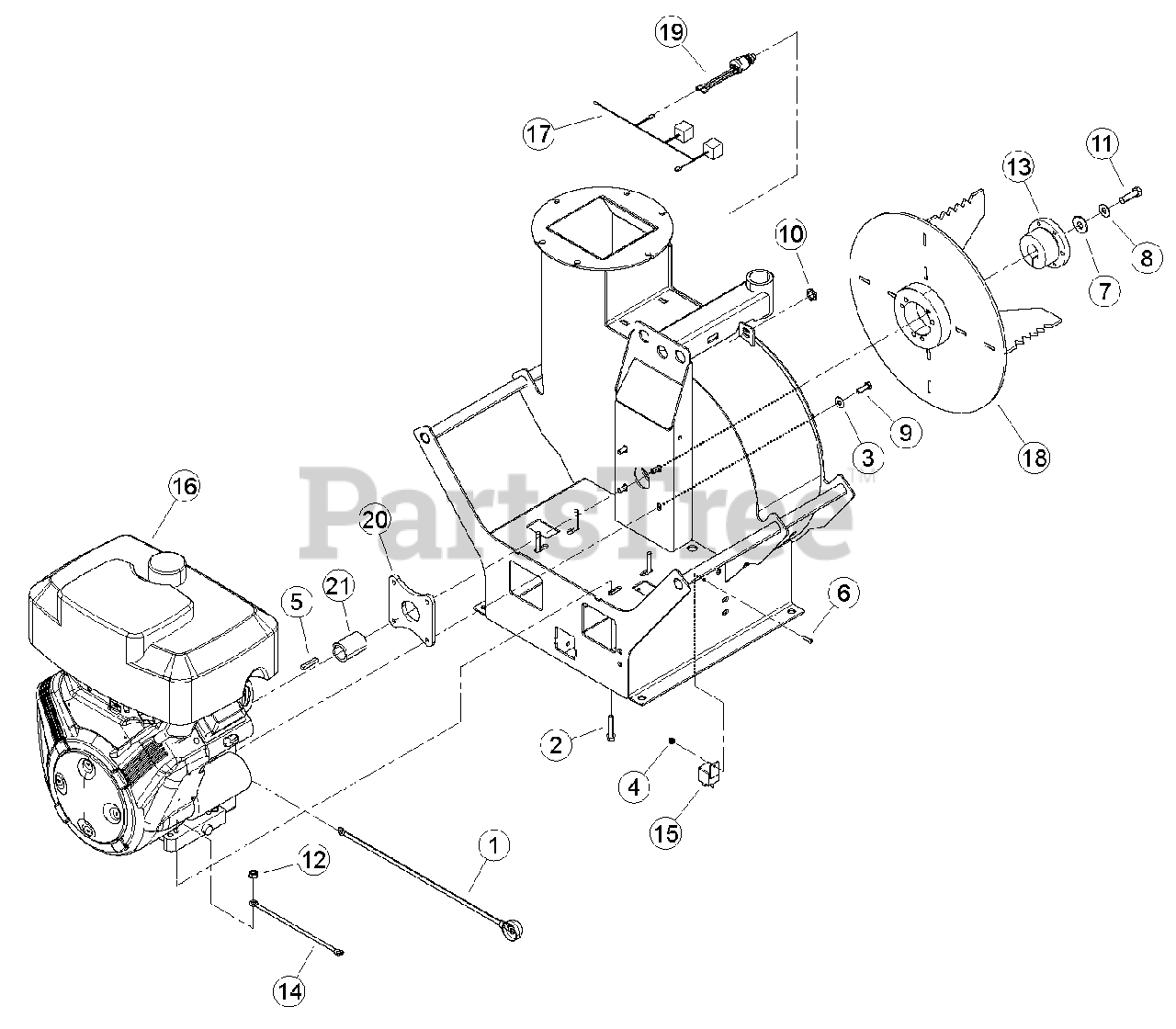

Engine Parts Diagram

  • Title

1

12655

CABLE, 18" POS (R/R WITH BOOT)

$

$

Not available

2

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4 FLANGE NC

$3.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

4

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

5

Bear Cat 15418

KEY, 1/4 SQ X 1-1/2 LG PLAIN

$

$

Not available

6

Bear Cat 15460

SCREW, MCH #10-24 X 3/4" PAN HD PH ZP

$

$

Not available

7

15664-00

WASHER, 1/2 USS GR8 ZP

$

$

Not available

8

15665-00

WASHER, 3/8 USS GR8 ZP

$

$

Not available

9

Bear Cat 15755-00

BOLT, 5/16-24 X 1" HHCS GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

10

Bear Cat 15775-00

NUT, 5/8-32 JAM

$12.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15778-00

BOLT, 7/16 X 1-1/2 NF GR5 HEX ZP

$1.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

13

Bear Cat 16002

BUSHING SK 1-1/8"

$66.99

$

Usually ships in 3-7 days

0

14

Bear Cat 17889

CABLE, 9" NEG (R/R)

$67.99

$

Usually ships in 3-7 days

0

15

Bear Cat 31238-00

RELAY, 12V SPDT W/ FLANGE

$58.99

$

Usually ships in 3-7 days

0

16

ENGINE, BRIGGS V-TWIN 570CC ELECTRIC START (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

17

Bear Cat 32305-00

HARNESS, BRIGGS ENGINE KILL SWITCH

$201.99

$

Usually ships in 3-7 days

0

18

Bear Cat 70245-00

WELDMENT, FAN "BEAR CLAW"
(Superseded to 78028-00)

$744.99

$

Usually ships in 3-7 days

0

19

Bear Cat 76622-00

ASSEMBLY, SEALED SWITCH

$82.99

$

Usually ships in 3-7 days

0

20

Bear Cat 77479-12

PLATE, ENGINE SPACER

$

$

Not available

21

77480-00

SPACER, 1-1/2" OD X 3/16" WA

$

$

Not available

30525

CONDUIT, SPLIT 1/4" ID BLK POLY

Note: (NOT SHOWN)

$

$

Not available
