Diesel 1500cc - Bad Boy Zero-Turn Mower (2019) DIESEL SUSPENSION FORK ASSEMBLY Parts Diagram

Zero-Turn Mower

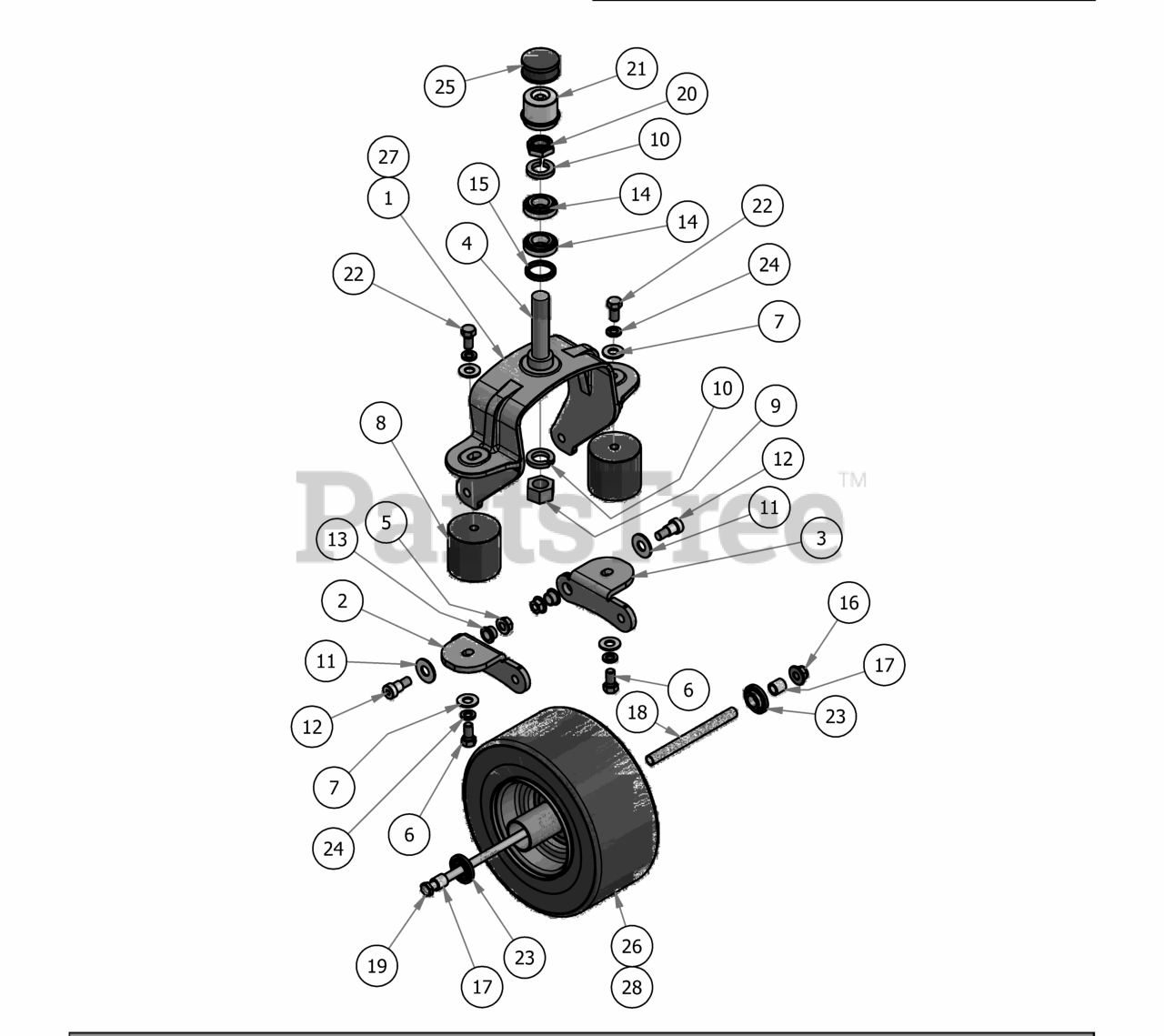

DIESEL SUSPENSION FORK ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 023-0020-00

Suspension Fork Top/Side Combo

$289.99

$

Usually ships in 4-7 days

0

2

Bad Boy 023-0012-00

Suspension Fork - Bottom Left

$33.99

$

Usually ships in 4-7 days

0

3

Bad Boy 023-0013-00

Suspension Fork - Bottom Right

$33.99

$

Usually ships in 4-7 days

0

4

Bad Boy 037-0010-00

Front Suspension Fork Spindle

$45.99

$

In Stock, only 4 left!

0

5

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

6

Bad Boy 018-2030-00

1/2" x 1" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

7

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 032-9002-00

Vibration Mount- Red Dot

$75.99

$

In Stock, only 3 left!

0

9

Bad Boy 013-6016-00

1" Fine Thread Nut

$4.99

$

In Stock, only 2 left!

0

10

Bad Boy 019-3000-00

1" Lock Washer

$3.49

$

In Stock, only 3 left!

0

11

Bad Boy 019-5038-00

5/8'' Flat Washer

$1.99

$

In Stock, Qty 20+

0

12

Bad Boy 018-3001-00

5/8'' x 5/8'' Shoulder Bolt

$16.99

$

In Stock, Qty 11

0

13

Bad Boy 032-5052-00

Bronze Bushing - SF - 2024-8

$4.99

$

In Stock, Qty 11

0

14

Bad Boy 010-7001-00

Bearing

$6.49

$

In Stock, Qty 17

0

15

Bad Boy 012-7003-00

Seal

$10.99

$

In Stock, Qty 9

0

16

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

17

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 17

0

18

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

19

Bad Boy 018-3002-00

1/2'' x 10'' Bolt

$8.49

$

In Stock, Qty 7

0

20

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 10

0

21

Bad Boy 014-7005-00

Dust Cover

$9.99

$

In Stock, Qty 20+

0

22

Bad Boy 018-2080-00

1/2" x 1-1/4" Gr5 Hex Bolt (Coarse)

$1.99

$

Usually ships in 4-7 days

0

23

Bad Boy 022-7010-00

1-3/4" Bearing-Large Bore Front Rim

$21.99

$

In Stock, Qty 20+

0

24

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 20+

0

25

Bad Boy 014-8047-00

Spring Cap Cover

$2.49

$

In Stock, Qty 6

0

26

Bad Boy 022-1050-00

13 x 6.50 - Reliance No-Flat

$202.99

$

In Stock, Qty 12

0

27

Bad Boy 023-7915-98

Suspension Fork Assembly

$388.99

$

Usually ships in 4-7 days

0

28

Bad Boy 022-1050-00

13 x 6.50 - No-Flat Large Bore Orange front Assembly

$202.99

$

In Stock, Qty 12

0
