Diesel 1500cc - Bad Boy Zero-Turn Mower (2019) 1500CC PUMP PLATE ASSEMBLY Parts Diagram

Zero-Turn Mower

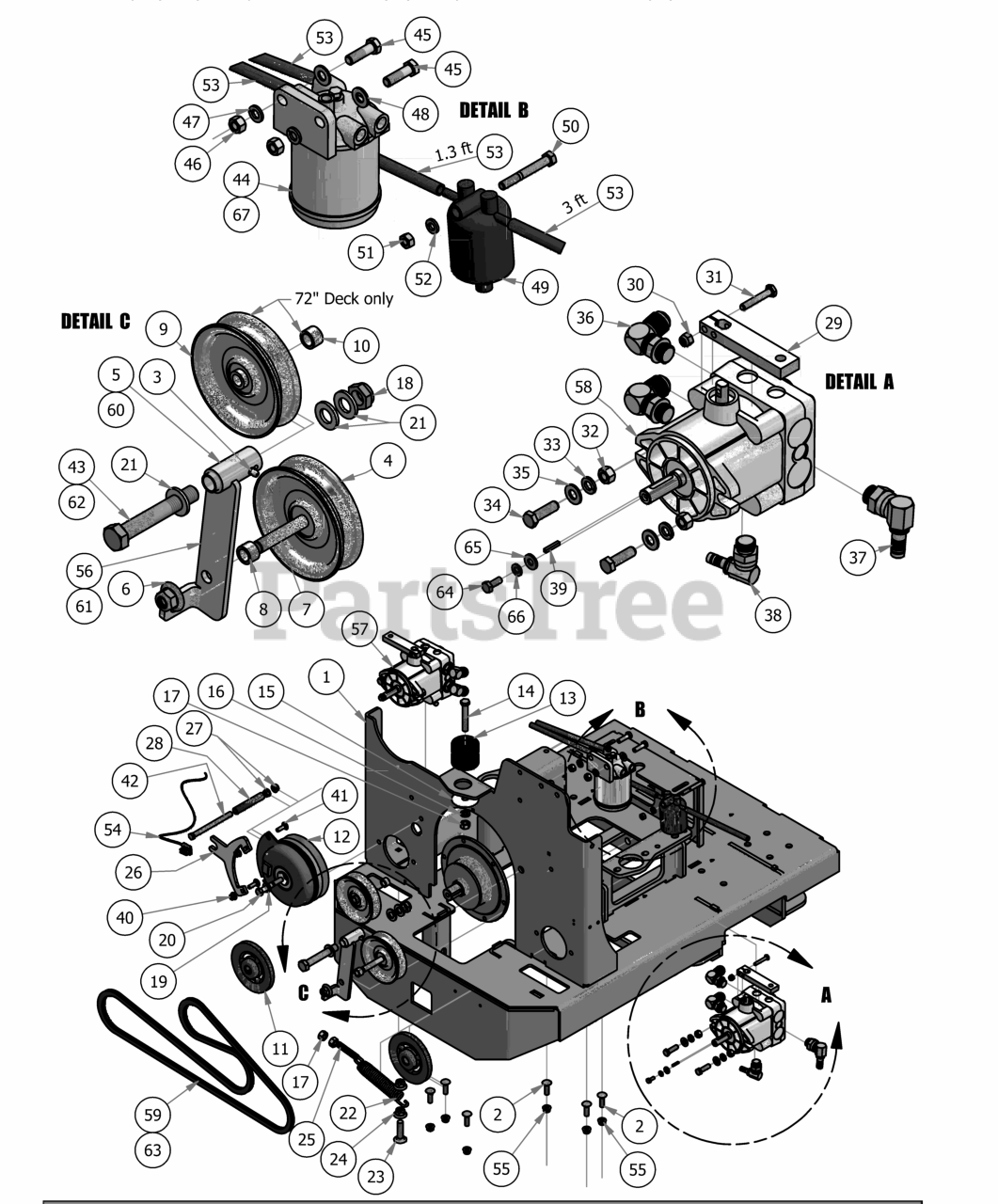

1500CC PUMP PLATE ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 026-8030-00

Pump Plate Diesel

$113.99

$

Usually ships in 0 days

0

2

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

3

Bad Boy 024-3050-00

1/4" Drive in Grease Fitting

$1.49

$

Usually ships in 4-7 days

0

4

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

5

Bad Boy 039-5950-00

Pump Idler Bracket only for 61" Deck

$34.99

$

Usually ships in 4-7 days

0

6

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

7

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

Usually ships in 4-7 days

0

8

Bad Boy 025-7036-00

1/2 x 1/2 Spacer

$4.99

$

In Stock, only 2 left!

0

9

Bad Boy 033-4050-00

5" Idler Pulley only for 72" Deck Diesel

$40.99

$

In Stock, only 2 left!

0

10

Bad Boy 025-7020-00

5/8" x 1/" Collar Spacer only for 72" Deck Diesel

$4.99

$

In Stock, only 2 left!

0

11

Bad Boy 033-5011-00

5" Pump Pulley

$37.99

$

In Stock, Qty 13

0

12

Bad Boy 070-5040-00

Clutch Assembly for Diesel

$454.99

$

In Stock, only 3 left!

0

13

Bad Boy 032-4000-00

Armor Plated Mount-Rear Mount

$81.99

$

Usually ships in 4-7 days

0

14

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

Usually ships in 4-7 days

0

15

Bad Boy 032-4051-00

Snubbing Washer

$18.99

$

Usually ships in 4-7 days

0

16

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

18

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, Qty 6

0

19

Bad Boy 019-8053-00

7/16" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

20

Bad Boy 018-5401-00

7/16" x 2 3/4" Fine Thread Bolt

$2.49

$

Usually ships in 4-7 days

0

21

Bad Boy 019-6017-00

.630 ID x 1.122 OD x .142 THK Plastic Washer

$0.99

$

In Stock, Qty 20+

0

22

Bad Boy 034-2009-00

Deck Idler Spring

$19.99

$

In Stock, Qty 18

0

23

Bad Boy 018-1050-00

1/2 x 2" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

24

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

25

Bad Boy 018-2004-00

1/2-13 x 2-1/2 All Thd Stud

$13.99

$

In Stock, only 4 left!

0

26

Bad Boy 057-5910-10

Diesel PTO Engager Holder

$24.99

$

Usually ships in 4-7 days

0

27

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

28

Bad Boy 051-8076-00

3/8 hose 4" long

$6.99

$

Usually ships in 4-7 days

0

29

Bad Boy 031-5923-00

Pump Arm

$32.99

$

Usually ships in 4-7 days

0

30

Bad Boy 013-8073-00

1/4" Nylock Nut

$0.99

$

In Stock, only 2 left!

0

31

Bad Boy 018-5005-00

1/4" x 1 1/2" Bolt

$0.99

$

Usually ships in 4-7 days

0

32

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

33

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

34

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

35

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

36

Bad Boy 024-2080-00

90 Degree Adaptor 6801-L-8-8 Fitting

$10.99

$

Usually ships in 4-7 days

0

37

Bad Boy 024-5002-00

90 Degree Fitting 1/2" x 3/4" 4601-8-8

$18.99

$

Usually ships in 4-7 days

0

38

Bad Boy 024-5206-00

90 Degree Fitting 3/8" X 9/16"- 4601-6-6

$13.99

$

Usually ships in 4-7 days

0

39

Bad Boy 042-5012-00

5mm x 1.25" Key

$

$

Not available

40

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

41

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, Qty 7

0

42

Bad Boy 018-7055-00

3/8-16 x 5 Hex Bolt - Grade 5

$1.99

$

Usually ships in 4-7 days

0

43

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt 61" Deck only

$4.49

$

In Stock, Qty 8

0

44

Bad Boy 063-2011-00

CAT Fuel Filter

$31.99

$

In Stock, only 4 left!

0

45

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 17

0

46

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

47

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

48

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

49

Bad Boy 015-0007-00

Caterpillar Fuel Bowl Kit

$172.99

$

Usually ships in 4-7 days

0

50

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

$0.99

$

In Stock, only 2 left!

0

51

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, Qty 5

0

52

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

53

Bad Boy 051-8075-00

5/16" fuel line hose

$7.99

$

Usually ships in 4-7 days

0

54

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

55

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, Qty 20+

0

56

Bad Boy 039-5946-98

Pump Idler Assembly Components 3,4,5,6,7,8, only for 61" Deck

$60.99

$

Usually ships in 4-7 days

0

57

Bad Boy 050-5308-00

Left Pump 16cc - AOS Diesel 35Hp Diesel

$1025.99

$

Usually ships in 4-7 days

0

58

Bad Boy 050-5407-00

Right Pump 16cc - AOS Diesel 35Hp Diesel

$1025.99

$

Usually ships in 4-7 days

0

59

Bad Boy 041-8411-00

Pump Belt for 72" Deck

$68.99

$

In Stock, Qty 11

0

60

Bad Boy 039-5945-00

Diesel Pump Idler only on 72" Deck

$34.99

$

Usually ships in 4-7 days

0

61

Bad Boy 039-5945-98

Diesel Pump Idler Assembly Components3,4,5,6,7,8,9,10 only for

$60.99

$

Usually ships in 4-7 days

0

62

Bad Boy 018-6016-00

5/8 x 5 1/2 Bolt only for 72" Deck

$3.49

$

Usually ships in 4-7 days

0

63

Bad Boy 041-5048-00

Pump Belt for 61" Deck

$64.99

$

In Stock, Qty 19

0

64

Bad Boy 018-0024-00

M6-1.0 X 16MM Hex Bolt

$3.49

$

In Stock, Qty 8

0

65

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 7

0

66

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, Qty 6

0

67

Bad Boy 063-2011-01

Perkins Fuel Filter

$28.99

$

In Stock, only 2 left!

0
