Diesel 1500cc - Bad Boy Zero-Turn Mower (2019) 1500CC DIESEL ENGINE Parts Diagram

Zero-Turn Mower

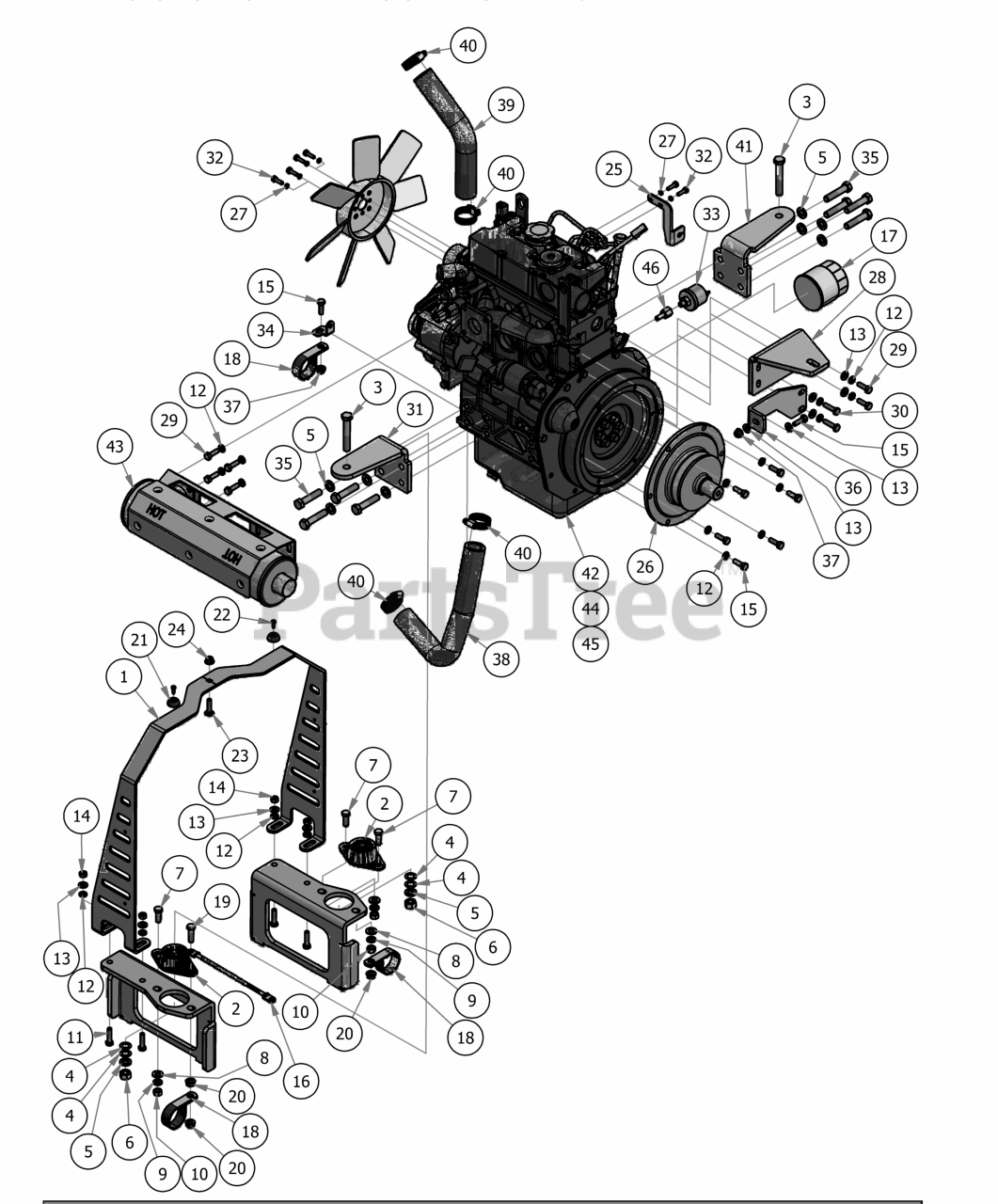

1500CC DIESEL ENGINE Parts Diagram

  • Title

1

Bad Boy 201-8001-00

Hood Holder Diesel

$

$

Not available

2

Bad Boy 032-4050-00

Rubber Isolator

$81.99

$

Usually ships in 4-7 days

0

3

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

Usually ships in 4-7 days

0

4

Bad Boy 019-5010-00

1/2" Brass Washer

$2.99

$

Usually ships in 4-7 days

0

5

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 20+

0

6

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

7

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

8

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

9

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, Qty 11

0

10

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

11

Bad Boy 018-5025-00

5/16" x 1 1/4" Hex Bolt

$

$

Currently unavailable

12

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

13

Bad Boy 019-8044-00

5/16" Flat Washer

$0.99

$

In Stock, Qty 20+

0

14

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, Qty 5

0

15

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 1 left!

0

16

Bad Boy 064-4001-00

Black Battery Cable - Diesel

$23.99

$

Usually ships in 4-7 days

0

17

Bad Boy 063-2010-00

CAT Oil Filter

$36.99

$

In Stock, Qty 6

0

18

Bad Boy 072-8090-00

Diesel Clamp 1 3/4" Vinyl

$3.99

$

Usually ships in 4-7 days

0

19

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

20

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

21

Bad Boy 029-4010-00

Button Bumper

$1.49

$

Usually ships in 4-7 days

0

22

Bad Boy 030-3050-00

#10 x 1/2" Self Tapping Screw

$0.99

$

In Stock, Qty 9

0

23

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

24

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

25

Bad Boy 039-1010-00

Diesel Throttle Bracket (4 Tier)

$5.99

$

Usually ships in 4-7 days

0

26

Bad Boy 017-3000-00

Stub Shaft

$262.99

$

Usually ships in 4-7 days

0

27

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, Qty 6

0

28

Bad Boy 201-8005-00

Air Cleaner Support Diesel

$45.99

$

Usually ships in 0 days

0

29

Bad Boy 018-2001-00

M8 x 1.25 x 25mm Hex Head Bolt

$0.99

$

Usually ships in 4-7 days

0

30

Bad Boy 018-5320-00

M8 x 1.25 x 30mm Hex Head Bolt

$1.49

$

Usually ships in 4-7 days

0

31

Bad Boy 201-8008-00

Diesel Motor Side Support

$33.99

$

Usually ships in 4-7 days

0

32

Bad Boy 018-2000-00

6mm x 20mm Bolt

$0.99

$

Usually ships in 4-7 days

0

33

Bad Boy 086-7004-00

oil pressure guage sender

$136.99

$

Usually ships in 4-7 days

0

34

Bad Boy 039-1015-00

Diesel Radiator Hose Clamp Bracket

$2.49

$

Usually ships in 4-7 days

0

35

Bad Boy 018-6022-00

12mm Bolt- Diesel

$3.49

$

Usually ships in 4-7 days

0

36

Bad Boy 203-8000-00

Muffler Brace Diesel

$20.99

$

Usually ships in 0 days

0

37

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

38

Bad Boy 051-3001-00

Bottom Radiator Hose for Diesel

$29.99

$

Usually ships in 4-7 days

0

39

Bad Boy 051-3000-00

Top Radiator Hose for Diesel

$23.99

$

Usually ships in 4-7 days

0

40

Bad Boy 072-2003-00

1 1/8" Hose Clamp

$6.49

$

Usually ships in 4-7 days

0

41

Bad Boy 201-8009-00

Diesel Side Motor Mount (Left)

$33.99

$

Usually ships in 4-7 days

0

42

Bad Boy 015-5600-00

1500cc CAT Diesel

$

$

Currently unavailable

43

Bad Boy 015-0010-00

Diesel Muffler

$257.99

$

Usually ships in 4-7 days

0

44

Bad Boy 015-6000-00

1500cc Diesel CAT (Canada Only)

$

$

Not available

45

Bad Boy 015-6070-00

1500cc Perkins Diesel

$

$

Not available

46

Bad Boy 024-0070-00

8mm x 1/8in mpt Oil Pressure Adaptor

$53.99

$

Usually ships in 4-7 days

0

47

Bad Boy 063-2012-00

Internal Fuel Filter (Not Pictured)

$83.99

$

Usually ships in 4-7 days

0
