Diesel 1500cc - Bad Boy Zero-Turn Mower (2019) 1500CC DIESEL BACK PUMP COVER Parts Diagram

Zero-Turn Mower

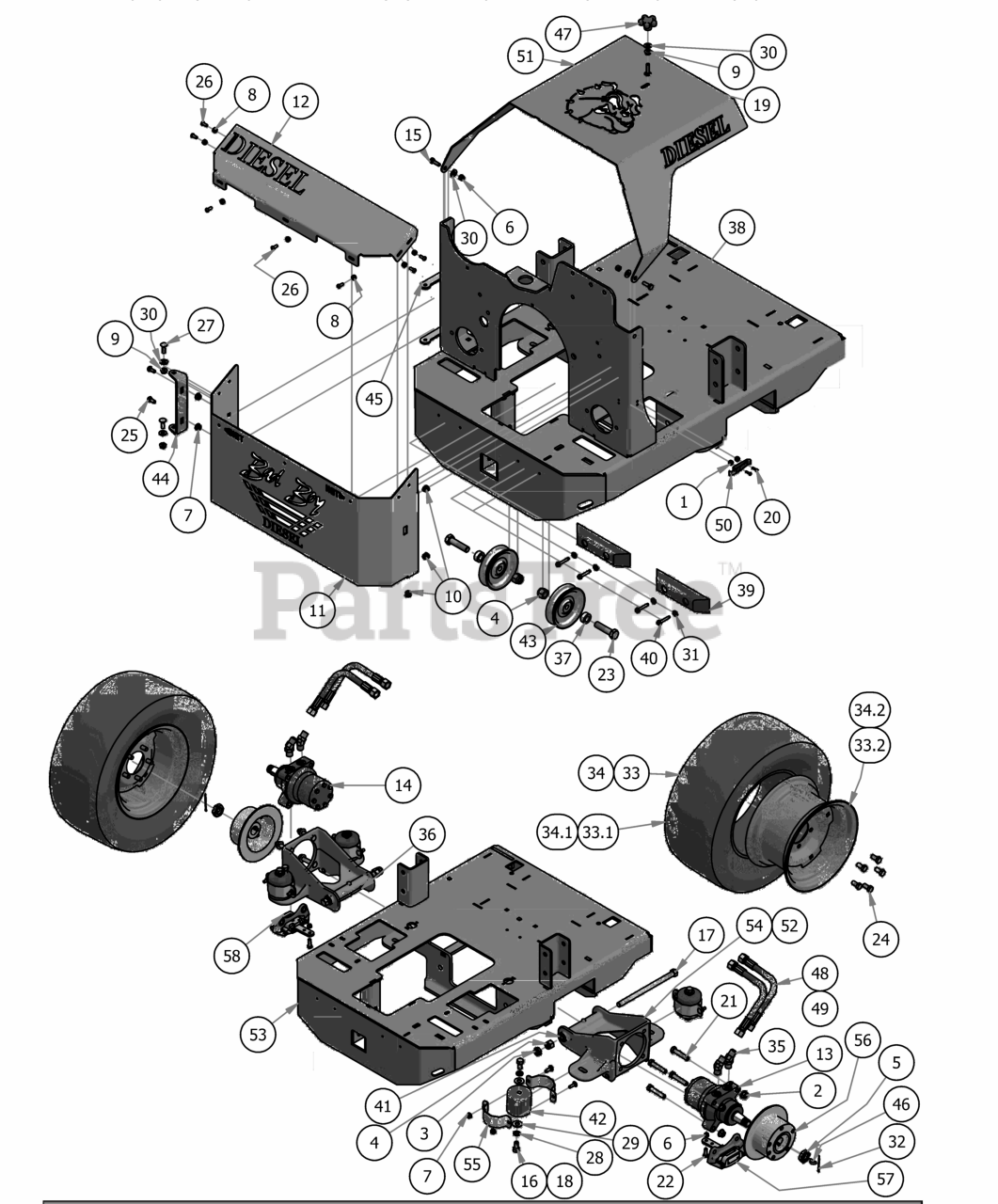

1500CC DIESEL BACK PUMP COVER Parts Diagram

  • Title

1

Bad Boy 013-5019-00

10-24 Nylock Locknut

$0.99

$

In Stock, only 2 left!

0

2

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

3

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, Qty 6

0

4

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

5

Bad Boy 013-7050-00

1" Castle Nut for Wheel Motor

$19.99

$

Usually ships in 4-7 days

0

6

Bad Boy 013-8047-00

5/16-18 Nylock Insert Locknut

$0.99

$

In Stock, only 4 left!

0

7

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

8

Bad Boy 013-8073-00

1/4 Nylock Nut

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

10

Bad Boy 014-3010-00

5/8 Round Insert

$1.99

$

Usually ships in 4-7 days

0

11

Bad Boy 014-5920-00

Diesel Back Pump Cover 2008 Bottom

$45.99

$

Usually ships in 4-7 days

0

12

Bad Boy 014-5921-00

Diesel Back Pump Cover 2008 Top

$28.99

$

Usually ships in 4-7 days

0

13

Bad Boy 015-4600-00

18cc Parker Wheel Motor- Right

$683.99

$

Usually ships in 4-7 days

0

14

Bad Boy 015-4601-00

18cc Parker Wheel Motor- Left

$683.99

$

Usually ships in 4-7 days

0

15

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 1 left!

0

16

Bad Boy 018-2030-00

1/2" x 1" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

17

Bad Boy 018-2051-00

5/8''x10'' Hex Bolt (Grade8)

$16.99

$

Usually ships in 4-7 days

0

18

Bad Boy 018-2080-00

1/2-13 1-1/4 Hex bolt Only On 60" Suspension Kit Wheel Motor

$1.99

$

Usually ships in 4-7 days

0

19

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

20

Bad Boy 018-5200-00

10-24 X 5/8 BS Button Head Bolt

$0.99

$

In Stock, Qty 5

0

21

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, only 4 left!

0

22

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

23

Bad Boy 018-6059-00

5/8" x 2 1/2" Grade 5 Hex Bolt (Coarse)

$2.99

$

In Stock, only 2 left!

0

24

Bad Boy 018-7033-00

1/2" x 1" Hex Bolt

$2.49

$

In Stock, Qty 20+

0

25

Bad Boy 018-8062-00

5/16-18x3/4 carriage bolt

$0.99

$

Usually ships in 4-7 days

0

26

Bad Boy 018-8064-00

1/4" x 5/8" BS C/S 18-8 SS

$0.99

$

Usually ships in 4-7 days

0

27

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, Qty 7

0

28

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 20+

0

29

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

Usually ships in 4-7 days

0

30

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

0

31

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 7

0

32

Bad Boy 020-7022-00

1/8x2-1/4 cotter pin Zinc

$0.99

$

In Stock, only 2 left!

0

33

Bad Boy 022-7031-00

26 x 12.00 - 12 Tire and Orange Wheel Assembly

$453.99

$

Usually ships in 4-7 days

0

34

Bad Boy 022-7035-00

26x12-12 Reaper Tire & Wheel Assembly for Diesels

$414.99

$

Usually ships in 4-7 days

0

35

Bad Boy 024-2050-00

45 Degree Wheel Motor Fitting -6802-10-10

$18.99

$

Usually ships in 4-7 days

0

36

Bad Boy 024-6034-00

1/4" Drive in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

37

Bad Boy 025-7020-00

5/8" x 1/" Collar W/One Set Screw

$4.99

$

In Stock, only 2 left!

0

38

Bad Boy 026-8030-00

Pump Plate Diesel

$113.99

$

Usually ships in 0 days

0

39

Bad Boy 029-7038-00

8" Rubber Bumper

$30.99

$

Usually ships in 4-7 days

0

40

Bad Boy 030-7039-00

1/4" x 1 1/2" Self Tapping Screw

$0.99

$

Usually ships in 4-7 days

0

41

Bad Boy 032-6033-00

Brass Bushing

$3.99

$

In Stock, only 3 left!

0

42

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

$

In Stock, only 2 left!

0

43

Bad Boy 033-7025-00

5 V Idler Pulley - BCVI- 81

$30.99

$

In Stock, Qty 8

0

44

Bad Boy 039-0070-00

Back Cover Hinge Bracket

$15.99

$

Usually ships in 4-7 days

0

45

Bad Boy 039-0072-00

Diesel Hinge Tab

$

$

Currently unavailable

46

Bad Boy 042-7041-00

Woodruff Key

$15.99

$

In Stock, Qty 5

0

47

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 18

0

48

Bad Boy 051-2080-00

26" Hose Assembly with Adaptors

$166.99

$

Usually ships in 4-7 days

0

49

Bad Boy 051-6085-00

26" Hose Only

$43.99

$

Usually ships in 4-7 days

0

50

Bad Boy 052-3000-00

Steel Pump Cover Latch

$31.99

$

Usually ships in 4-7 days

0

51

Bad Boy 059-8010-00

Diesel Hood 4 Cyl

$

$

Not available

52

Bad Boy 070-8001-00

72 Suspension Kit Wheel Motor

$302.99

$

Usually ships in 4-7 days

0

53

Bad Boy 070-5570-00

Outlaw Diesel Frame 2012

$

$

Currently unavailable

54

Bad Boy 070-8000-00

60 Suspension kit Wheel Motor

$332.99

$

Usually ships in 4-7 days

0

55

Bad Boy 072-1000-00

Isolator Band Clamp

$7.99

$

In Stock, only 2 left!

0

56

Bad Boy 092-5201-00

Brake Disk

$136.99

$

In Stock, Qty 6

0

57

Bad Boy 092-7000-00

XP/AOS Right Brake Caliper

$105.99

$

In Stock, only 2 left!

0

58

Bad Boy 092-7001-00

XP/AOS Left Brake Caliper

$105.99

$

In Stock, only 2 left!

0

33.1

Bad Boy 022-7032-00

26 x 12.00 - 12 Tire

$319.99

$

Usually ships in 4-7 days

0

33.2

Bad Boy 022-7034-00

12 x 10.5 Wheel AOS Rear

$216.99

$

Usually ships in 4-7 days

0

34.1

Bad Boy 022-4085-00

2019 26x12-12 Reaper Turf Tire

$250.99

$

In Stock, only 4 left!

0

34.2

Bad Boy 022-7034-00

12 x 10.5 Wheel AOS Rear

$216.99

$

Usually ships in 4-7 days

0
