Diesel 1500cc - Bad Boy Zero-Turn Mower (2019) 1500CC DIESEL 61" DECK Parts Diagram

Zero-Turn Mower

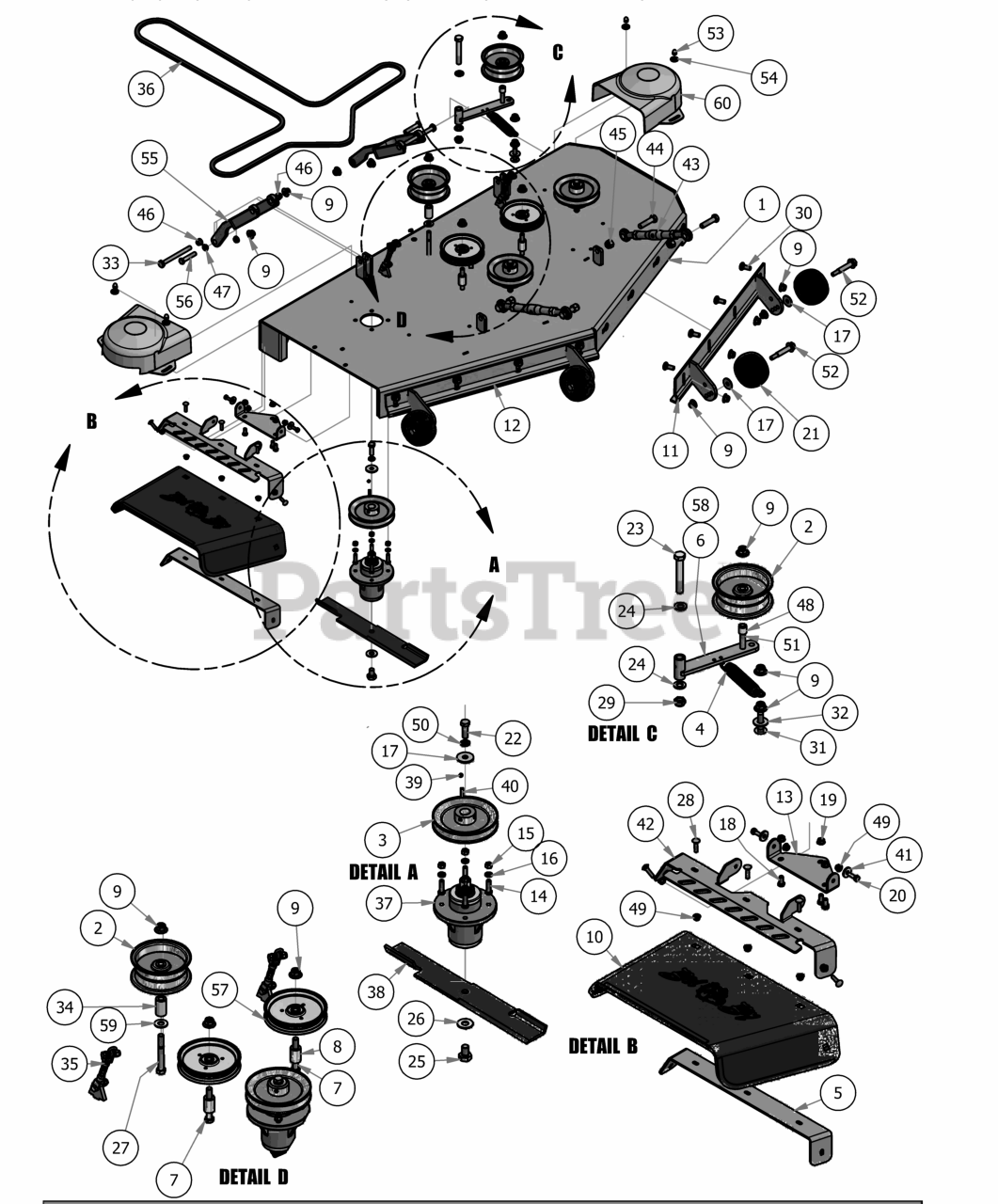

1500CC DIESEL 61" DECK Parts Diagram

  • Title

1

Bad Boy 060-6130-00

61" AOS Deck

$

$

Currently unavailable

2

Bad Boy 033-5000-00

5 3/4" Deck Idler Pulley

$60.99

$

In Stock, Qty 5

0

3

Bad Boy 033-6004-00

6 1/4" Drive Pulley

$37.99

$

In Stock, Qty 20+

0

4

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

5

Bad Boy 039-4863-00

60" Discharge Lower Bracket

$34.99

$

Usually ships in 4-7 days

0

6

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 3 left!

0

7

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, Qty 6

0

8

Bad Boy 025-5338-00

Idler Pulley Standoff

$3.99

$

In Stock, Qty 6

0

9

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flange Nut

$1.99

$

In Stock, Qty 20+

0

10

Bad Boy 210-6005-00

Rubber Discharge Chute

$63.99

$

In Stock, Qty 7

0

11

Bad Boy 060-6220-00

61 Outlaw Adjustable Deck Front (Left)

$75.99

$

Usually ships in 4-7 days

0

12

Bad Boy 060-6210-00

61 Outlaw Adjustable Deck Front (Right)

$75.99

$

Usually ships in 4-7 days

0

13

Bad Boy 206-6017-00

Discharge Chute Hanger (deck mounted)

$41.99

$

In Stock, only 2 left!

0

14

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 17

0

15

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

16

Bad Boy 019-5037-00

3/8 Lockwasher Zinc

$0.99

$

In Stock, Qty 8

0

17

Bad Boy 019-6020-00

1/2" Belleville Washer

$5.49

$

In Stock, Qty 20+

0

18

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

19

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

20

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 022-1000-00

Anti-Scalp Roller

$18.99

$

In Stock, Qty 20+

0

22

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 20+

0

23

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, Qty 8

0

24

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, Qty 20+

0

25

Bad Boy 018-6020-00

5/8" x 1 1/2" Grade 8 Hex Bolt (Fine)

$2.99

$

In Stock, Qty 20+

0

26

Bad Boy 019-5038-00

5/8'' Flat Washer

$1.99

$

In Stock, Qty 20+

0

27

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, Qty 6

0

28

Bad Boy 018-4703-00

5/16" x 1 1/4" Carriage Bolt

$0.99

$

In Stock, only 3 left!

0

29

Bad Boy 013-5301-00

5/8-11 Nylon Insert Jam Half Nut

$0.99

$

In Stock, Qty 6

0

30

Bad Boy 018-3003-00

1/2" x 1 1/4 Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

31

Bad Boy 018-1050-00

1/2 x 2" Carriage Bolt

$1.99

$

In Stock, only 2 left!

0

32

Bad Boy 019-0007-00

.517 Square Hole Round Washer

$1.49

$

In Stock, only 2 left!

0

33

Bad Boy 018-1090-00

1/2" x 5 1/2" Bolt

$3.49

$

Usually ships in 4-7 days

0

34

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

35

Bad Boy 047-4000-00

4 - Link Adjustable Deck Hange

$

$

Not available

36

Bad Boy 041-0236-00

B236 Belt - Diesel EZ Ride

$125.99

$

In Stock, only 2 left!

0

37

Bad Boy 037-4000-50

Double Bearing Spindle

$

$

Not available

38

Bad Boy 038-6080-00

61 inch Fusion Blade

$24.99

$

In Stock, Qty 20+

0

39

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

40

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 20+

0

41

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

0

42

Bad Boy 039-4864-00

60" Discharge Chute Upper Hanger

$45.99

$

Usually ships in 4-7 days

0

43

Bad Boy 048-6056-00

Turnbuckle (Top Link)

$56.99

$

Usually ships in 4-7 days

0

44

Bad Boy 018-6059-00

5/8" x 2 1/2" Grade 5 Hex Bolt (Coarse)

$2.99

$

In Stock, only 2 left!

0

45

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

46

Bad Boy 032-5056-00

Flange Bushing For Upper Deck Arm

$6.49

$

In Stock, only 3 left!

0

47

Bad Boy 032-5057-00

Flange Bushing For Lower Deck Arm

$10.99

$

In Stock, only 3 left!

0

48

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3\4 Length

$3.49

$

In Stock, Qty 15

0

49

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

50

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 20+

0

51

Bad Boy 018-7016-00

1/2-13 x GR 5 Hex Bolt Zinc

$1.99

$

Usually ships in 4-7 days

0

52

Bad Boy 018-0010-00

Deck Wheel Bolt

$6.99

$

In Stock, Qty 20+

0

53

Bad Boy 013-0004-00

Acorn nut-pulley Cover

$3.49

$

In Stock, Qty 8

0

54

Bad Boy 019-6050-00

.360 ID Plastic Washer-Black

$0.99

$

In Stock, Qty 6

0

55

Bad Boy 031-6020-00

Deck Arm Assembly

$151.99

$

Usually ships in 4-7 days

0

56

Bad Boy 018-0015-00

1/2" x 3" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

57

Bad Boy 033-7201-25

5-3/4 Idler Pulley-Capitol Stampings

$37.99

$

In Stock, Qty 20+

0

58

Bad Boy 039-6945-98

Deck Idler Assembly-parts of Assembly 2,6,9,49,52

$83.99

$

Usually ships in 4-7 days

0

59

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0

60

Bad Boy 014-5000-00

2014 ZT Pulley Cover

$16.99

$

In Stock, only 3 left!

0
