DHCS-3400 - Echo Hedge Trimmer, Battery (SN: E81300001001 - E81300999999) Control Handle Parts Diagram

Hedge Trimmer, Battery

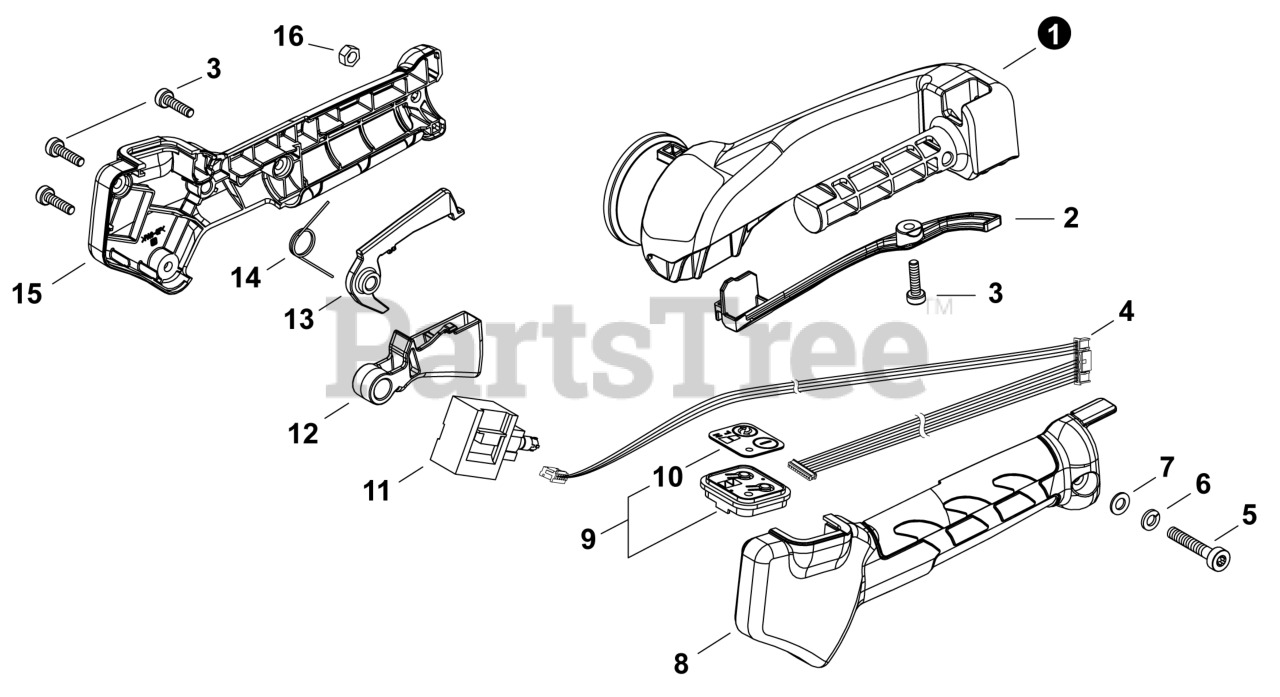

Control Handle Parts Diagram

  • Title

1

Echo C410001590

SUPPORT, HANDLE

$

$

Currently unavailable

2

Echo C138000080

COVER, HARNESS

$

$

Currently unavailable

3

Echo V804000170

BOLT, TORX 4x16

$0.99

$

Usually ships in 2-4 days

0

4

Echo C130001290

HARNESS, WIRE - SWITCH

$

$

Currently unavailable

5

Echo V805000180

BOLT, TORX 5x30

$1.49

$

In Stock, Qty 5

0

6

Echo 90060500005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

7

Echo 90060200005

WASHER 5.3x10x1
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

8

Echo C412000800

GRIP, HANDLE - LEFT

$

$

Currently unavailable

9

Echo A047000630

SWITCH ASSY, ON-OFF

Note: Includes Item 10

$

$

Currently unavailable

10

Echo X510001400

LABEL - SWITCH

$

$

Currently unavailable

11

Echo G334001830

SWITCH, SPEED CONTROL

$54.99

$

Usually ships in 2-4 days

0

12

Echo J361000880

TRIGGER, THROTTLE

$

$

Currently unavailable

13

Echo C490000090

LOCKOUT, THROTTLE

$

$

Currently unavailable

14

Echo V452002110

SPRING, TORSION

$

$

Currently unavailable

15

Echo C412000790

GRIP, HANDLE - RIGHT

$

$

Currently unavailable

16

Echo 90056200005

NUT, LOCK M5

$1.49

$

In Stock, only 2 left!

0
