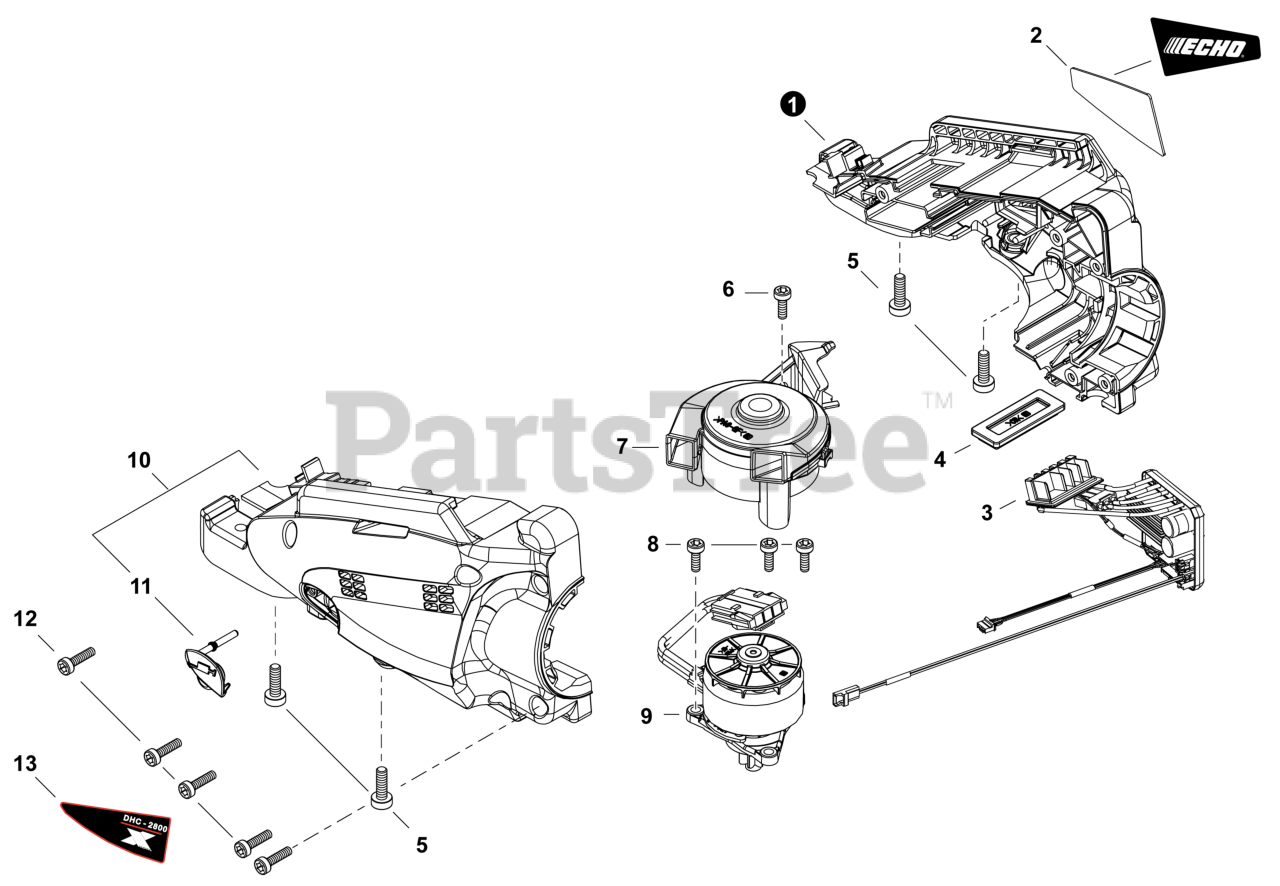

DHC-2800 - Echo Hedge Trimmer, Battery (SN: E81100001001 - E81100999999) Motor Parts Diagram

Hedge Trimmer, Battery

Motor Parts Diagram

  • Title

1

Echo A539000540

COVER, MOTOR - RIGHT

$

$

Currently unavailable

2

Echo X502001340

LABEL - ECHO

$

$

Currently unavailable

3

Echo A047000640

CONTROL BOARD ASSY

$

$

Currently unavailable

4

Echo V420005780

CUSHION

$

$

Currently unavailable

5

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

6

Echo V804000050

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 20+

0

7

Echo P100013060

CASE ASSY, FAN

$

$

Currently unavailable

8

Echo V804000050

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 20+

0

9

Echo A054000370

MOTOR ASSY

$

$

Currently unavailable

10

Echo P100013460

COVER ASSY, MOTOR - LEFT

Note: Includes Item 11

$

$

Currently unavailable

11

Echo X638000010

CAP, CUP GREASE

$

$

Currently unavailable

12

Echo V804000170

BOLT, TORX 4x16

$0.99

$

Usually ships in 2-4 days

0

13

Echo X543006260

LABEL - MODEL DHC-2800

$

$

Currently unavailable
