DH 254 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T11913001001 - T11913999999) Gear Case Parts Diagram

Hedge Trimmer, Dual-Sided

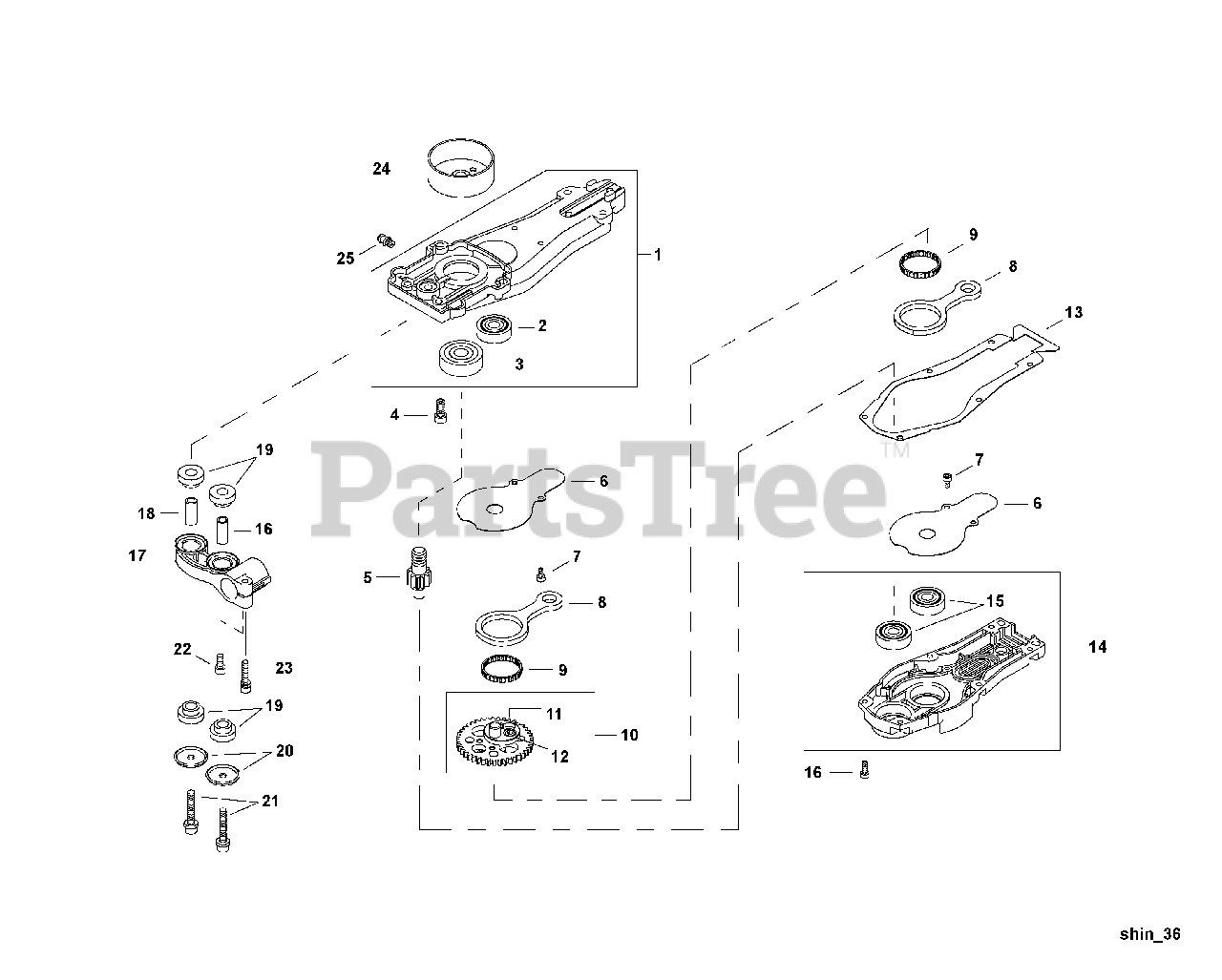

Gear Case Parts Diagram

  • Title

1

Echo P021028700

GEAR CASE ASSY

Note: INCLUDES ITEMS 2-3

$103.99

$

Usually ships in 2-4 days

0

2

Echo 9404506200

BEARING, BALL - 6200ZZ

$10.99

$

Usually ships in 2-4 days

0

3

Echo 9400206301

BEARING, BALL - 6301DDU

$13.99

$

Usually ships in 2-4 days

0

4

Echo 90010506016

SCREW - 6X16

$0.99

$

In Stock, Qty 10

0

5

Echo V655000030

GEAR - PINION

$29.99

$

Usually ships in 2-4 days

0

6

Echo C603000250

PLATE, GEAR CASE

$4.99

$

In Stock, only 1 left!

0

7

Echo 90010504008

SCREW - 4X8

$0.99

$

In Stock, Qty 6

0

8

Echo C532000200

ROD, CONNECTING

$36.99

$

In Stock, only 2 left!

0

9

Echo V572000000

BEARING, NEEDLE - 30

$15.99

$

In Stock, only 2 left!

0

10

Echo V060000060

CAM GEAR ASSY

Note: Includes ITEMS 11-12

$80.99

$

Usually ships in 2-4 days

0

11

Echo V203001030

SCREW - 5X6

$0.99

$

In Stock, Qty 16

0

12

Echo C533000130

CAM

$22.99

$

Usually ships in 2-4 days

0

13

Echo V110000100

GASKET, GEAR CASE

$4.49

$

Usually ships in 2-4 days

0

14

Echo P021028710

GEAR CASE COVER ASSY

Note: Includes ITEM 15

$64.99

$

In Stock, only 1 left!

0

15

Echo 9404506200

BEARING, BALL - 6200ZZ

$10.99

$

Usually ships in 2-4 days

0

16

Echo 90010504014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

17

Echo C415000080

MOUNT, HANDLE

$16.99

$

In Stock, only 1 left!

0

18

Echo V354000300

COLLAR - 6

$1.99

$

In Stock, Qty 6

0

19

Echo V420002580

CUSHION

$0.99

$

In Stock, only 2 left!

0

20

Echo V304000220

WASHER - CUP

$1.99

$

In Stock, only 3 left!

0

21

Echo V204000530

SCREW - 6X35
(Superseded to 9112206035)

$1.99

$

In Stock, only 3 left!

0

22

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

23

Echo V203000560

SCREW - 5X25

$1.99

$

In Stock, only 2 left!

0

24

Echo A556000930

DRUM, CLUTCH

$21.99

$

Usually ships in 2-4 days

0

25

Echo V187000080

FITTING, GREASE

$1.99

$

In Stock, Qty 11

0
